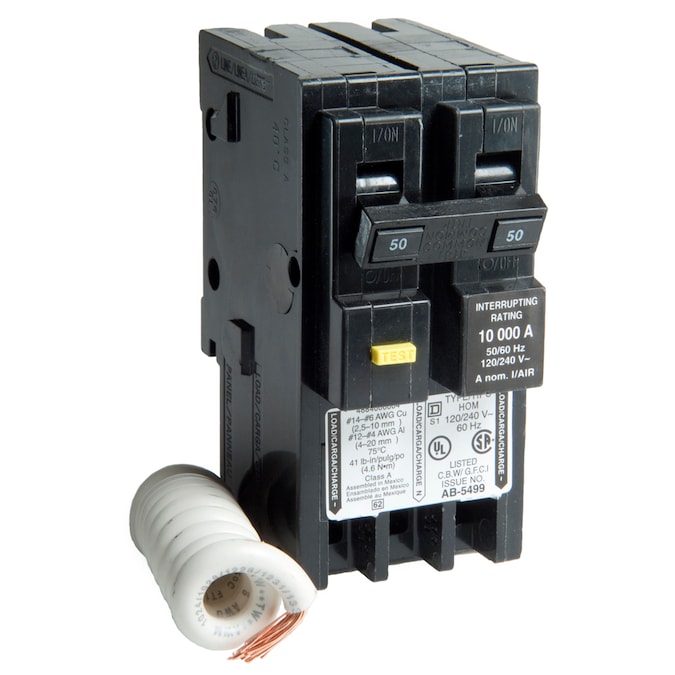

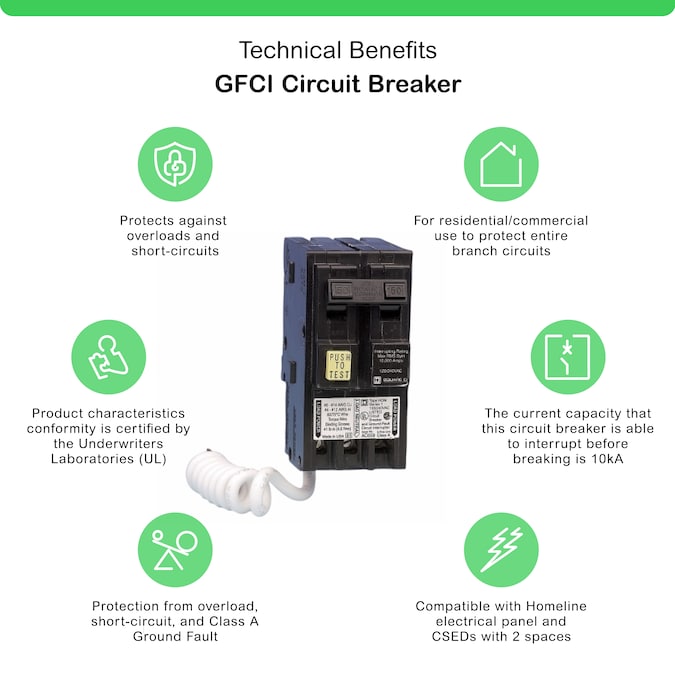

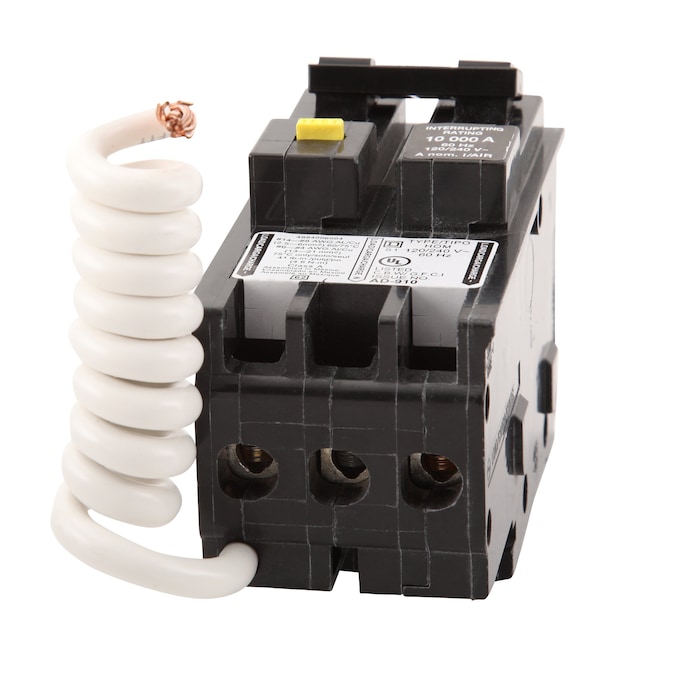

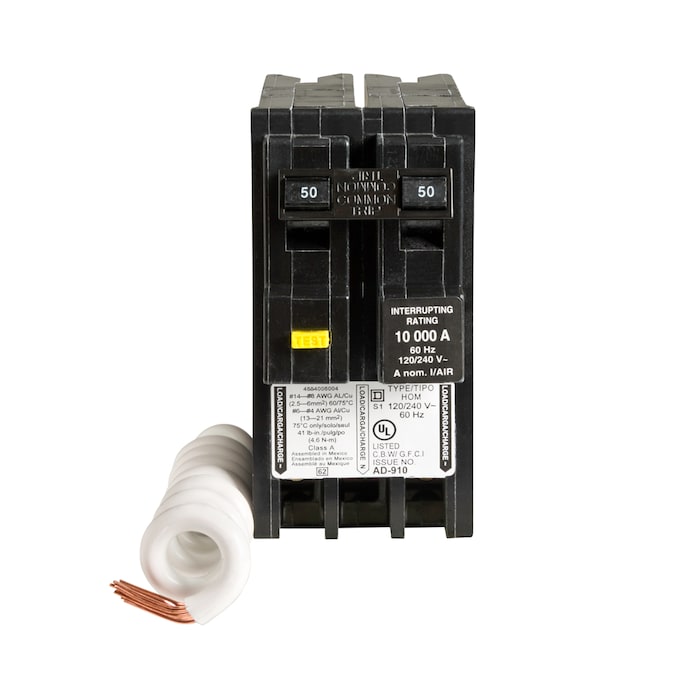

The Square D by Schneider Electric Homeline 50 Amp Two-Pole GFCI circuit breaker is designed for overload and short-circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more. This breaker is compatible with Square D Homeline load centers and CSED devices. The ANSI-certified and UL-Listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
- Square D breaker protects from overload, short-circuit, and GF
- Protects from potential shock hazards in wet locations
- Compatible with Homeline electrical panel and CSEDs with 2 spaces
- Square D Homeline 50 Amp two-pole GFCI circuit breaker
- Plug-on design, easy to install
- Compatible with Square D Homeline breaker boxes and CSED devices with 2 spaces
- For installation in 120/240-Volt AC systems
- 10,000 AIR
- ANSI certified and UL Listed
General
- Series Name: Homeline
- Type: GFCI
Dimensions
- Power Capacity: 50-amp

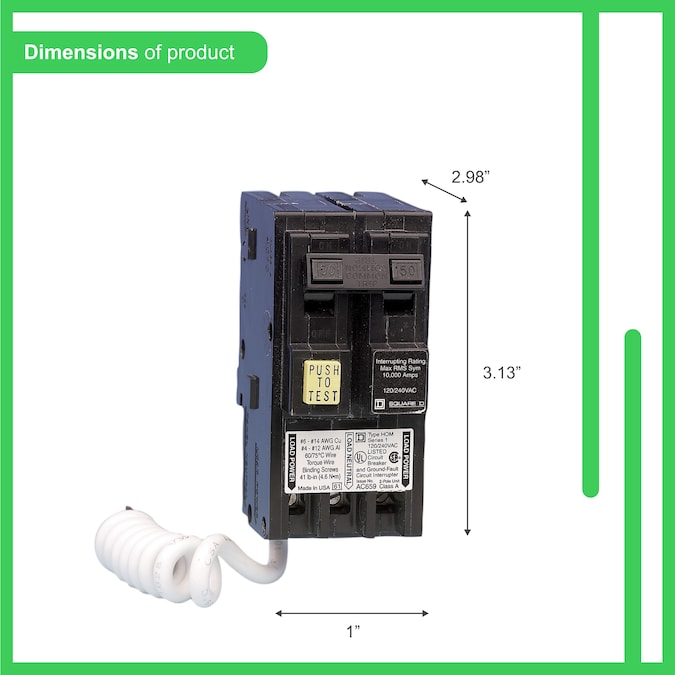

- Width Measurement: 2-in
Features
- Circuit Breaker Voltage: 240
- Ground Fault Protection: No self test
- Interrupting Amp Listing (Amps): 10000
- Number of Poles: 2
- Phase: Single phase (120/240)
- Plug-On Neutral: No
- Surge Protection: No
Warranty
- Warranty: 1-year limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121600
