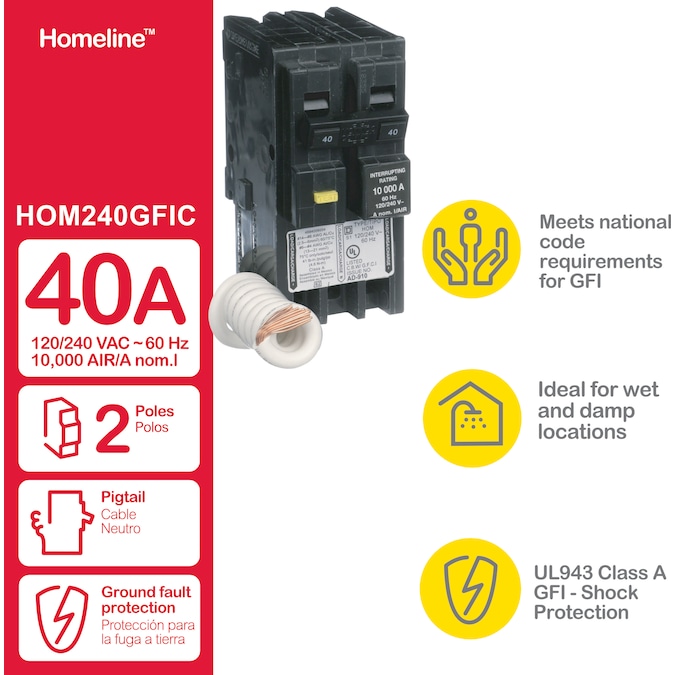

Square D Homeline 40-amp 2-Pole GFCI Circuit Breaker

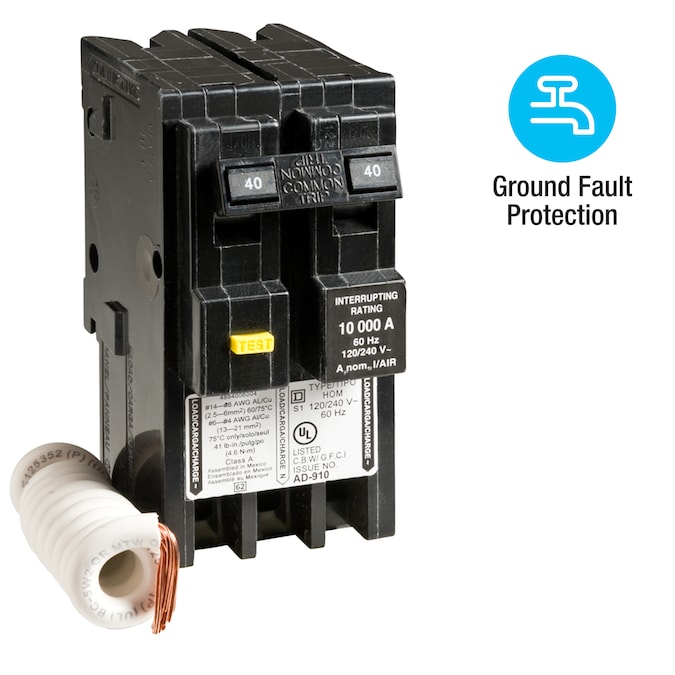

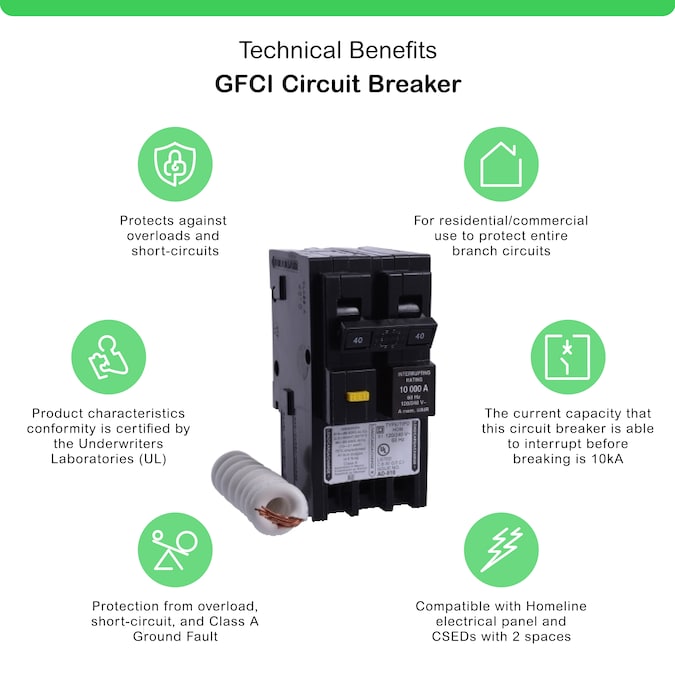

• Square D breaker protects from overload, short-circuit, and GF
• Protects from potential shock hazards in wet locations
• Compatible with Homeline electrical panel and CSEDs with 2 spaces
• Use for protection of entire branch circuits where damp location shock hazards may exist
• When a Homeline circuit breaker trips, the handle snaps to a midpoint position between “OFF” and “ON” to easily identify the tripped breaker
• Learn about general NEC 2020 updates, contact your local building inspector for adoptions and details

General

• Series Name: Homeline
• Type: GFCI

Dimensions

• Power Capacity: 40-amp

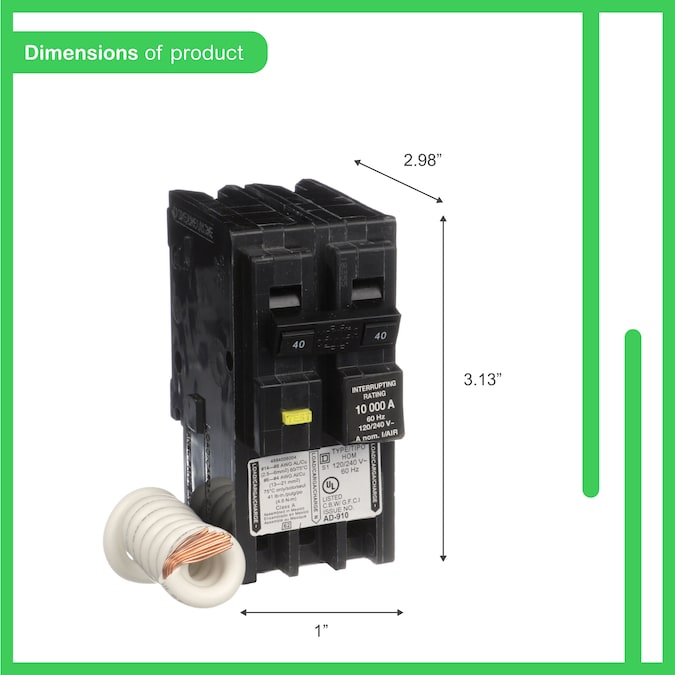

• Width Measurement: 2-in

Features

• Circuit Breaker Voltage: 120/240
• Ground Fault Protection: Self test
• Interrupting Amp Listing (Amps): 10000
• Number of Poles: 2
• Phase: Single phase (120/240)
• Plug-On Neutral: No
• Surge Protection: No
• Warranty: 1-year limited

Certifications

• CA Residents: Prop 65 Warning(s): No
• Safety Listing: UL safety listing

Miscellaneous

• UNSPSC: 39121600
