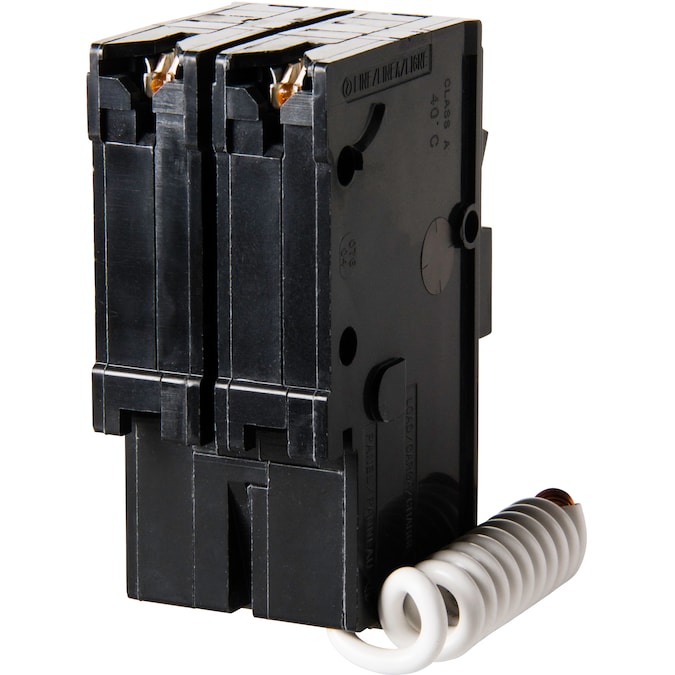

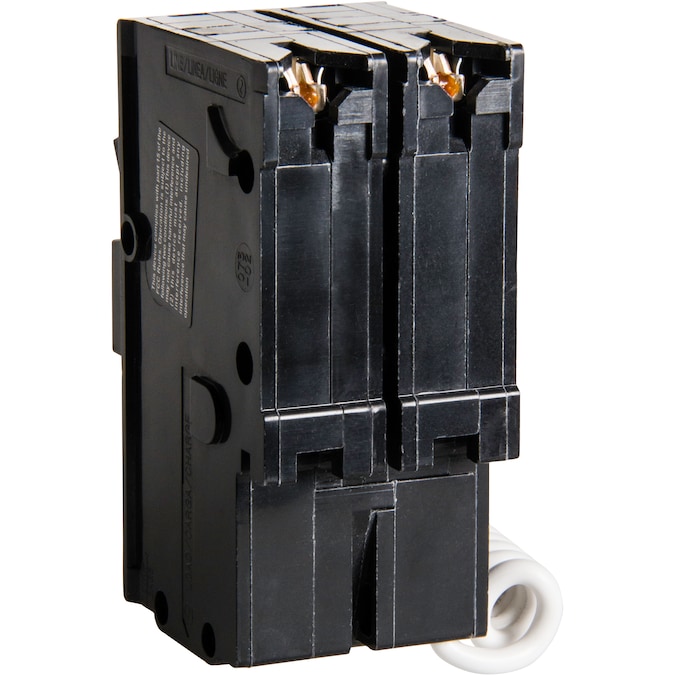

Square D Homeline 20-amp 2-Pole Main Circuit Breaker

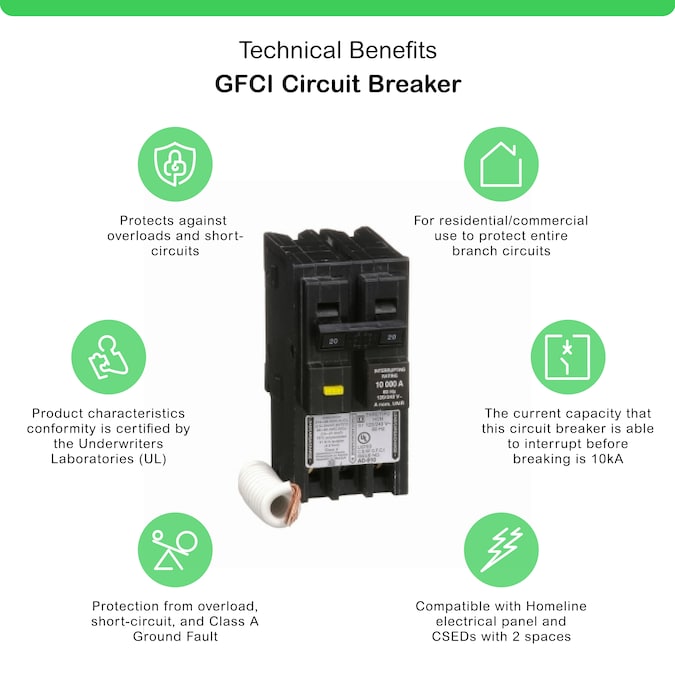

• Designed to protect against overload, short-circuits and class A ground fault
• Compatible with Homeline load centers and CSED devices
• Provides one double pole circuit in two spaces
• Use for protection of entire branch circuits where damp location shock hazards may exist
• When a Homeline circuit breaker trips, the handle snaps to a midpoint position between “OFF” and “ON” to easily identify the tripped breaker
• Learn about general NEC 2020 updates, contact your local building inspector for adoptions and details

General

• Series Name: Homeline
• Type: Main

Dimensions

• Power Capacity: 20-amp
• Width Measurement: 2-in

Features

• Circuit Breaker Voltage: 240
• Ground Fault Protection: No self test
• Interrupting Amp Listing (Amps): 10000
• Number of Poles: 2
• Phase: Single phase (120/240)
• Plug-On Neutral: No
• Surge Protection: No
• Warranty: 1-year limited

Certifications

• CA Residents: Prop 65 Warning(s): Yes
• Safety Listing: UL safety listing

Miscellaneous

• UNSPSC: 39121600
