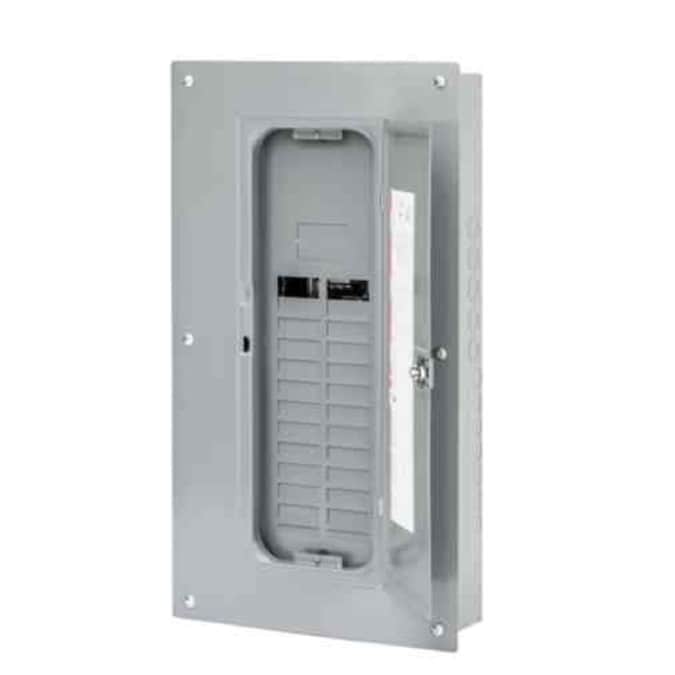

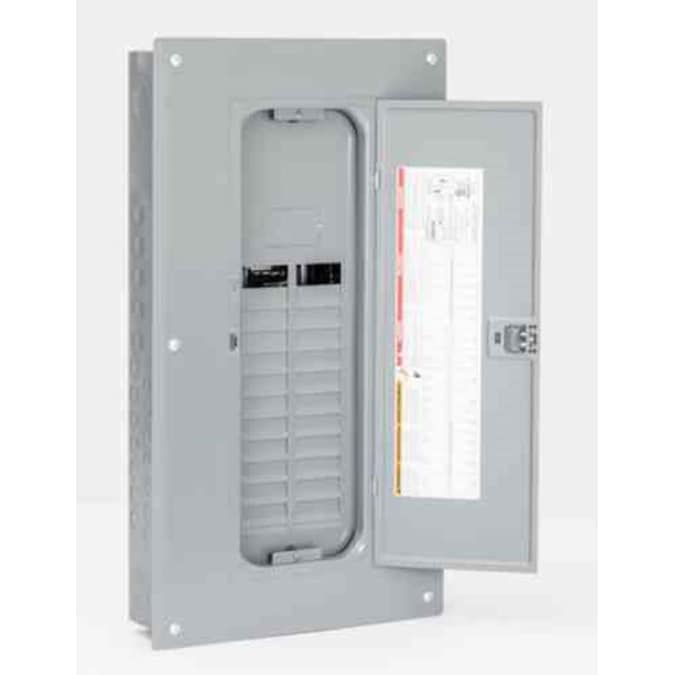

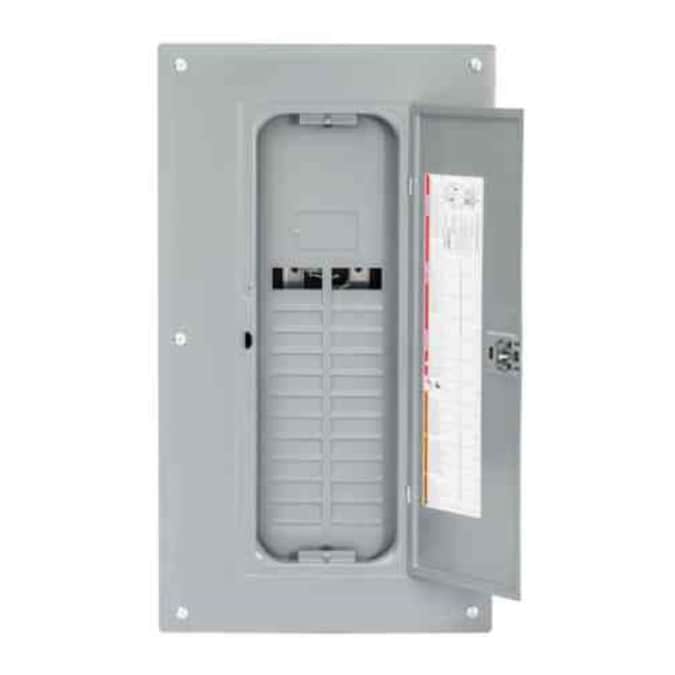

The Square D Homeline 125 Amp 24-Space 48-Circuit Indoor Convertible Main Lugs Load Center with cover for Plug-on Neutral breakers includes a ground bar and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

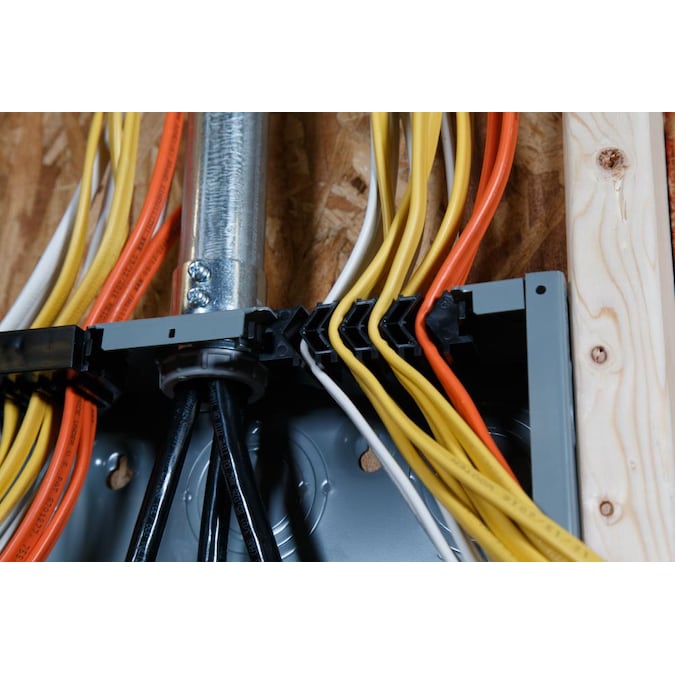

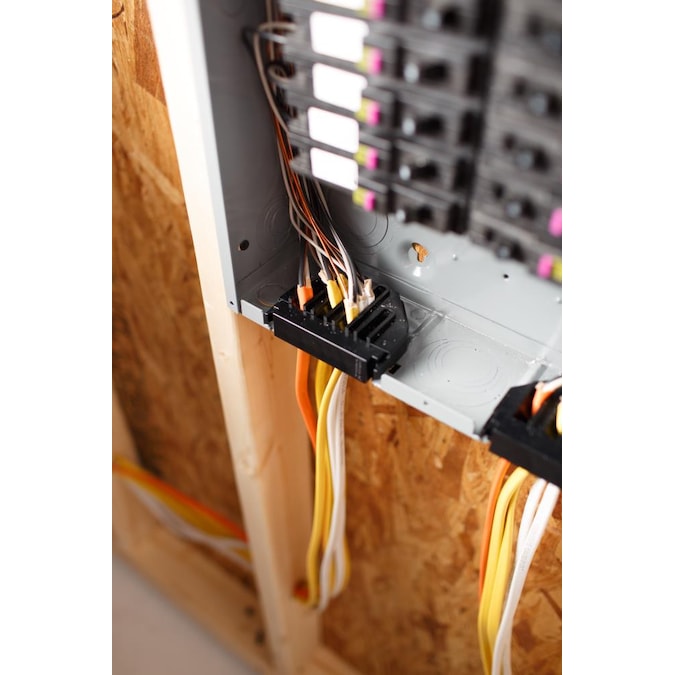

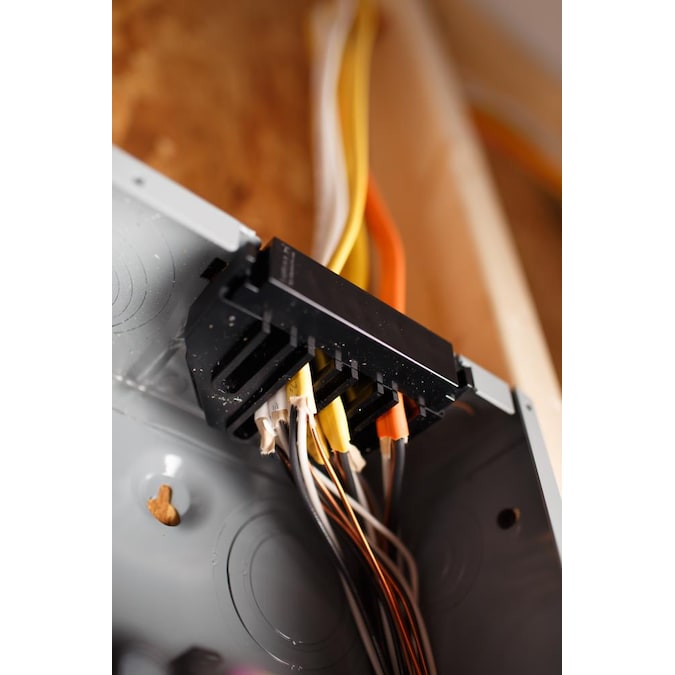

- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Ground bar and cover included

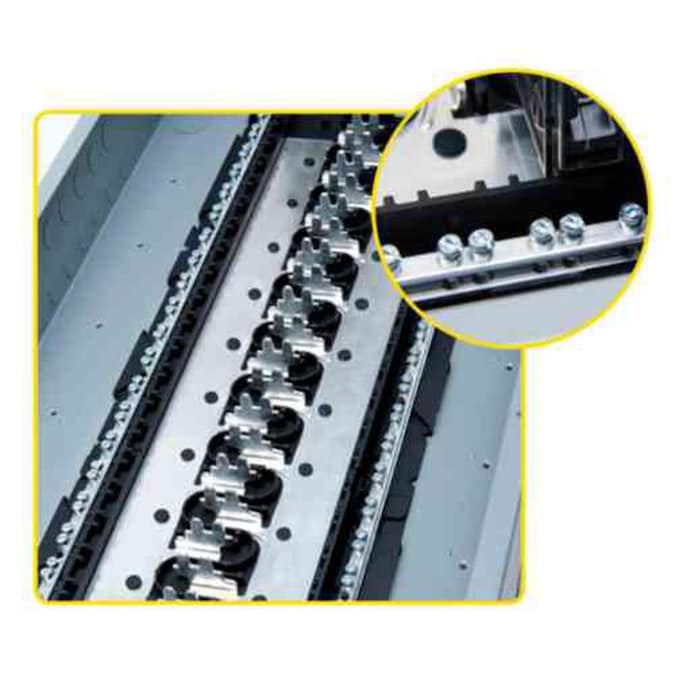

- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes a PK15GTAL ground bar, a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)

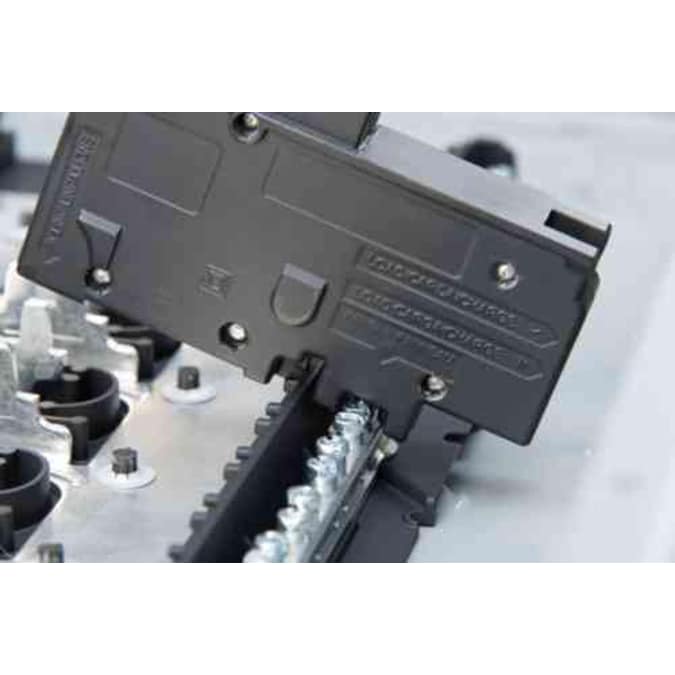

- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
General
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Main lug

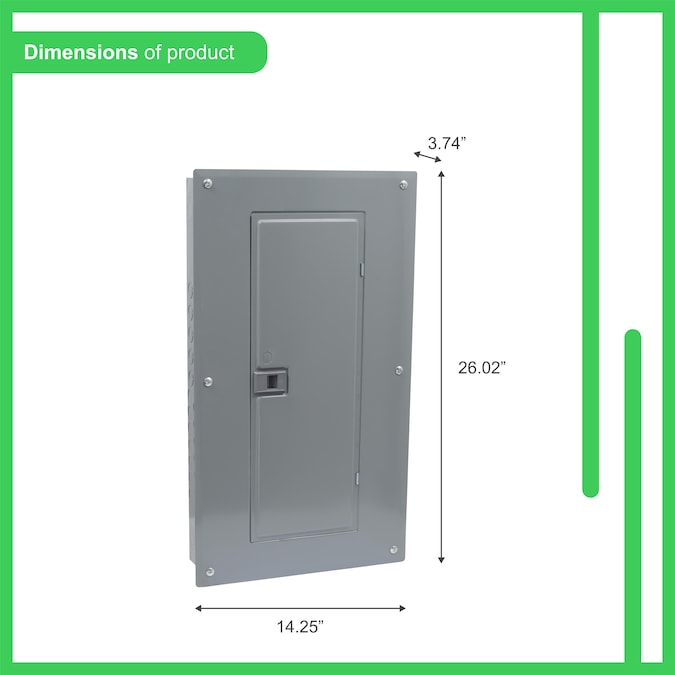

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 26.04
- Width (Inches): 14.25
Features

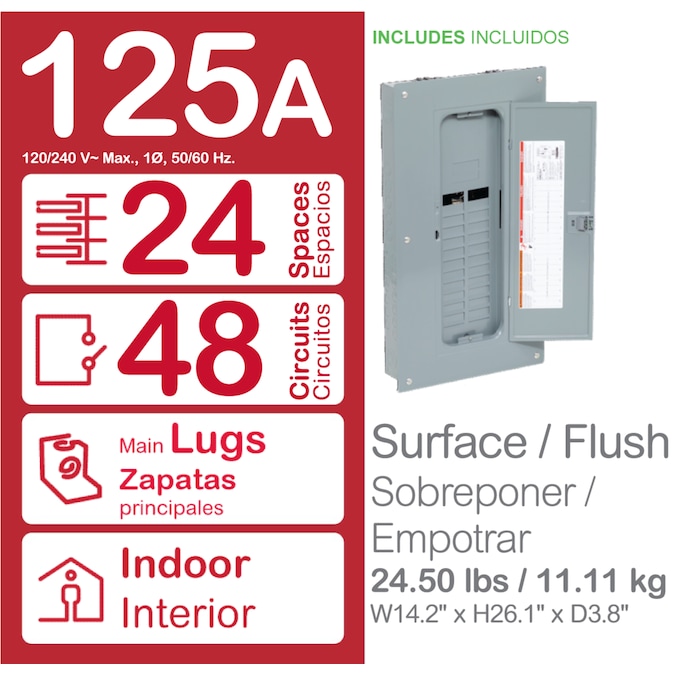

- Amperage: 125
- Buss Bar Construction: Aluminum and copper
- Circuits: 48
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: Yes
- Mounting Type: Combination
- Number of Spaces: 24
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: No
- Value Pack Contents: N/A
- Warranty: 18-month limited
Compatibility
- Brand/Model Compatibility: Square D Homeline Brand Only
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
