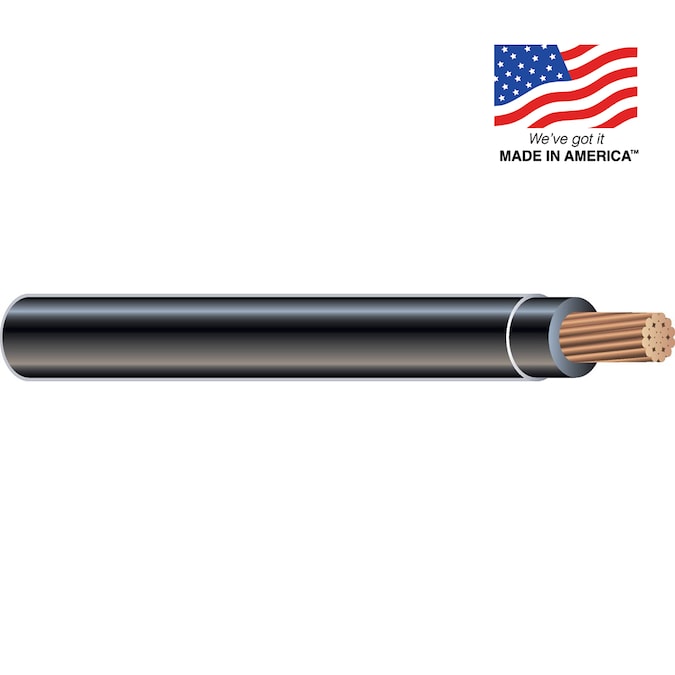

Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electric Code. Voltage for all applications is 600 Volt. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.
- Jacket is abrasion, heat, moisture, gasoline and oil resistant nylon
- THHN or T90 nylon- dry locations not to exceed 90°C
- THWN-2 – wet or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil
- MTW- wet locations or when exposed to oil at temperatures not to exceed 60°C or dry locations not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
- AWM dry locations not to exceed 105°C only when rated and used as appliance wiring material
- Made with soft drawn copper
- Voltage for all applications is 600 volts
- UL Listed
General
- Jacket Color: Black
- Series Name: SIMpull
- Sub-Brand: N/A
- Type: THHN wire
Dimensions
- Cable Length (Feet): 100
Features
- Commercial/Residential: Commercial/Residential
- Conductor Material: Copper
- Direct Burial: No
- Fire Resistant: No
- Insulation Material: PVC (polyvinyl chloride)
- Jacket Material: PVC (polyvinyl chloride),
- Maximum Amperage: 75
- Moisture Resistant: Yes
- Number of Strands: 19
- RoHs Compliant: Yes
- Shielded: No
- UV Resistant: No
- Voltage Rating: 600
- Warranty: 1-year limited
- Wire Cut Type: By-the-roll
- Wire Gauge: 6
- Wire Type: Stranded
Compatibility
- Conduit Compatible: Yes
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 60104900
