Due to the overall thickness of the shielded bulk cable, some standard RJ45 connectors will not fit properly with this cable. We recommend using our universal CAT 7/6A/6 shielded modular connectors (C20-088L7S-20) or purchase the bundle kit to ensure a correct termination for optimal signal performance

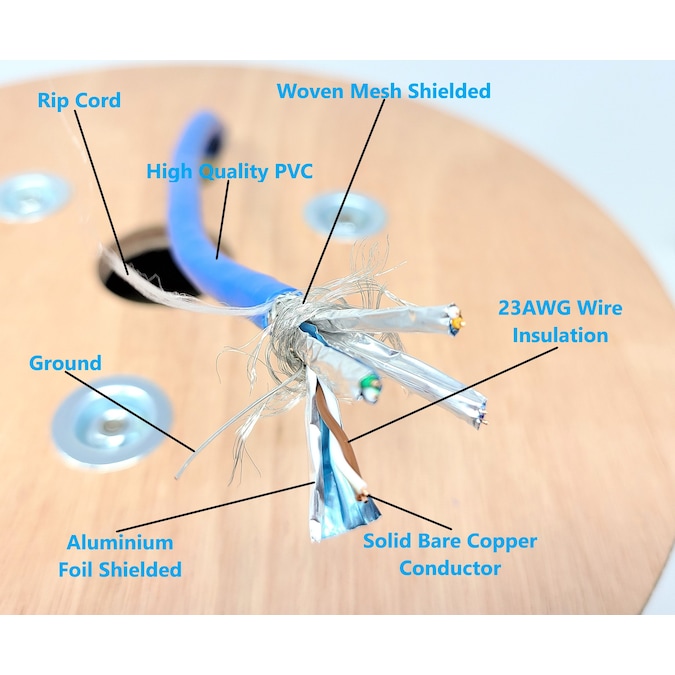

- S/FTP (Braided Shielded and Foiled Twisted Pair) shielding to reduce crosstalk, EMI and electrical interference
- CAT7 speeds up to 10Gbps and 600 MHz bandwidth to future proof your installation
- CMR In-Wall Riser rated cable jacket
- 23 AWG individual solid pure copper conductors
- Supports Power over Ethernet: PoE, PoE+, and PoE++
- Comes on a convenient wooden spool for easy access
- Running “FT” count printed on cable for easy measurement
- Meets ANSI/TIA-568-C specifications and UL, RoHS and TAA compliant
General
- Color/Finish Family: Blue
- Jacket Color: Blue
- Series Name: Shielded 23AWG
Dimensions
- Cable Length (Feet): 250
Features
- Cable Profile: Round
- Cable Type: CAT 7
- CM/CMR In-Wall Rated: Yes
- Commercial/Residential: Commercial/Residential
- Conductor Material: Copper
- Container Type: Bag
- Cord Rating: Riser
- Direct Burial: No
- Fire Resistant: No
- Jacket Material: PVC
- Maximum Amperage: N/A
- Moisture Resistant: No
- Number of Conductors: 8
- Number of Pairs: 4
- RoHs Compliant: Yes
- Shielded: Yes
- Stranded or Solid: Solid
- Use Location: Indoor
- UV Resistant: No
- Wire Cut Type: By-the-foot
- Wire Gauge: 23
Compatibility
- Conduit Compatible: No
Warranty
- Warranty: Lifetime
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: cUL safety listing
Miscellaneous
- UNSPSC: 39111600
