The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
- Indoor NEMA 1 enclosure
- Main lugs are factory installed; convertible to main breaker
- Use with equipment ground kits TGK24 and TGK32 (order separately)
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring
- Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
- 100% split neutral holes on each side are rated for #14-4 wire
- Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
General
- Manufacturer Color/Finish: Gray
- Series Name: PowerMark Gold
- Type: Convertible main lug

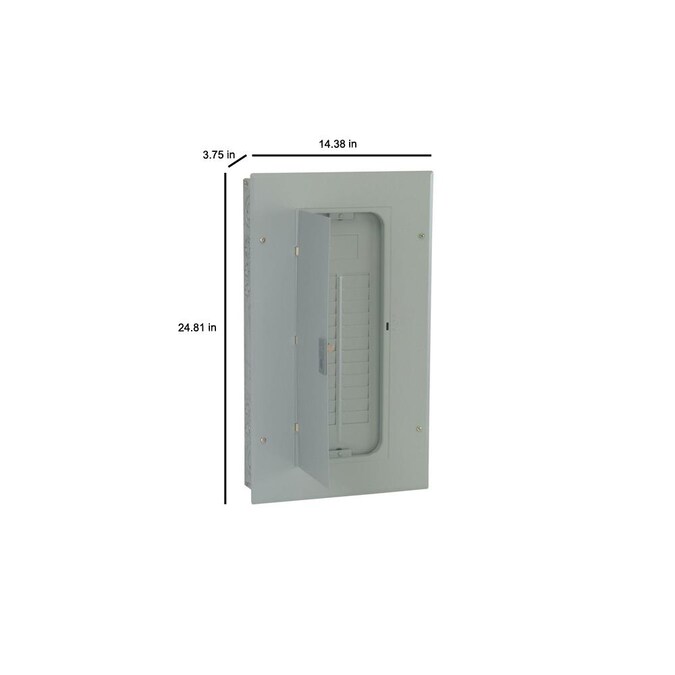

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 24.6875
- Width (Inches): 14
Features
- Amperage: 125
- Buss Bar Construction: Copper
- Circuits: 24
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Combination
- Number of Spaces: 24
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: No
- Value Pack Contents: N/A
- Warranty: 1-year limited
Compatibility
- Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
