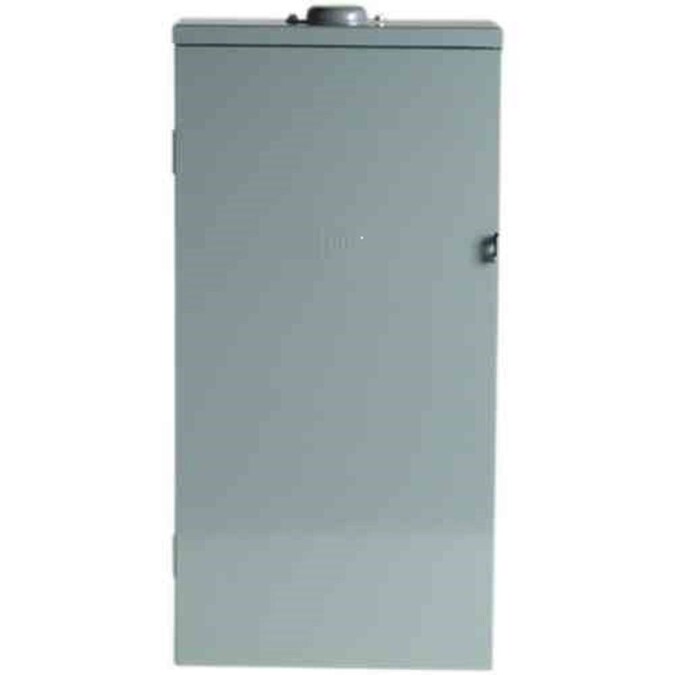

Eaton’s meter breakers combine a single meter socket and a main circuit breaker and/or loadcenter into one enclosure. Certain utilities will specify a meter breaker instead of a meter socket and loadcenter. The meter breaker is used where electricity enters a home or dwelling. The utility attaches a meter in the socket to measure power consumption. The loadcenter portion is used to distribute the power throughout the home using various circuits. Eaton offers a variety of designs to meet local utility specifications. UL listed.
- Type BR breaker box
- Uses Type BR circuit breakers
- Ring type meter socket
- Meets CEC and is Title 24 compliant
- EUSERC approved
General
- Manufacturer Color/Finish: Gray
- Series Name: Type BR
- Type: Main breaker meter combo
Dimensions
- Depth (Inches): 26.75
- Height (Inches): 6.75
- Width (Inches): 17.25
Features
- Amperage: 100
- Buss Bar Construction: Aluminum
- Circuits: 24
- Cover Included: Yes
- Feed-Through Lugs: Yes
- Ground Bar Installed: Yes
- Mounting Type: Flush
- Number of Spaces: 12
- Orientation: Side-by-side
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Outdoor
- Value Pack: No
- Value Pack Contents: N/A
- Warranty: 10-year limited
Compatibility
- Brand/Model Compatibility: Fits most
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
