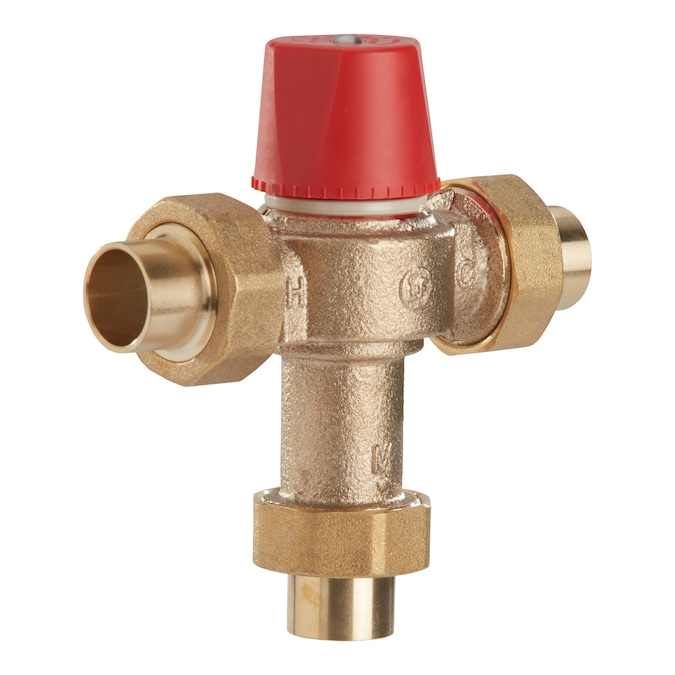

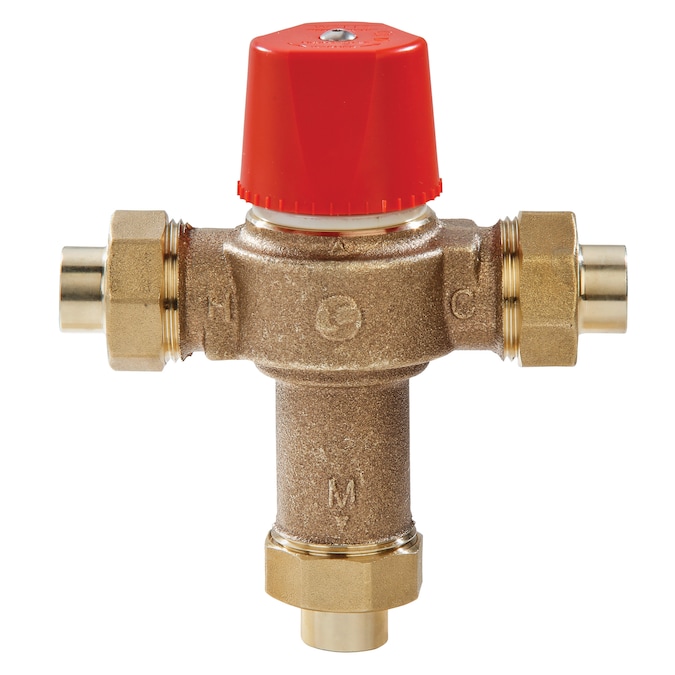

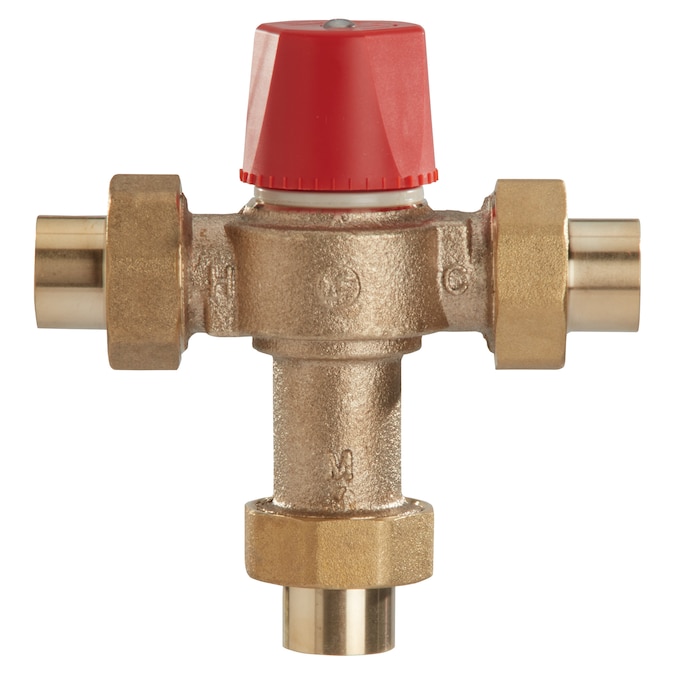

This 1/2 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 PSI (10.3 BAR).
- Lead free brass construction
- Thermal actuation technology for precise temperature control
- Integral filter washers and check valves
- CSA certified B125 and ASSE 1017, IAPMO and UPC listed
- Can be set to any temperature between 60°F and 120°F
- Flow rates as low as 0.5 GPM and as high as 23 GPM
- Incorporates integral check valves and filter washers in both the hot and cold water inlets to protect against cross flow
General
- Color/Finish Family: Copper
- Manufacturer Color/Finish: Copper
- Series Name: LF1170
- Type: Hydronic mixing valve
Features
- Warranty: 1-year limited
Compatibility
- Compatibility: Hot water
Certifications
- CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
- UNSPSC: 40101800
