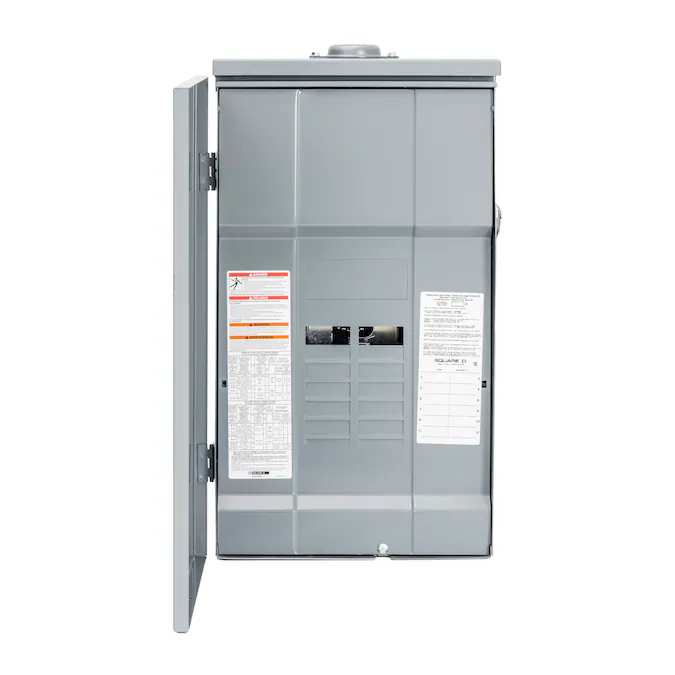

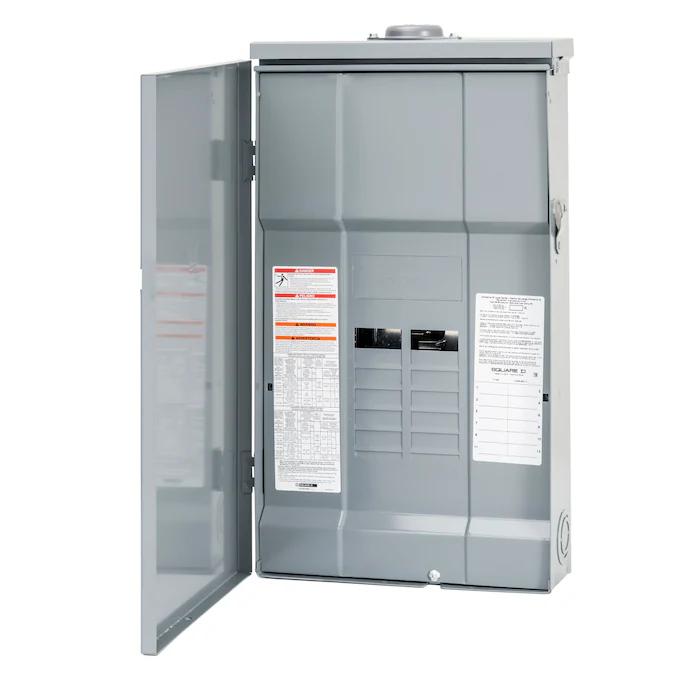

The Square D Homeline 225 Amp 12-Space 12-Circuit Outdoor Convertible Main Lugs Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Outdoor and aluminum bus bar included
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes a rainproof outdoor cover and is convertible to main breaker load center with a QOM2 main breaker (sold separately)
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Single phase
General
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Convertible main lug
Dimensions
- Depth (Inches): 4.52
- Height (Inches): 26.04
- Width (Inches): 14.75
Features
- Amperage: 225
- Buss Bar Construction: Aluminum
- Circuits: 12
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Surface
- Number of Spaces: 12
- Orientation: Over/Under
- Paintable: No
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Sub-panel
- Use Location: Outdoor
- Value Pack: No
- Value Pack Contents: Includes a rainproof outdoor cover
- Warranty: 18-month limited
Compatibility
- Brand/Model Compatibility: Square D Homeline Brand Only
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
