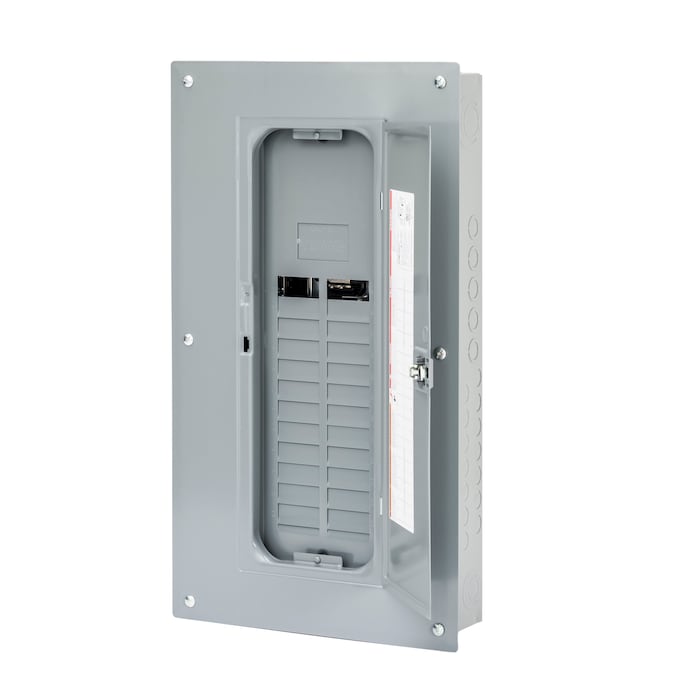

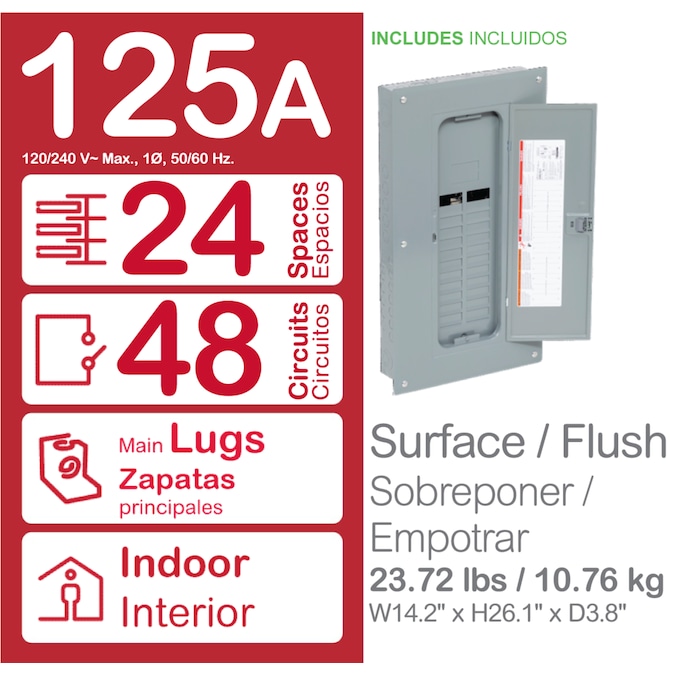

Square D Homeline 125-Amp 24-Spaces 48-Circuit Indoor Convertible Main Lug Plug-on Neutral Load Center
Description
- Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Rated 120/240 VAC and 65,000 AIR short circuit current rating
General
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Convertible main lug

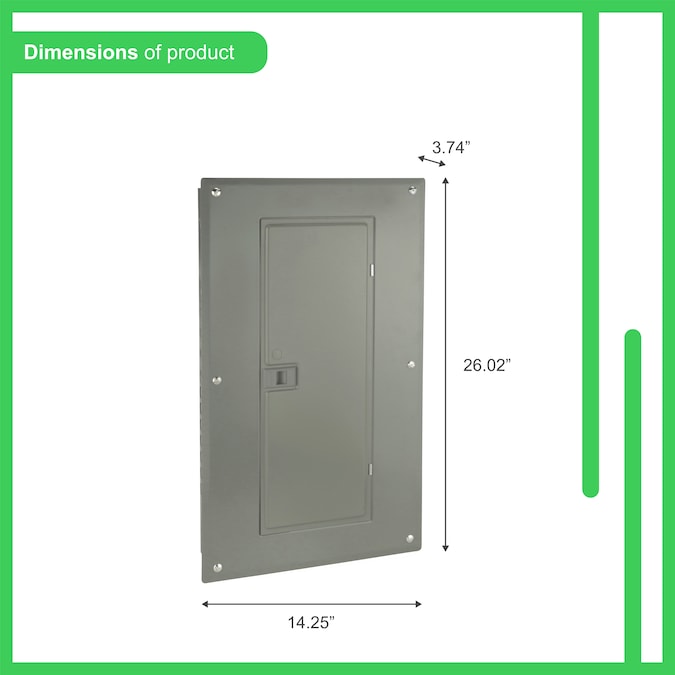

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 26.04
- Width (Inches): 14.25
Features
- Amperage: 125
- Buss Bar Construction: Aluminum
- Circuits: 48
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: Yes
- Mounting Type: Combination
- Number of Spaces: 24
- Orientation: Over/Under
- Paintable: No
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: No
- Value Pack Contents: Includes load center and cover
- Warranty: 18-month limited
Compatibility
- Brand/Model Compatibility: Square D Homeline Brand Only
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
Additional information
| Brand | Square D |
|---|
| Model | HOM2448L125PGC |
|---|
| UPC | 785901977100 |
|---|
| Color | Gray |
|---|
