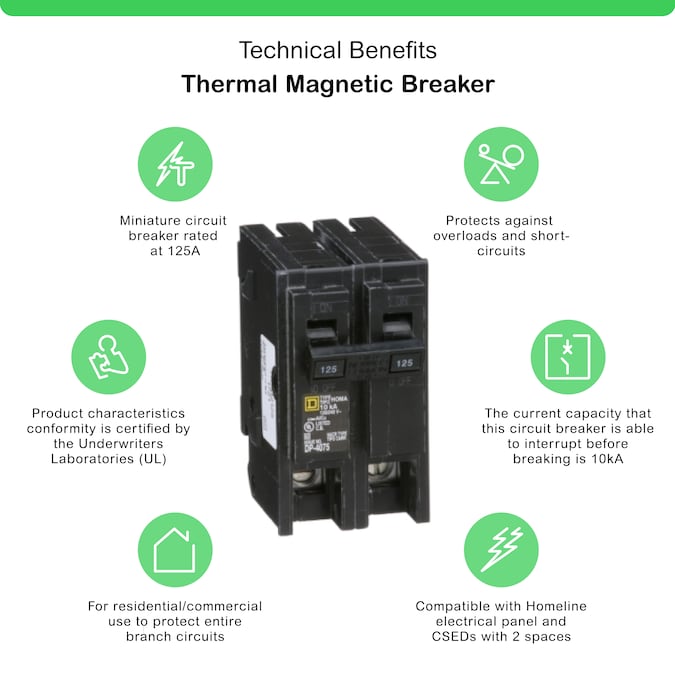

Use this Homeline 125 Amp Two-Pole Circuit Breaker to protect circuitry in Square D Homeline load centers and CSEDs from overloads or short circuits. This breaker is designed with a thermal-magnetic tripping mechanism for excellent detection of both short surges and long-term over currents. It is rated for 120/240 VAC and has a 10K AIR.
- Square D breaker protects against overloads and short-circuits
- For residential/commercial use to protect entire branch circuits

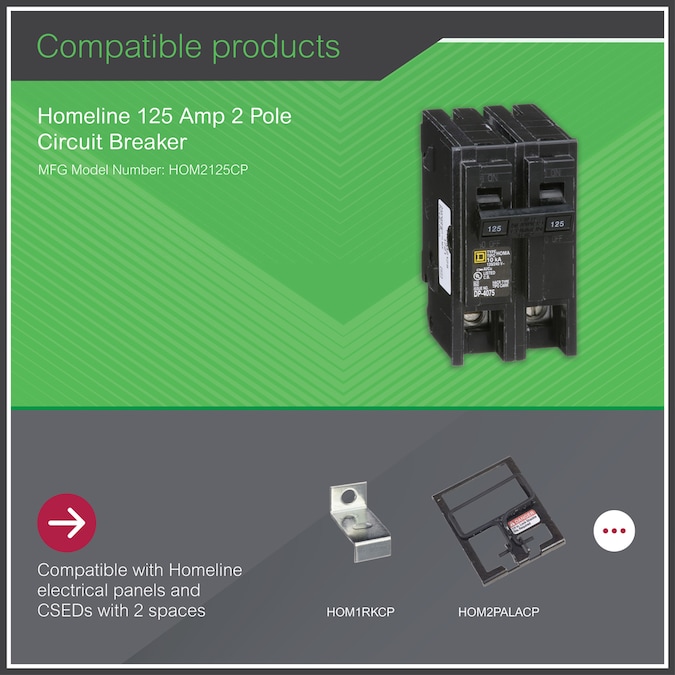

- Compatible with Homeline electrical panel and CSEDs with 2 spaces
- Square D Homeline 125 Amp 2-Pole Circuit Breaker
- Overload and short circuit protection
- Compatible with Square D Homeline breaker boxes and CSED devices
- Thermal-magnetic tripping mechanism, 1 in format
- For installation in 120/240-Volt AC systems and 10K AIR
- UL Listed and ANSI certified
General
- Series Name: Homeline
- Type: Standard trip

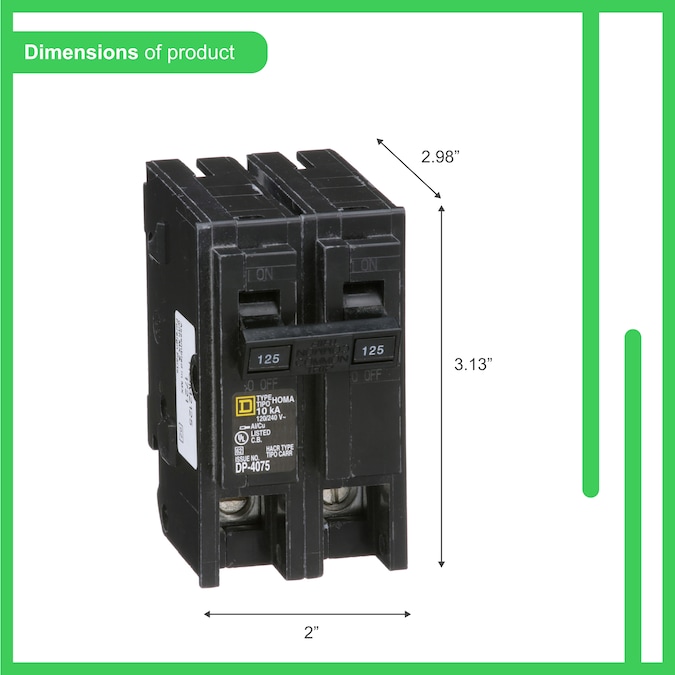

Dimensions
- Power Capacity: 125-amp
- Width Measurement: 2-in
Features
- Circuit Breaker Voltage: 240
- Ground Fault Protection: No self test
- Interrupting Amp Listing (Amps): 1000
- Number of Poles: 2
- Phase: Single phase (120/240)
- Plug-On Neutral: No
- Surge Protection: No
Warranty
- Warranty: 1-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121600
