Square D Homeline 125 -Amp 12 -Spaces 24 -Circuit Indoor Convertible main lug Plug-On Neutral Load Center (Value Pack)
Description
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Accommodates plug-on secondary surge arrestor (sold separately)

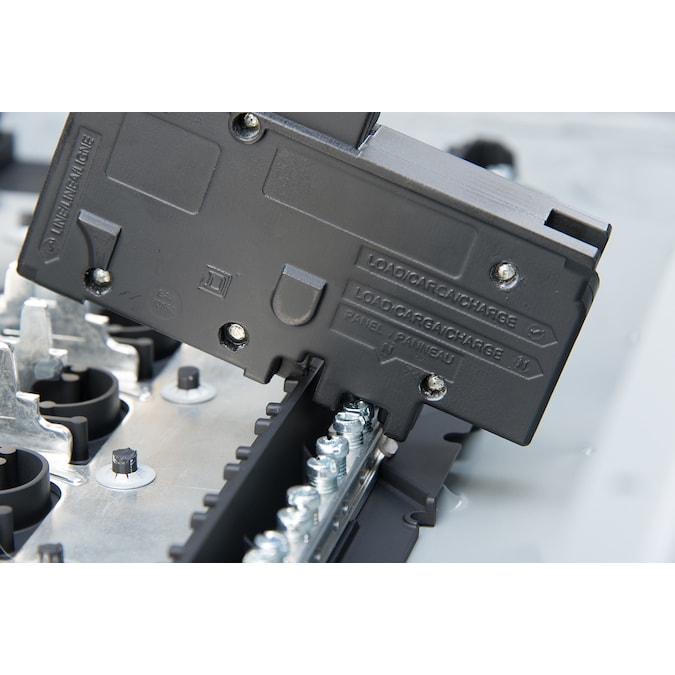

- Overhead/underground feed simply by rotating the device before installing
- Rated 120/240 VAC and 10,000 AIR short circuit current rating
General
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Convertible main lug

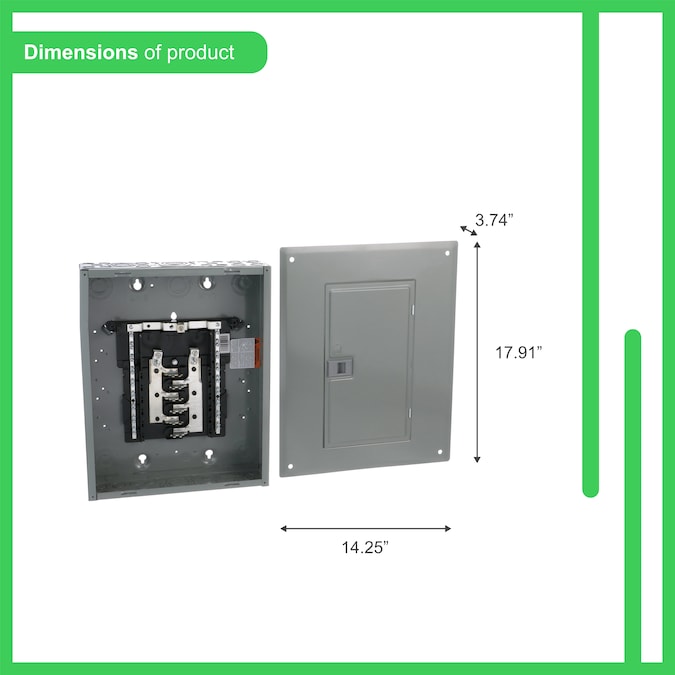

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 17.92
- Width (Inches): 14.25
Features
- Amperage: 125
- Buss Bar Construction: Aluminum
- Circuits: 24
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: Yes
- Mounting Type: Combination
- Number of Spaces: 12
- Orientation: Over/Under
- Paintable: No
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Sub-panel
- Use Location: Indoor
- Value Pack: Yes
- Value Pack Contents: Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers and a combination flush/surface cover
Compatibility
- Brand/Model Compatibility: Square D Homeline Brand Only
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Warranty
- Warranty: 18-month limited
Miscellaneous
Additional information
| Brand | Square D |
|---|
| Model | HOM1224L125PGCVP |
|---|
| UPC | 785901864288 |
|---|
| Color | Gray |
|---|
