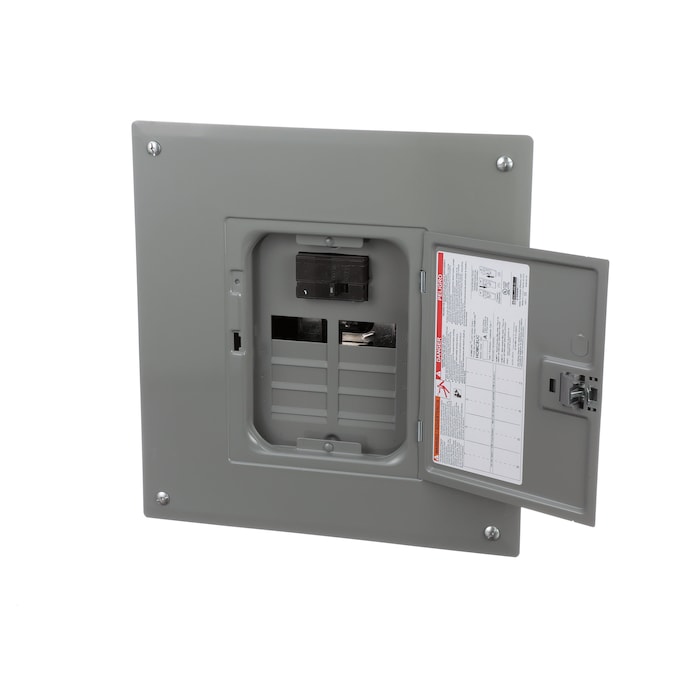

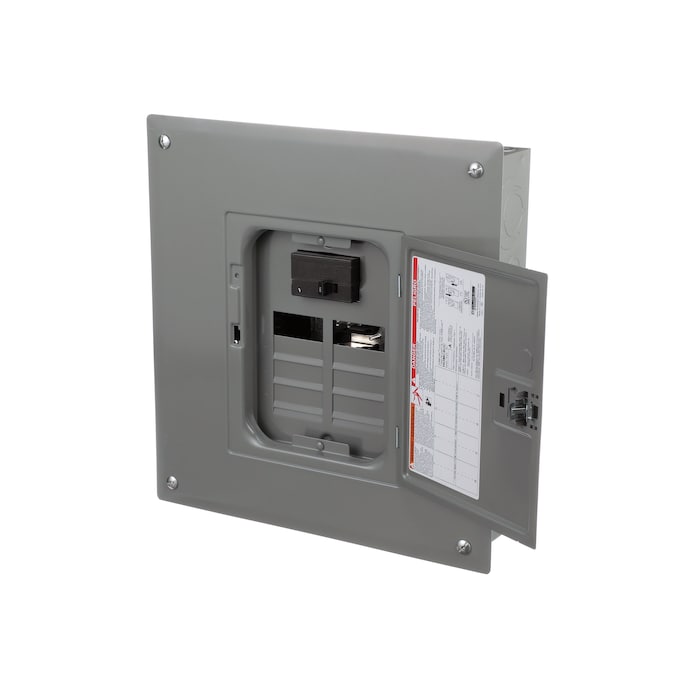

The Square D Homeline 100 Amp 8-Space 16-Circuit Indoor Convertible Main Breaker Load Center with cover for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Includes combination flush/surface cover and aluminum bus bar
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes a combination flush/surface indoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
General
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Main breaker

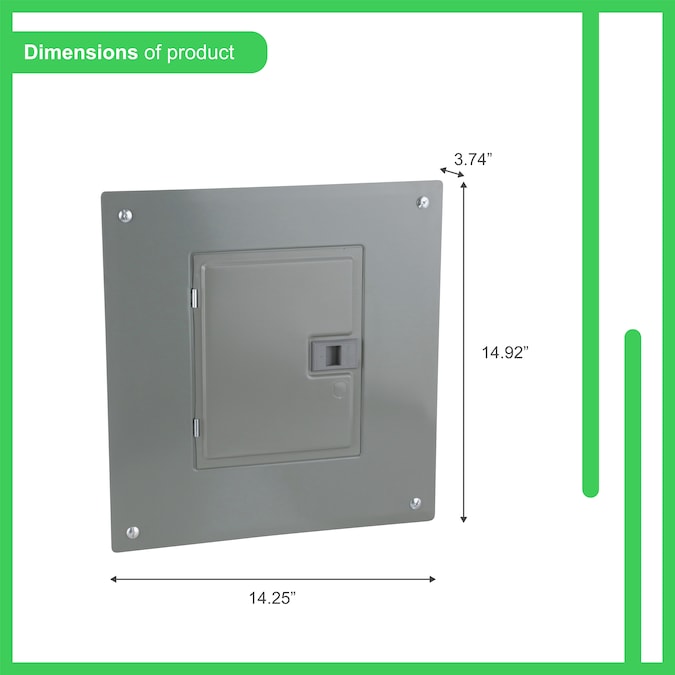

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 14.92
- Width (Inches): 14.25
Features
- Amperage: 100
- Buss Bar Construction: Aluminum
- Circuits: 16
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Combination
- Number of Spaces: 8
- Orientation: Over/Under
- Paintable: No
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: No
- Value Pack Contents: Includes load center and cover
- Warranty: 18-month limited
Compatibility
- Brand/Model Compatibility: Square D Homeline Brand Only
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
