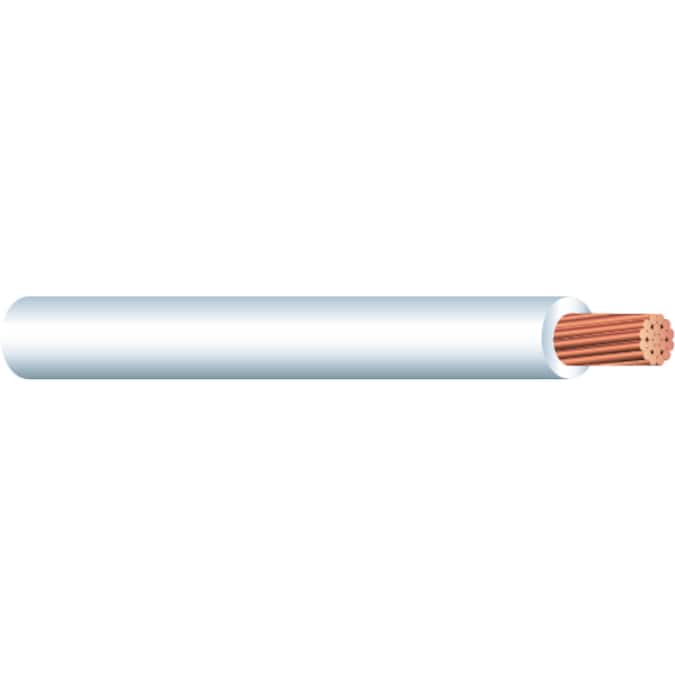

Southwire 500-ft 12-AWG Copper Stranded White XHHW Wire (By-the-roll)

• Used in conduits for services, feeders, and branch circuit wiring
• Annealed copper conductor
• Designed for wet or dry locations in temperatures not to exceed 194 ° Fahrenheit
• Abrasion-, moisture-, and heat-resistant cross-linked polyethylene insulation
• Suitable for use in anesthetizing locations where a dielectric constant of 3.5 or less is required
• Sunlight-resistant
• Can be installed without the need for pulling lubricant

General

• Jacket Color: White
• Series Name: N/A
• Sub-Brand: N/A

Dimensions

• Cable Length (Feet): 500

Features

• Commercial/Residential: Commercial/Residential
• Conductor Material: Copper
• Direct Burial: No
• Fire Resistant: No
• Jacket Material: Cross-linked polyethylene (XLP)
• Maximum Amperage: 20
• Moisture Resistant: Yes
• Number of Strands: 7
• RoHs Compliant: Yes
• Shielded: No
• Stranded or Solid: Stranded
• UV Resistant: Yes
• Voltage Rating: 600
• Warranty: 1-year limited
• Wire Cut Type: By-the-roll
• Wire Gauge: 12

Compatibility

• Conduit Compatible: Yes

Certifications

• CA Residents: Prop 65 Warning(s): No
• Safety Listing: UL safety listing

Miscellaneous

• UNSPSC: 26121500
