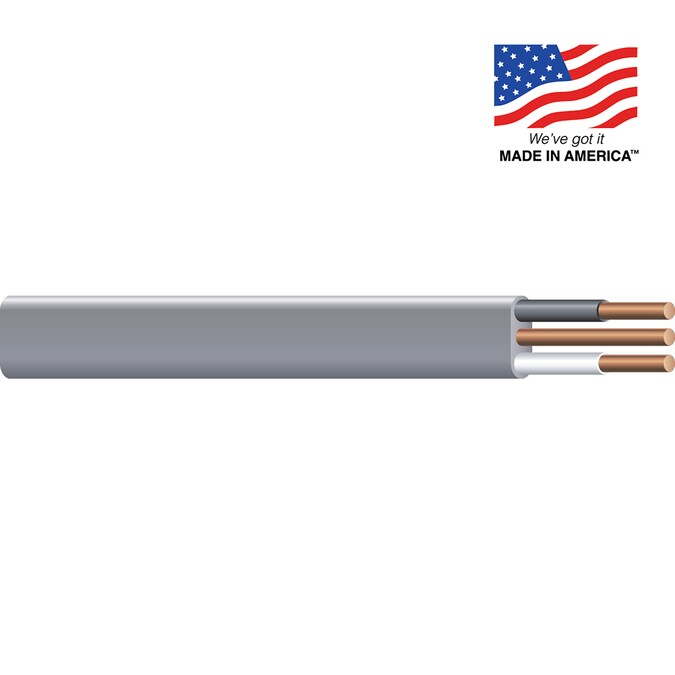

Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed and CSA certified.
- Conductors are made of annealed (soft) copper
- PVC insulation and a nylon, color coded jacket
- Used outdoors for direct burial
- Used indoors for wet or corrosive locations
- Jacketed with sunlight, moisture and fungus resistant gray PVC
General
- Sub-Brand: N/A
Dimensions
- Cable Length (Feet): 250
- Weight (lbs.): 34.4973
Features
- Commercial/Residential: Commercial/Residential
- Direct Burial: Yes
- Fire Resistant: No
- Ground Wire: Yes
- Maximum Amperage: 30
- Moisture Resistant: Yes
- Number of Conductors: 2
- RoHs Compliant: Yes
- Shielded: No
- Stranded or Solid: Solid
- Use Location: Indoor/Outdoor
- UV Resistant: Yes
- Voltage Rating: 600
- Warranty: 1-year limited
- Wire Cut Type: By-the-roll
- Wire Gauge: 10
Compatibility
- Conduit Compatible: No
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 60104900
