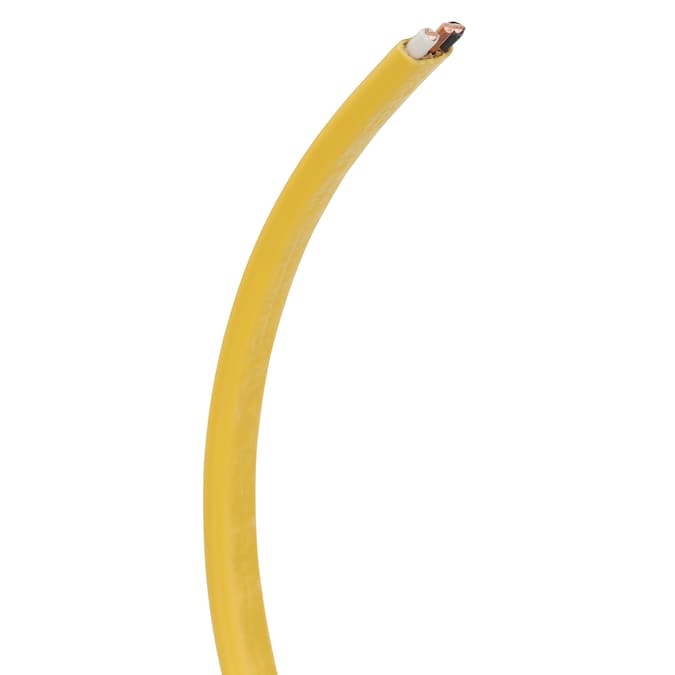

Southwire 1000-ft 12/2 Romex SIMpull Solid Indoor CU NM-B W/G Individual Pack (By-the-roll)

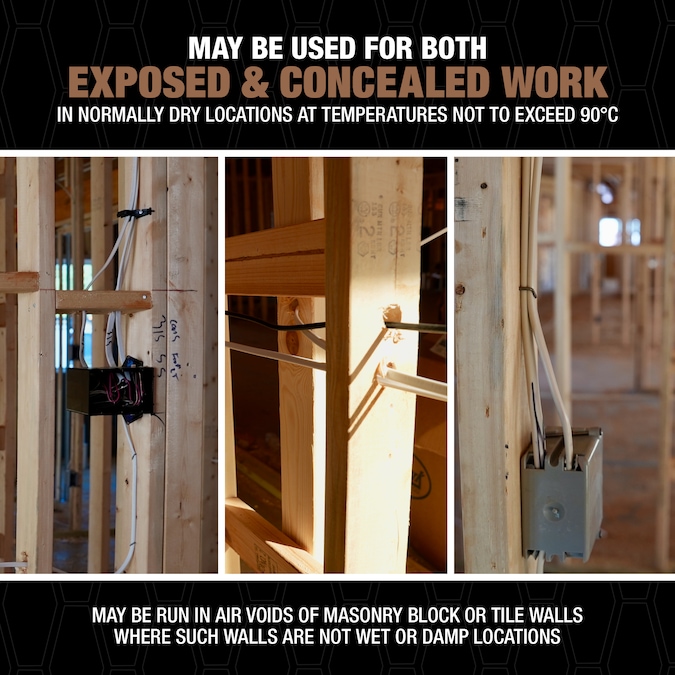

Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C.

• Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
• NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
• NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
• Voltage rating for NM-B cable is 600 volts
• Copper conductors are annealed (soft) copper
• Southwire’s SIMpull® designed for easier pulling, resulting in easier installation

General

• Jacket Color: Yellow
• Series Name: Romex SIMpull
• Sub-Brand: N/A

Dimensions

• Cable Length (Feet): 1000

Features

• Commercial/Residential: Commercial/Residential
• Direct Burial: No
• Fire Resistant: No
• Ground Wire: Yes
• Jacket Material: Polyvinyl chloride
• Maximum Amperage: 20
• Moisture Resistant: Yes
• Number of Conductors: 2
• Number of Conductors (Wire 2): 0
• Number of Pairs: 0
• Number of Strands (Wire 2): 0
• Package Quantity: 1
• Package Type: Individual pack
• RoHs Compliant: Yes
• Shielded: No
• Stranded or Solid: Solid
• Use Location: Indoor
• UV Resistant: No
• Voltage Rating: 600
• Warranty: 1-year limited
• Wire Cut Type: By-the-roll
• Wire Gauge: 12

Compatibility

• Conduit Compatible: No

Certifications

• CA Residents: Prop 65 Warning(s): No
• Safety Listing: UL safety listing

Miscellaneous

• UNSPSC: 26121500
