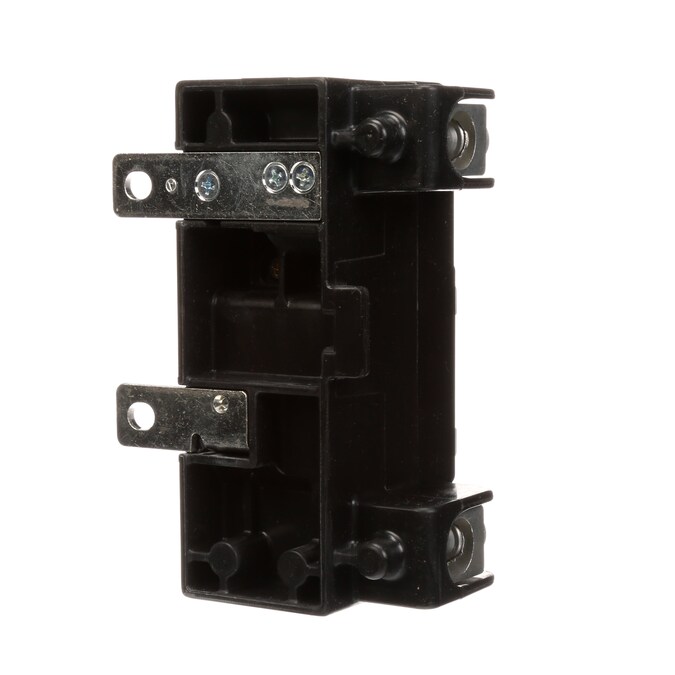

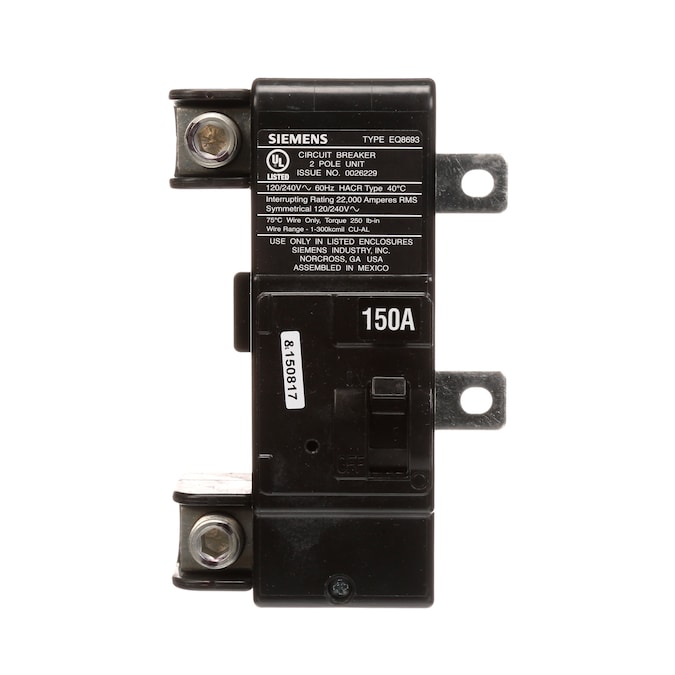

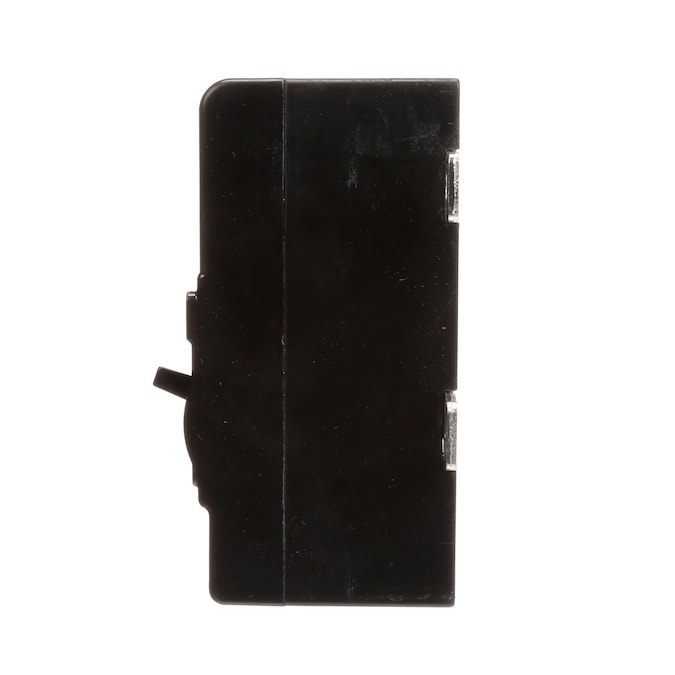

This 150 Amp Double-Pole Main Breaker Conversion Kit is designed to convert a main lug load center to a main breaker load center. The breaker has a maximum load of 240-Volt and is suitable for use in 150 Amp load centers. This ANSI-certified and CSA and UL-listed converter is compatible for use in both Murray and Siemens PL, ES, PN, SN and Ultimate Load Centers.
- For use converting a main lug load center to a main breaker
- Fits any Siemens panel that accepts Type EQ8693 Main Breaker
- Accepts #1-3/0 AWG Cu-Al Wire
- 240-Volt
- Compatible with Murray and Siemens load centers
- Suitable for use in 150A, 200A and 225A load centers
- ANSI certified and CSA and UL listed
- 22,000 AIC rating
General
- Type: Main
Dimensions
- Power Capacity: 150-amp
- Width Measurement: 4-in
Features
- Circuit Breaker Voltage: 240
- Ground Fault Protection: No self test
- Interrupting Amp Listing (Amps): 22000
- Number of Poles: 2
- Phase: Single phase (120/240)
- Plug-On Neutral: No
- Surge Protection: No
- Warranty: Lifetime
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121600
