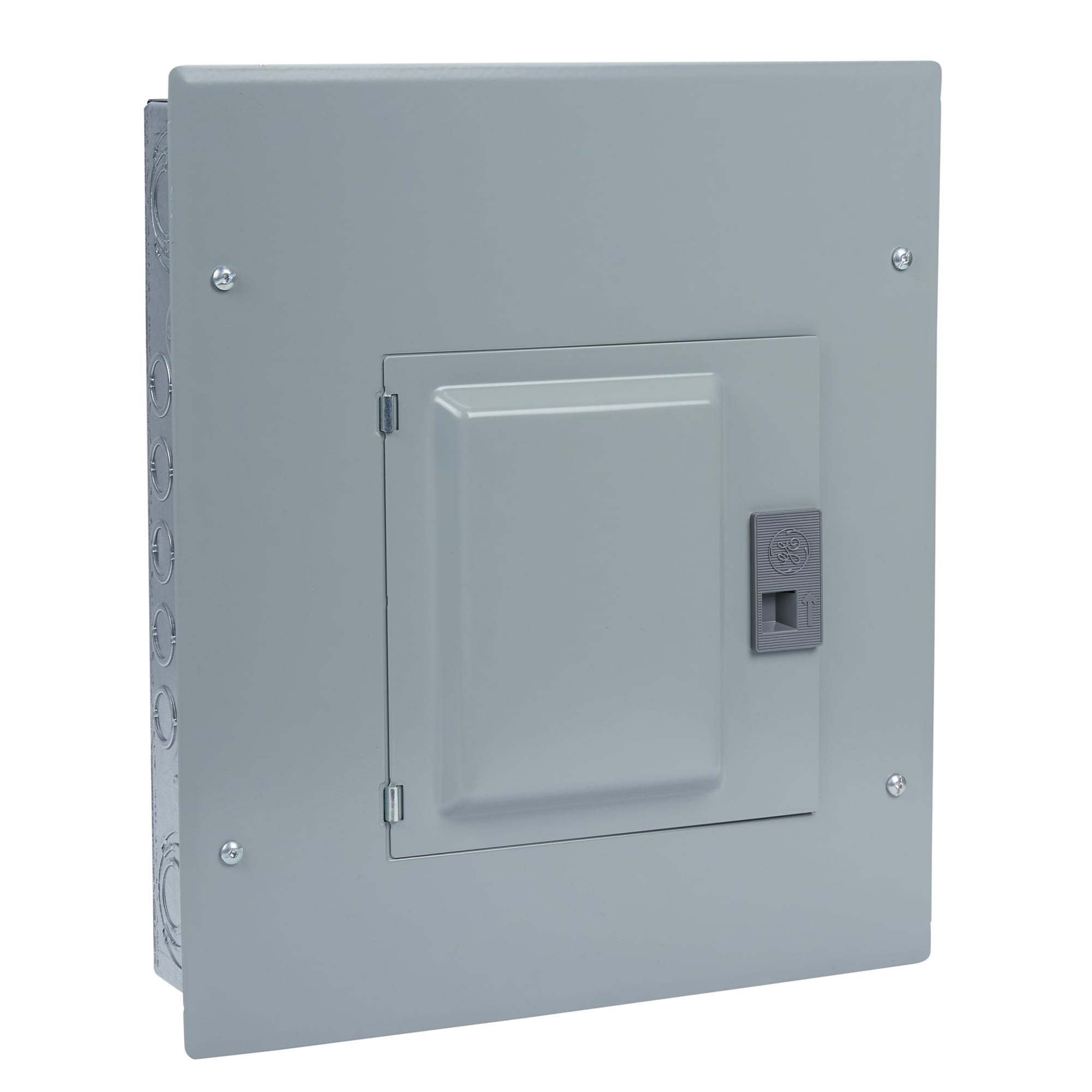

The GE 125 Amp 14-Space 24-Circuit Main Lug Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers and ground bar. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.
Manufacturer Color/Finish: Gray
Series Name: PowerMark Gold
Type: Convertible main lug

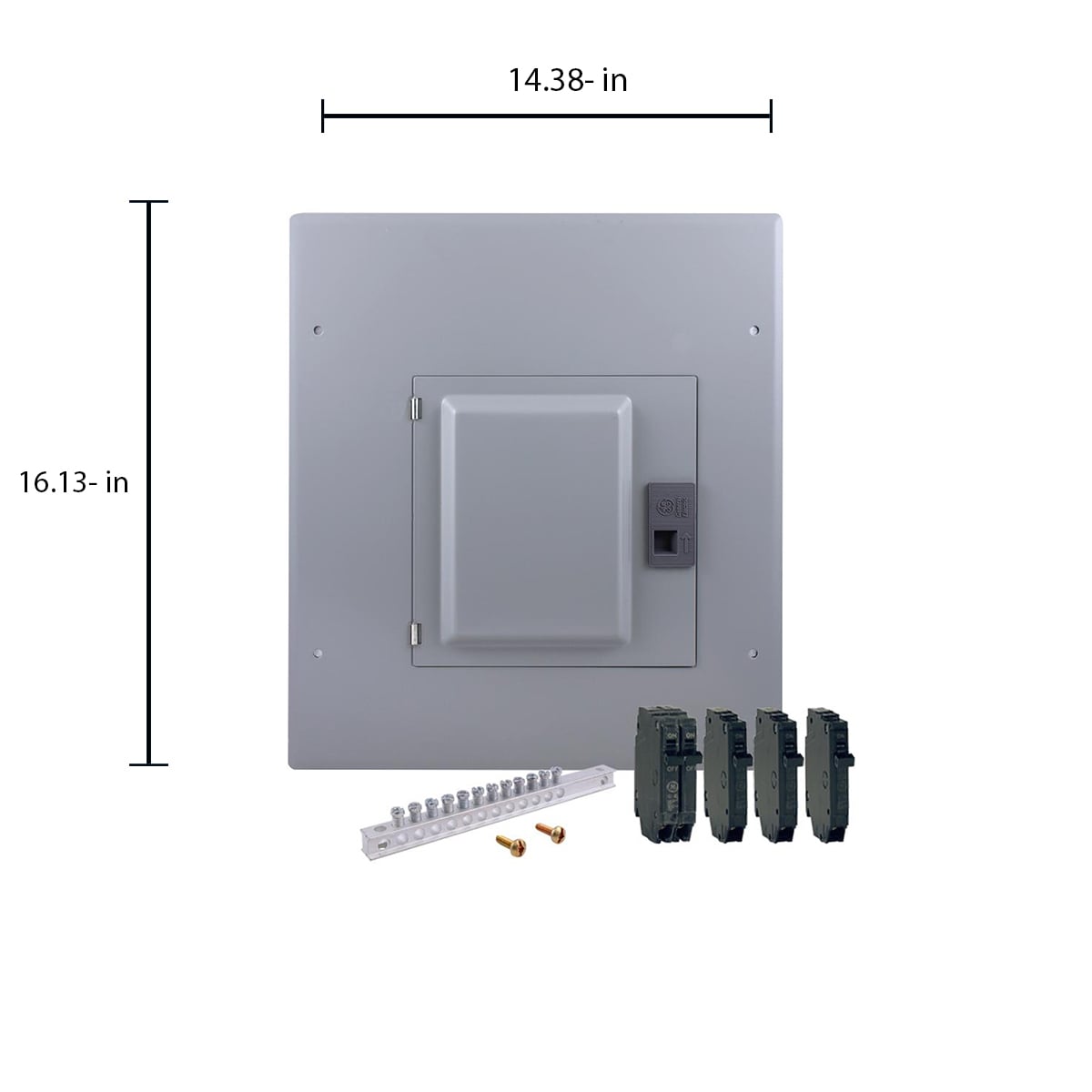

Depth (Inches): 3.31
Height (Inches): 16.13
Width (Inches): 14.38
Amperage: 125
Buss Bar Construction: Copper
Circuits: 24
Cover Included: Yes
Feed-Through Lugs: Yes
Ground Bar Installed: Yes
Mounting Type: Surface
Number of Spaces: 14
Orientation: Over/Under
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Service entrance
Use Location: Indoor
Value Pack: Yes
Value Pack Contents: PowerMark Gold 125 Amp main lug indoor circuit breaker panel, 3 20 Amp single pole and 1 30 Amp double pole THQP 1/2 in. circuit breakers and a 12 hole Ground Bar
Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 1-year limited
UNSPSC: 39121100
