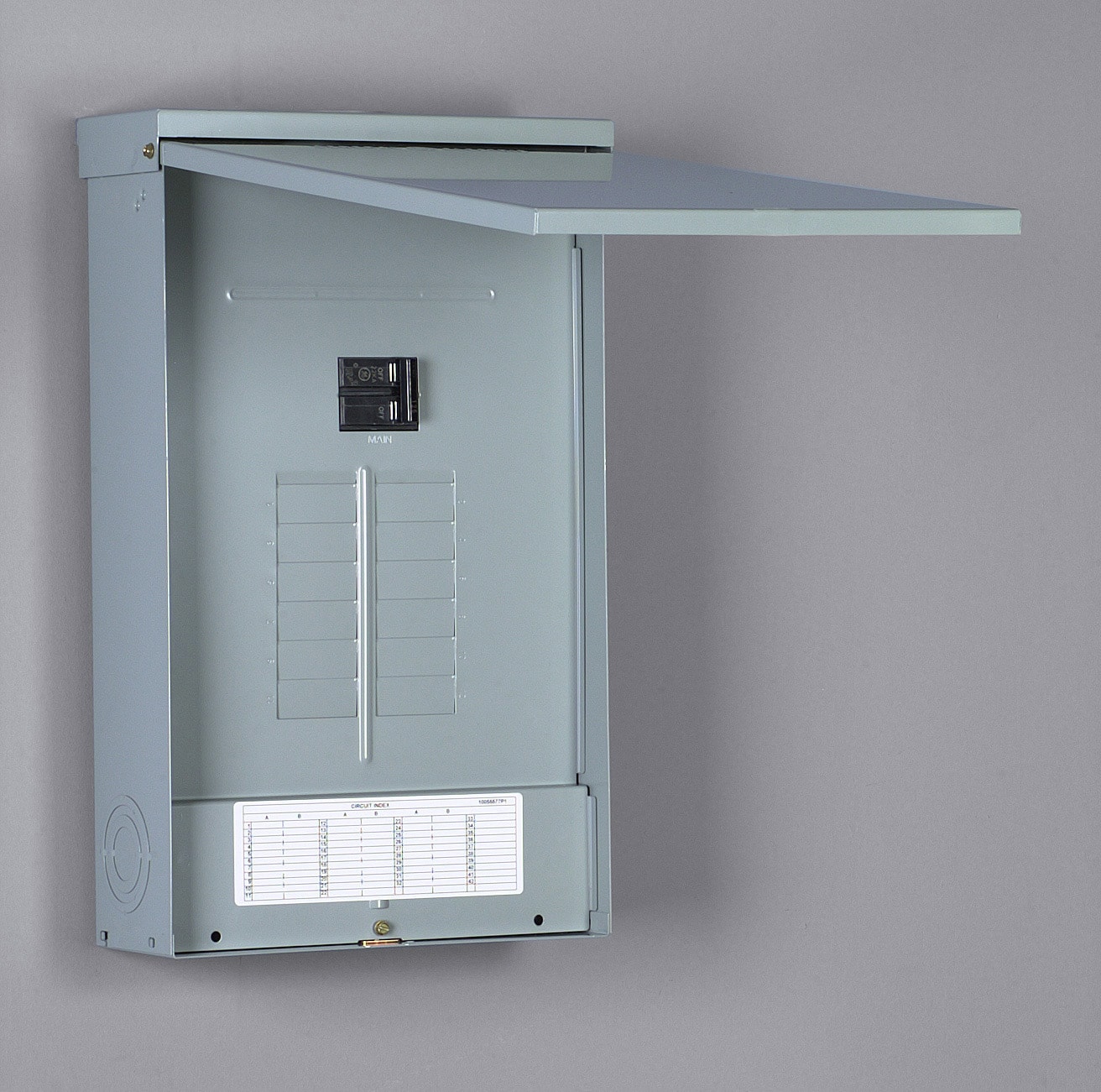

The GE PowerMark Gold Main Breaker load centers can be used as a home’s main panel or sub panel de-pending upon your preferences. All GE PowerMark Glold Main Lugs are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The GE PowerMark Main Lugs are UL Listed and NEMA 3R Certified. These units are sin-gle phase, 3 wire and for use with 120/240 VAC systems and rated for up to 22kAIC. The GE PowerMark Gold Main Lugs are compatible with the GE Q-Line THQL/THQP breakers and the new ABB Q-Line THQL breakers. The GE PowerMark Gold series will be replaced with the ABB ReliaHome series.
Manufacturer Color/Finish: Gray
Series Name: PowerMark Gold
Type: Main breaker
Depth (Inches): 21.5
Height (Inches): 5
Width (Inches): 13
Amperage: 125
Buss Bar Construction: Copper
Circuits: 24
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: No
Mounting Type: Combination
Number of Spaces: 12
Orientation: Over/Under
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Service entrance
Use Location: Outdoor
Value Pack: Yes

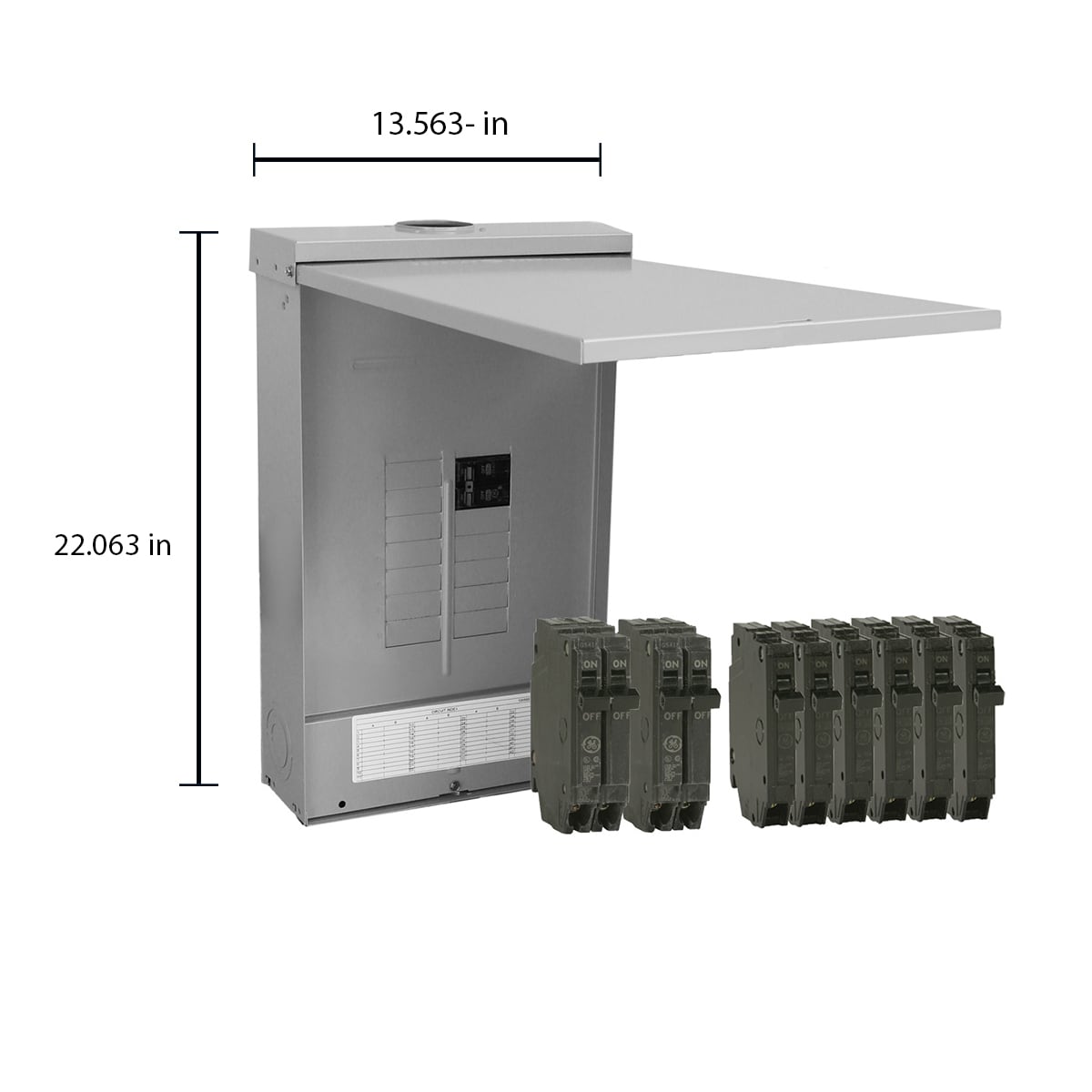

Value Pack Contents: Kit includes 6 – single pole 20 Amp 1/2-in, 1 – double pole 30 Amp 1/2-in and 1 – double pole 50 Amp 1/2-in circuit breakers
Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers, and ABB THQL Breakers
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 1-year limited
UNSPSC: 39121100
