The GE PowerMark Gold Main Breaker load centers can be used as a home’s main panel or sub panel de-pending upon your preferences. All GE PowerMark Glold Main Lugs are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The GE PowerMark Main Lugs are UL Listed and NEMA 1 Certified. These units are sin-gle phase, 3 wire and for use with 120/240 VAC systems and rated for up to 22kAIC. The GE PowerMark Gold Main Lugs are compatible with the GE Q-Line THQL/THQP breakers and the new ABB Q-Line THQL breakers. The GE PowerMark Gold series will be replaced with the ABB ReliaHome series.
Manufacturer Color/Finish: Gray
Series Name: PowerMark Gold
Type: Main breaker

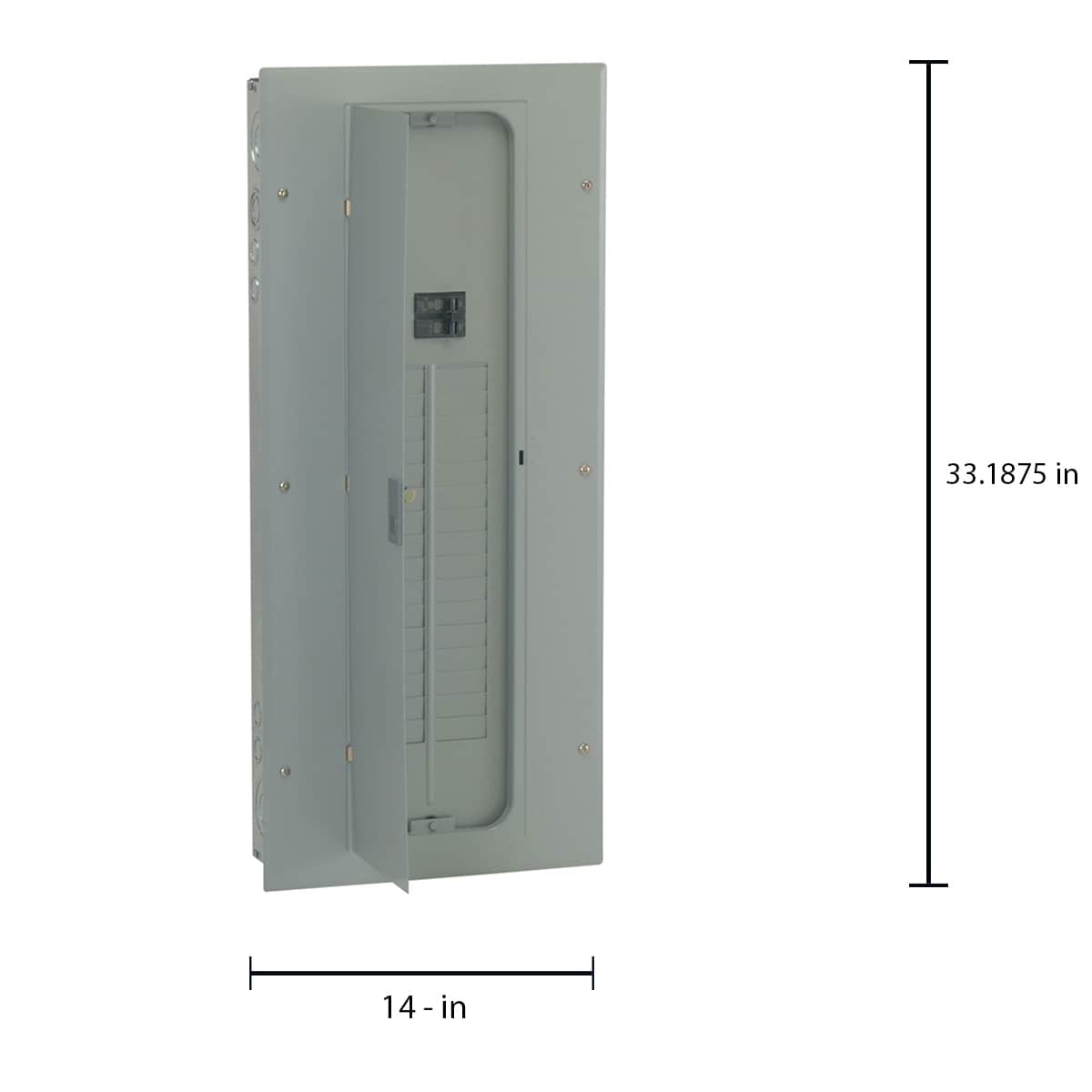

Depth (Inches): 3.75
Height (Inches): 33.1875
Width (Inches): 14
Amperage: 100
Buss Bar Construction: Copper
Circuits: 32
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: No
Mounting Type: Combination
Number of Spaces: 32
Orientation: Over/Under
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Service entrance
Use Location: Indoor
Value Pack: No
Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers, and ABB THQL Breakers
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 1-year limited
UNSPSC: 39121100
