Siemens introduces PN series load centers – a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PN series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim – these features were specifically engineered to decrease installation time and increase flexibility.
Manufacturer Color/Finish: Gray
Series Name: PN
Type: Convertible main breaker panel

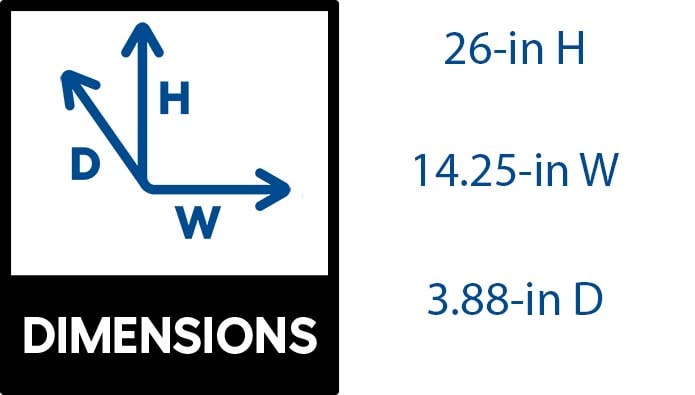

Depth (Inches): 3.88
Height (Inches): 26
Width (Inches): 14.25
Amperage: 100
Buss Bar Construction: Copper
Circuits: 30
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: Yes
Mounting Type: Combination
Number of Spaces: 30
Orientation: Over/Under
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: Yes
Usage: Service entrance
Use Location: Indoor
Value Pack: No
Voltage: 120
Brand/Model Compatibility: Siemens
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: Lifetime
UNSPSC: 39121100
