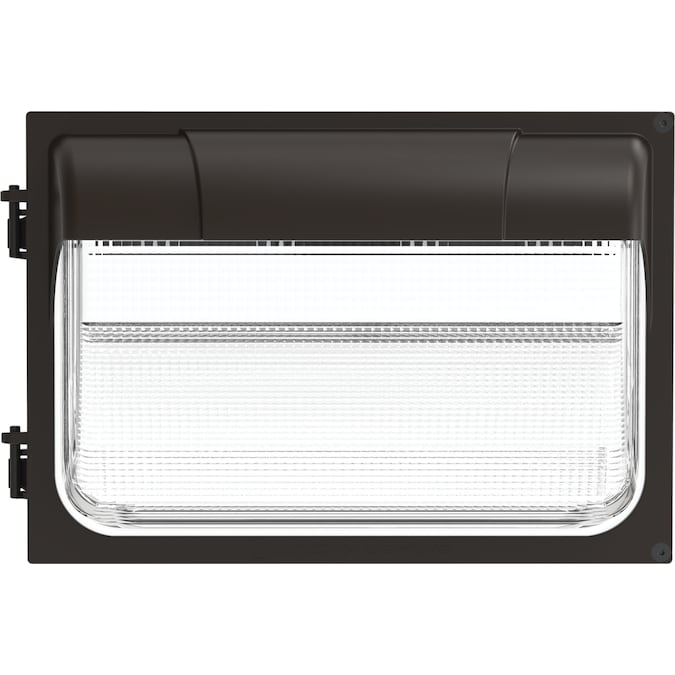

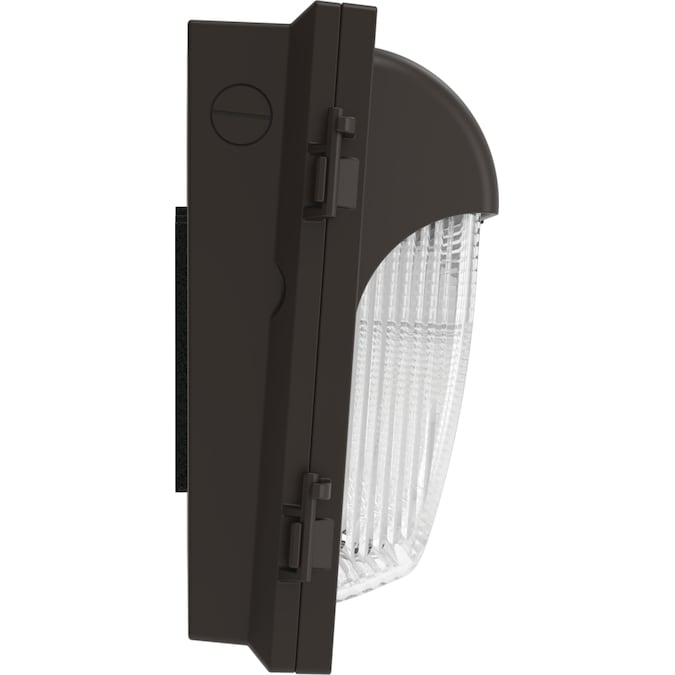

TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX2 LED ALO luminaires can replace anything from a 70W to 250W metal halide luminaire.

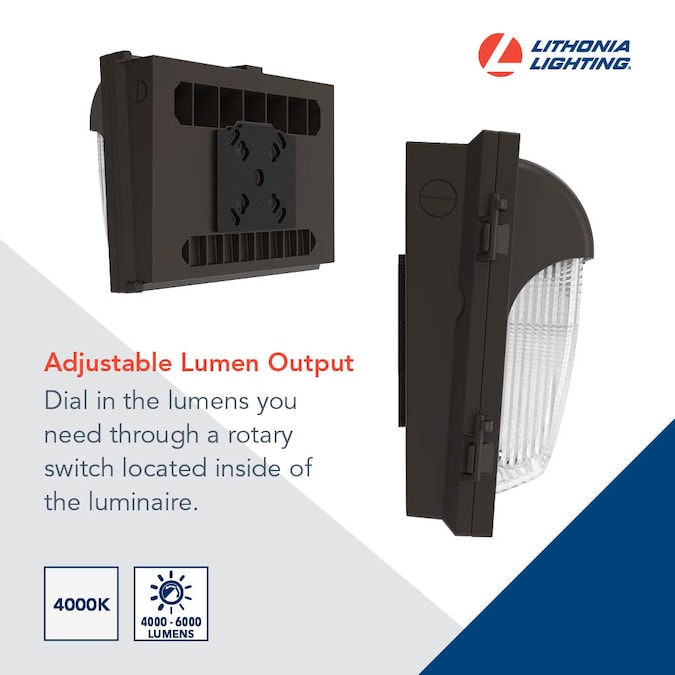

- Adjustable light output maximizes flexibility in the field
- The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire
- Hardwired on/off capability only
- CSA certified to US and Canadian standards, listed as a DesignLights Consortium® (DLC) qualified product and IP65 rated for outdoor applications

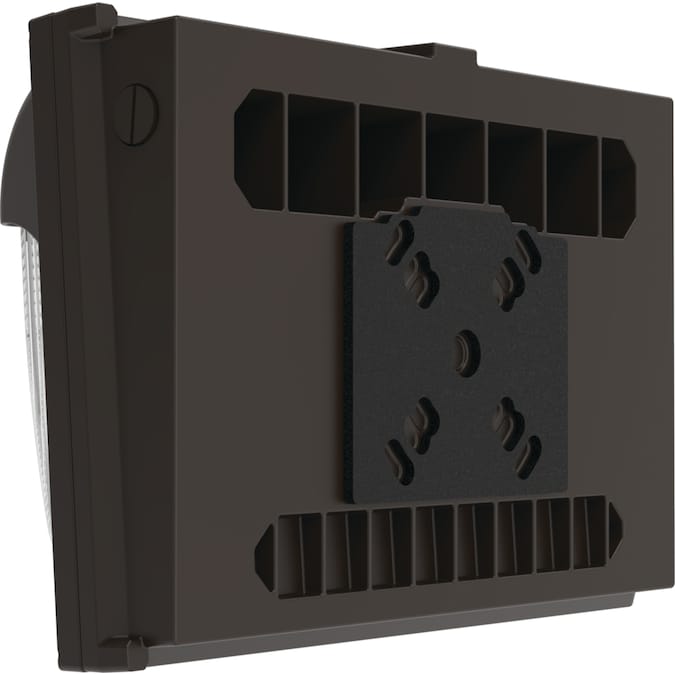

- MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the internal compartment
- Light engine(s) configurations consist of high-efficacy LEDs where the advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
- Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
- No emergency battery back-up available in this version
- Five-year limited warranty
General
- Color Temperature (Kelvins): 4000
- Fixture Color Family: Bronze
- Light Color: Cool White
- Manufacturer Color/Finish: Textured

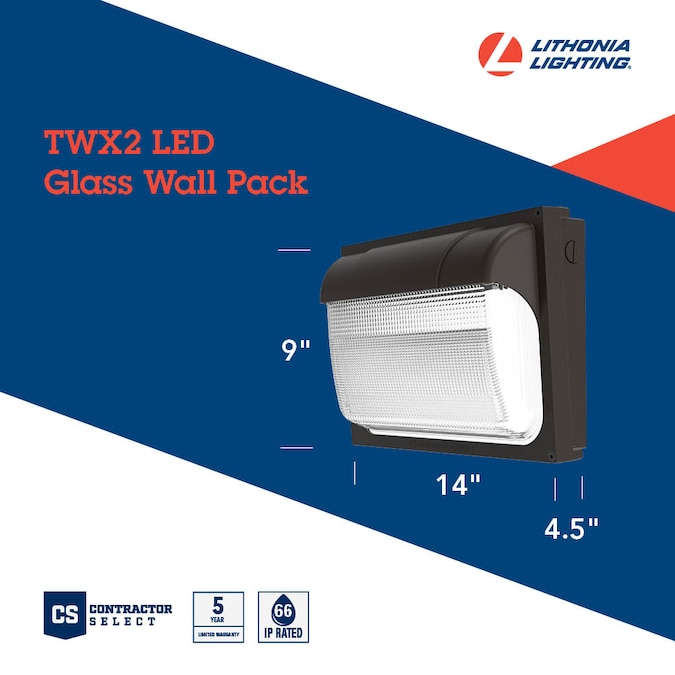

Dimensions
- Depth (Inches): 4.5
- Height (Inches): 9
- Light Coverage Area: Small area (-5000 sq. ft.)
- Weight (lbs.): 11
- Width (Inches): 13
Features
- Adjustable Lumen Output (ALO): 1,450 – 6,950
- Adjustable Lumens: Yes
- Bulb Type: LED
- Bulb(s) Included: Yes
- Dimmable: No
- Dusk-to-Dawn Sensor: No
- IPX Rating: N/A (not rated)
- Light Bulb Base Type: Integrated
- Lumens: 6950
- Material: Aluminum
- Maximum Bulb Wattage: 54
- Maximum Fixture Wattage: 54
- Motion Sensor: No
- Mounting Type: Wall
- Number of Light Heads: 1
- Package Quantity: 1
- Power Source: Hardwired
- Volts: 120-277
- Warranty: 5-year limited
- Water Resistant: No
- Wattage: 54
- Wattage Equivalent: 100
Certifications
- CA Residents: Prop 65 Warning(s): No
- DLC Listing: Standard
- ENERGY STAR Certified: No
- Safety Listing: CSA safety listing
Miscellaneous
- UNSPSC: 39111600
