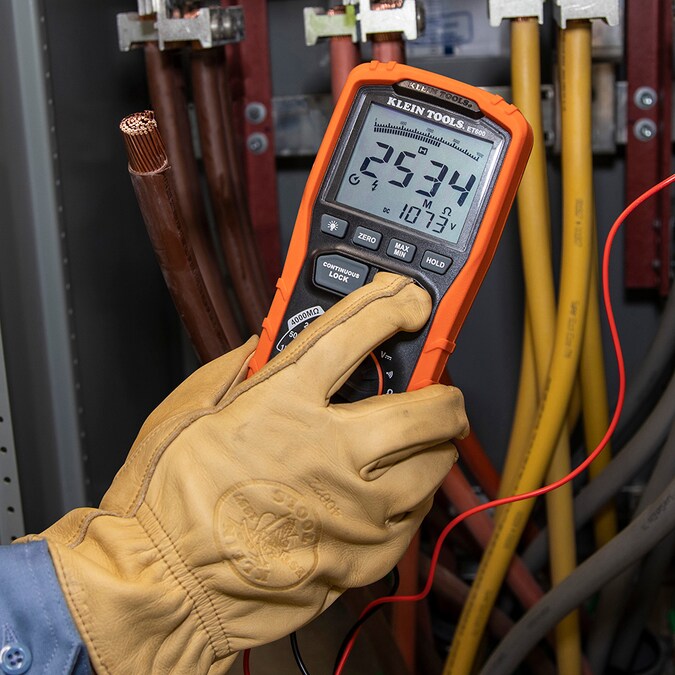

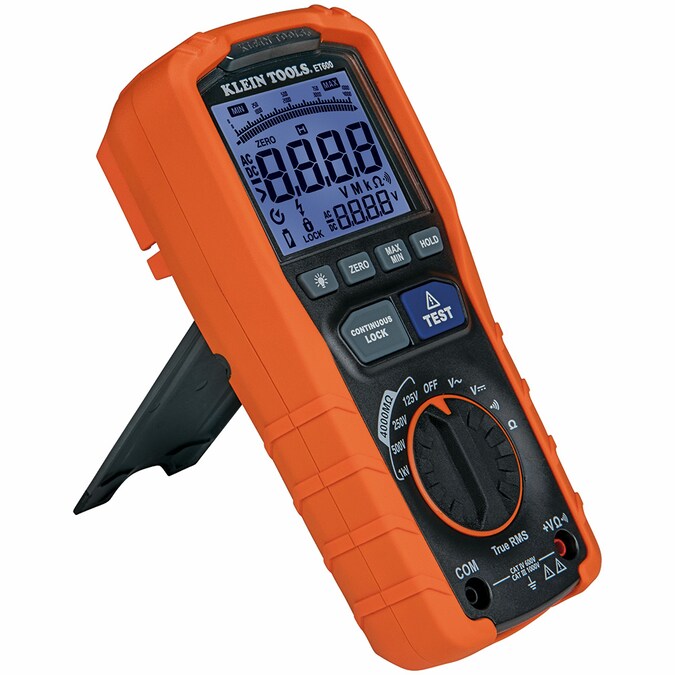

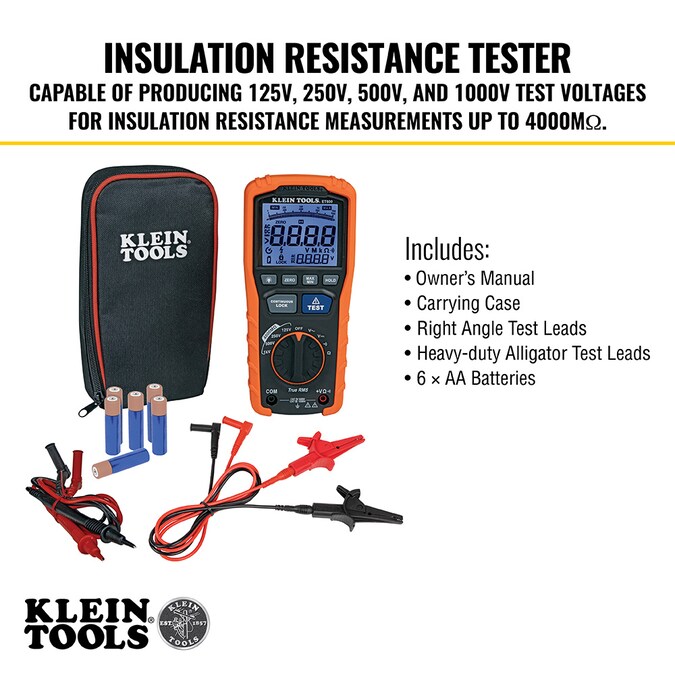

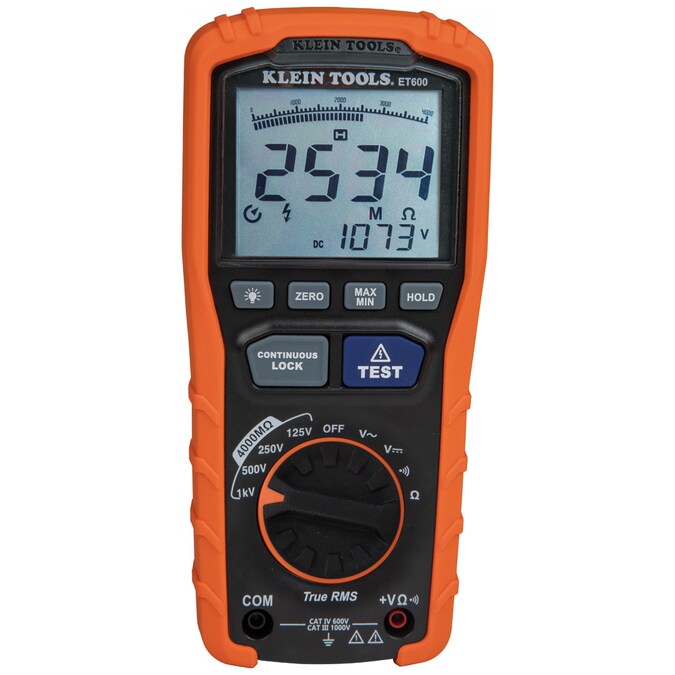

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

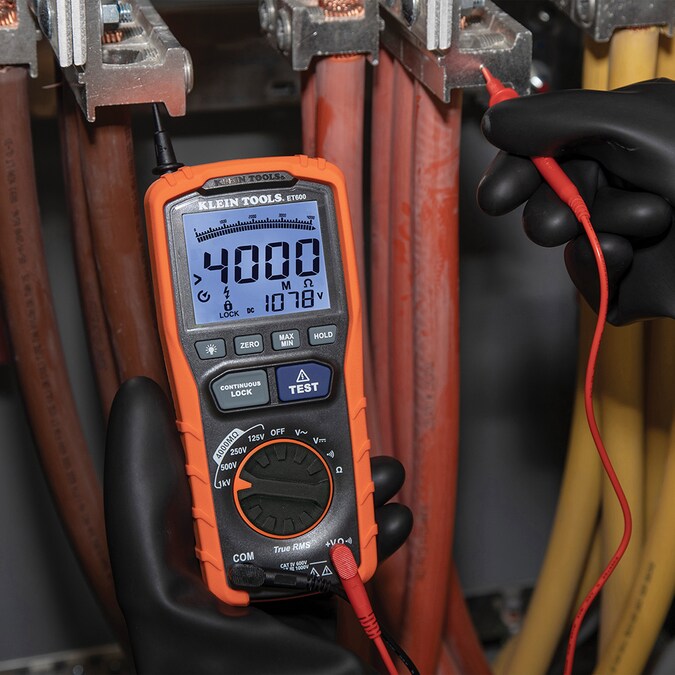

- Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
- Megohmmeter with test and lock buttons for simple insulation testing
- Warning alarm and high voltage icon for detection of voltage
- Measures up to 1000V AC/DC, resistance, and continuity
- Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

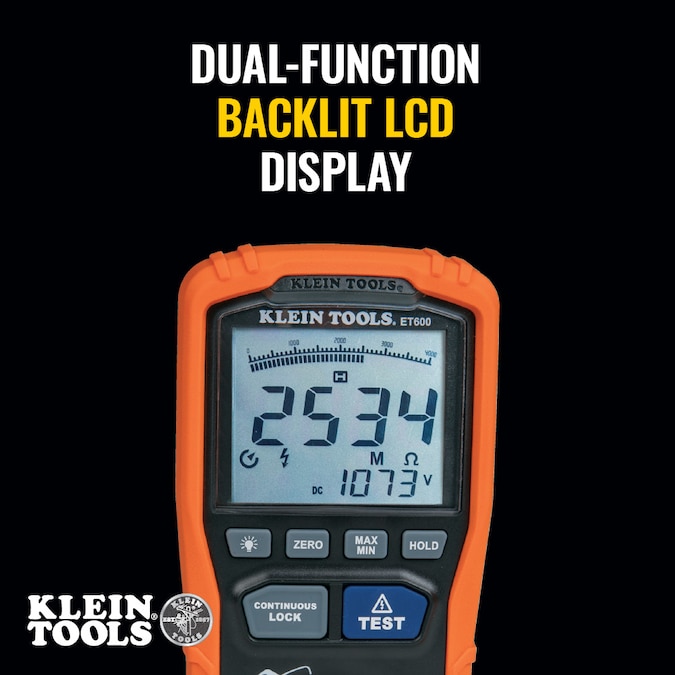

- Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons

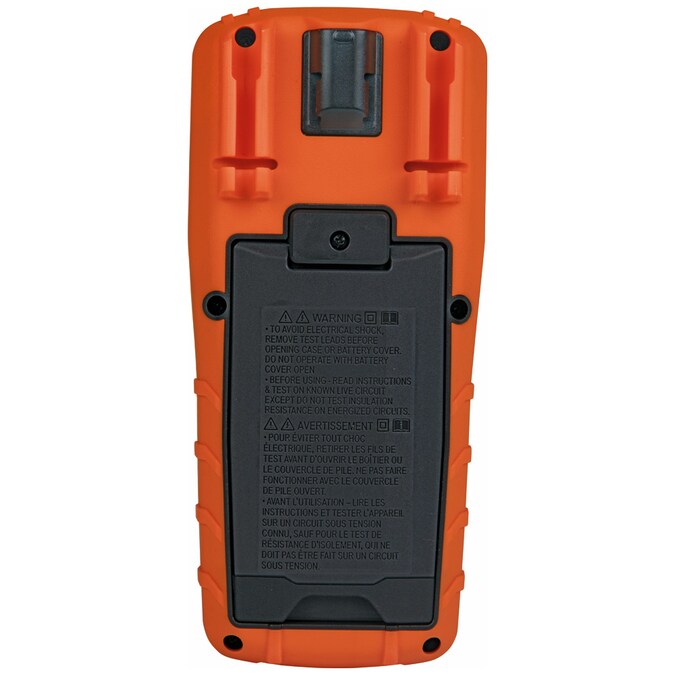

- Low battery indicator with easily replaceable battery and fuse

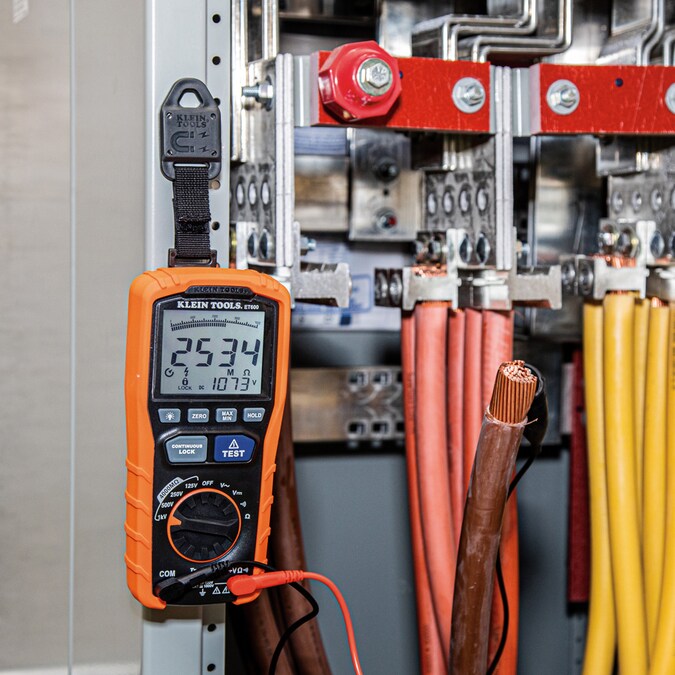

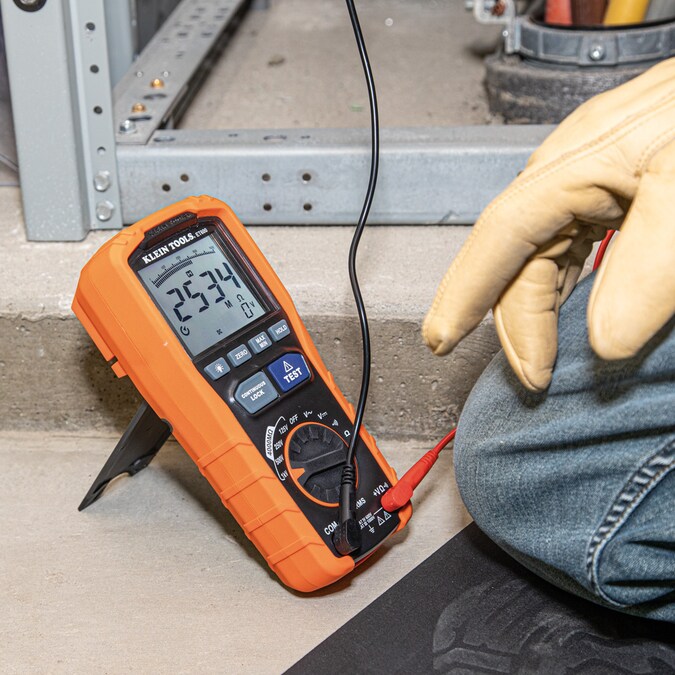

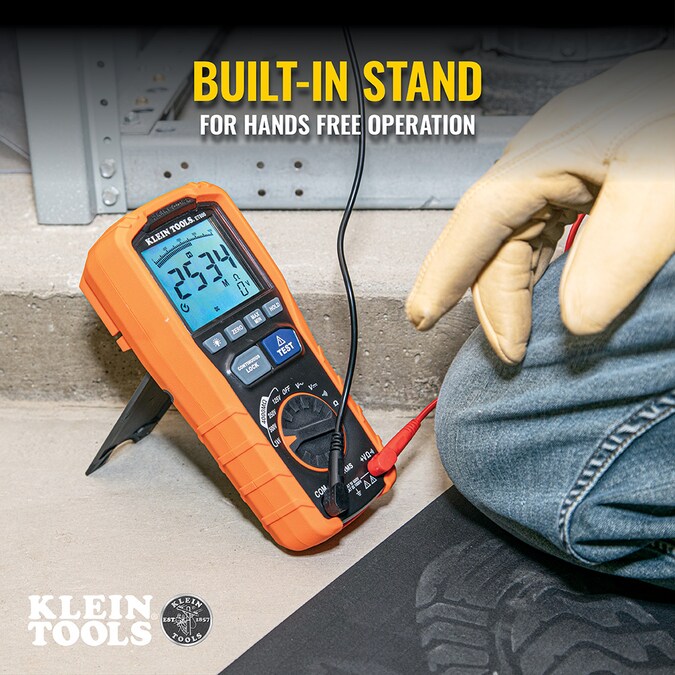

- Built-in stand and optional magnetic hanger for hands free operation
- Test verification of conformity to EN61557-1,-2,-4
General
- Color/Finish Family: Orange
- Series Name: Insulation Resistance Tester
- Sub Type: Insulation tester
- Type: Multimeter
Dimensions
- Compatible Battery Size: AA
- Load Measurement: CAT III
- Weight (lbs.): 1.4
Features
- AC Voltage: 1000
- Amperage: 0
- Application: Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
- Battery(s) Included: Yes
- Case Included: Yes
- DC Polarity Indicator: Yes
- DC Voltage: 1000
- Depth (Inches): 2.32
- Detection Type: N/A
- Display Type: LCD
- Grade: Commercial/Residential
- Length (Inches): 7.93
- Non-Contact: No
- Ranging: Auto
- Set/Individual: Individual
- Targeting Laser: N/A
- Tests Voltage: AC/DC
- True-RMS: Yes
- Use Location: Indoor
- Width (Inches): 3.59
Compatibility
- App Compatibility: No
- Bluetooth Compatibility: No
- Compatible Battery Type: Alkaline
- Wi-Fi Compatibility: No
- Works with Android: No
- Works with iOS: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
- UNSPSC: 41113600
