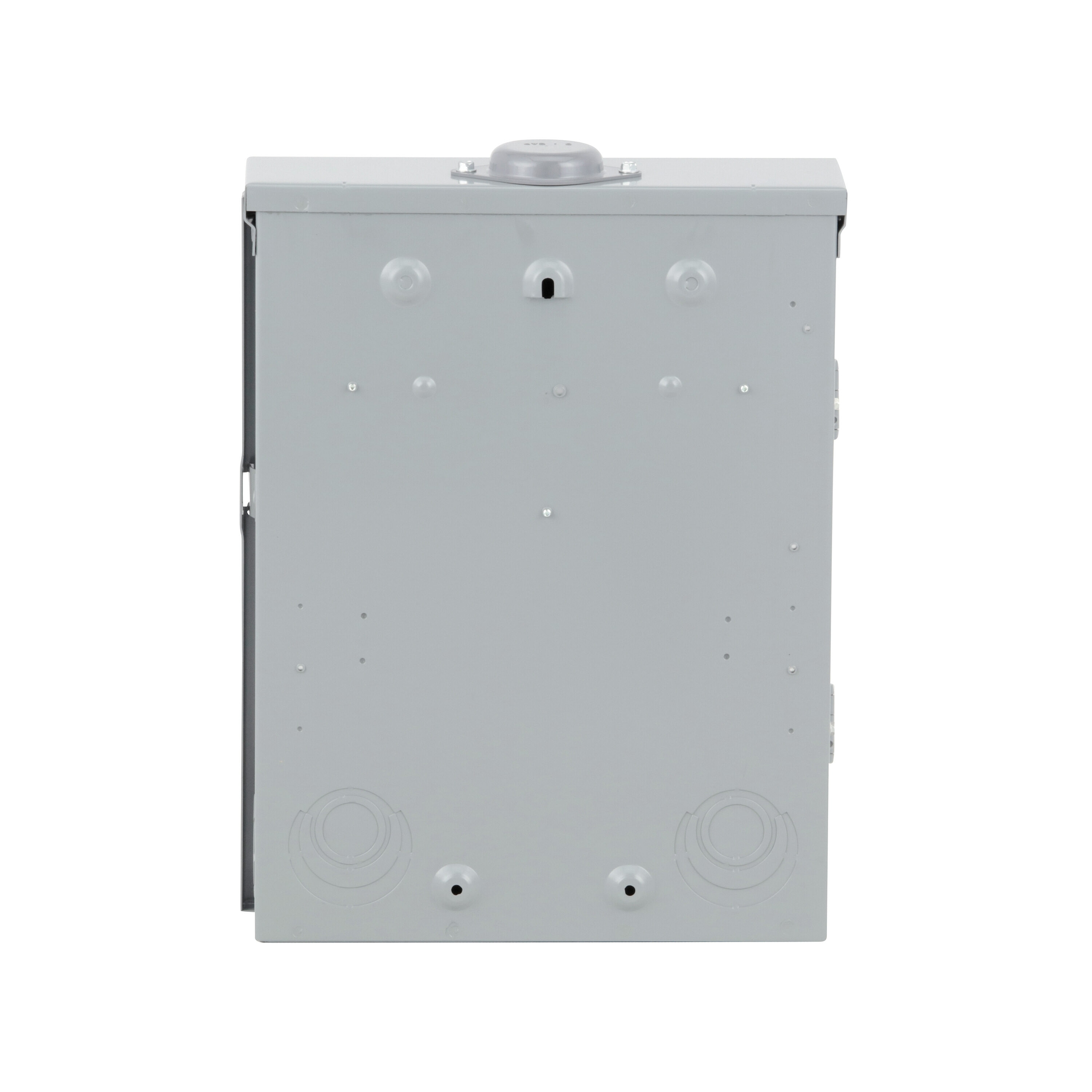

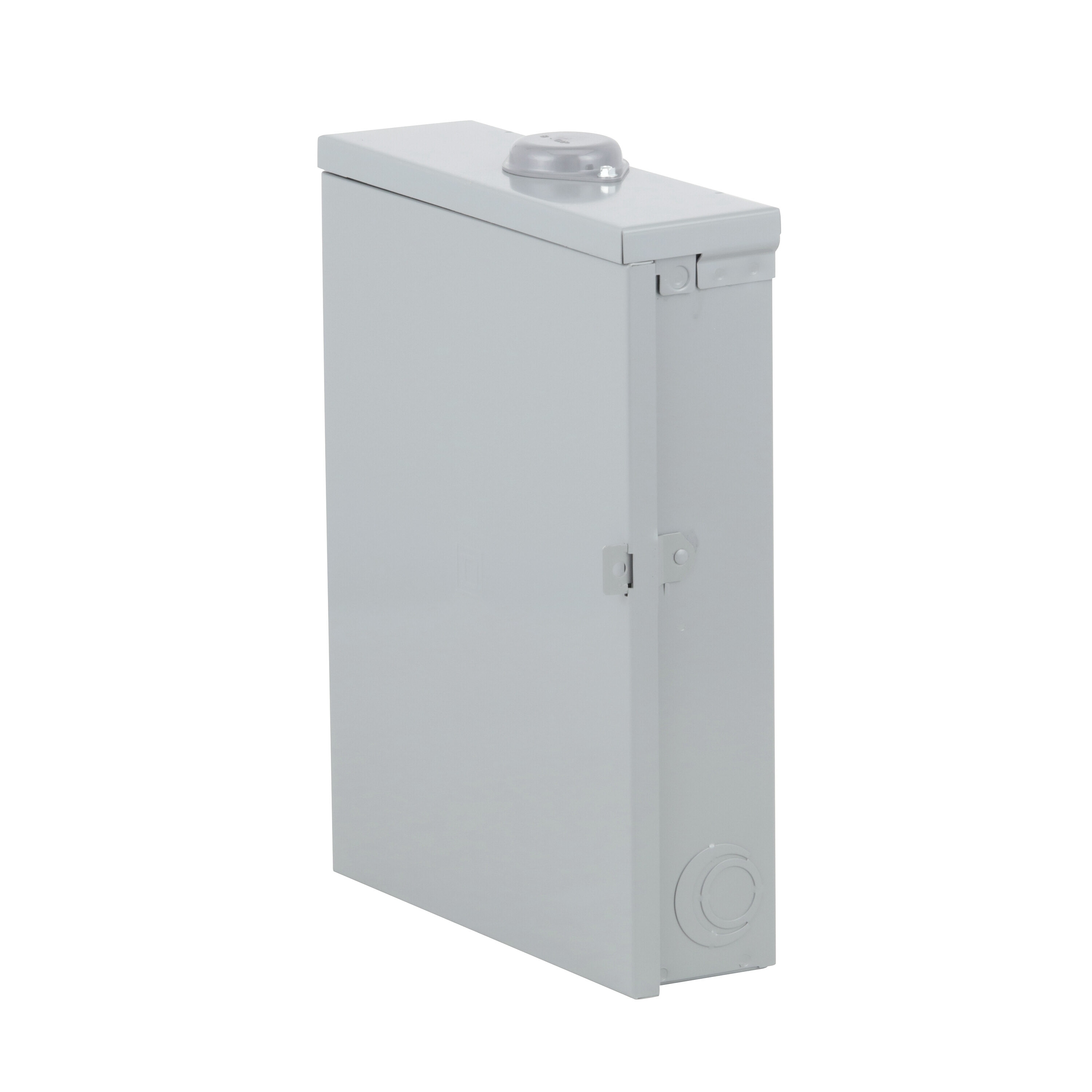

The Square D Homeline 125 Amp 8-Space 16-Circuit Outdoor Convertible Main Lugs Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
Manufacturer Color/Finish: Gray
Series Name: Homeline
Type: Convertible main lug

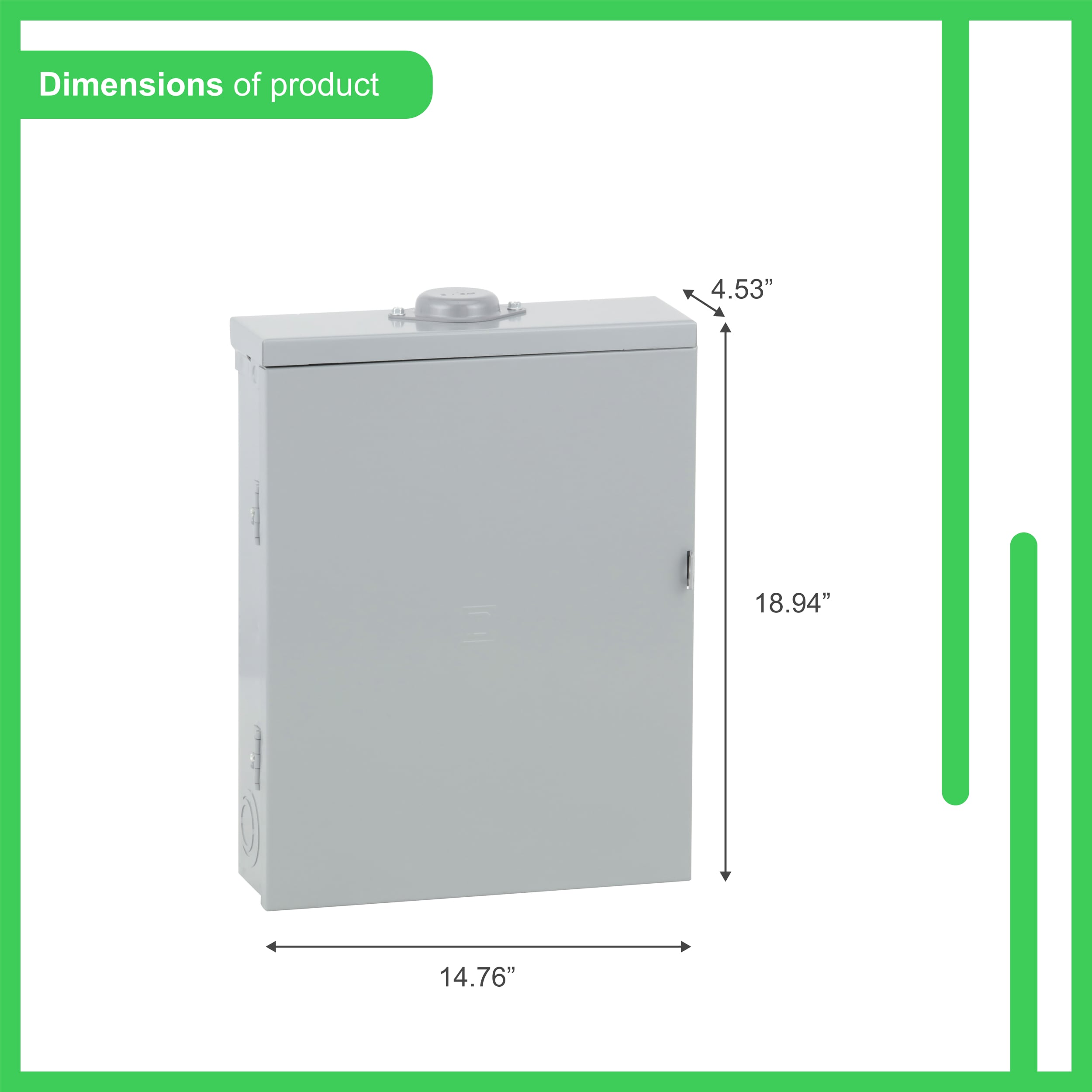

Depth (Inches): 4.52
Height (Inches): 18.92
Width (Inches): 14.75
Amperage: 125
Buss Bar Construction: Aluminum
Circuits: 16
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: No
Mounting Type: Surface
Number of Spaces: 8
Orientation: Over/Under
Paintable: No
Phase Type: Single phase (120/240)
Plug-On Neutral: Yes
Usage: Service entrance
Use Location: Outdoor
Value Pack: No
Value Pack Contents: Includes load center and cover
Brand/Model Compatibility: Square D Homeline Brand Only
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: UL safety listing
Warranty: 18-month limited
UNSPSC: 39121100
