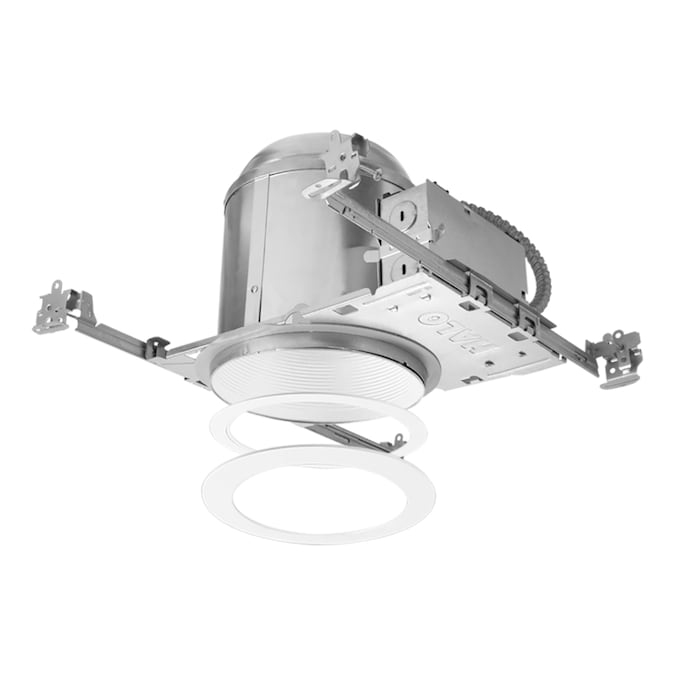

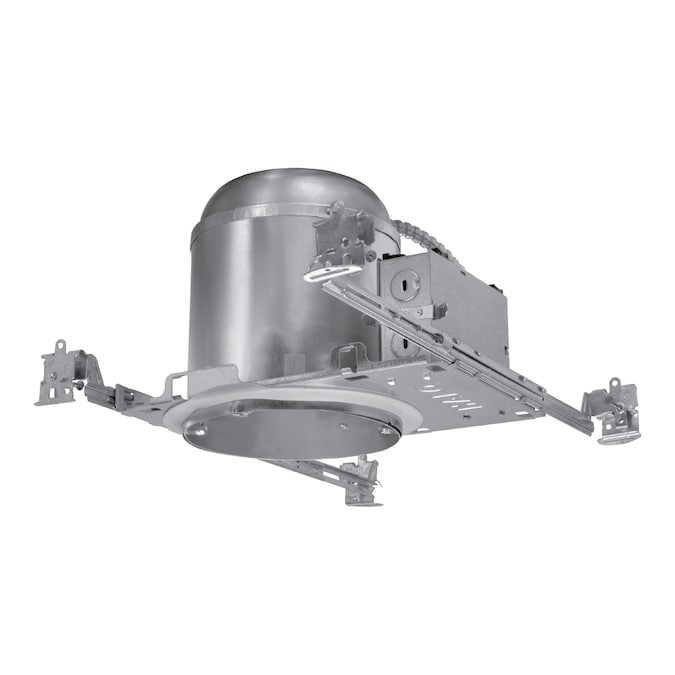

The HALO H7ICAT kit includes 6 Air-Tite™ recessed housings and 6 white baffle recessed trims for both commercial and residential applications. Several features make this full-frame design optimal for installations where the housing will be in direct contact with insulation, and its Air-Tite™ design will also meet restricted air flow code requirements. The Got Nail!™ bar hanger bracket includes pre-installed nails that easily install in lumber and beams, safety and guidance system as well as automatic leveling. The Pass-N-Thru™ feature allows bars to cross-over for tool-less shortening in tight spaces less than 12 in. without removing from the plaster frame. The Slide-N-Side™ connectors allow non-metallic sheathed cable for both U.S. and Canada to be installed without tools and without removing knockouts. Lastly, the quick connect wiring connectors are included in junction box.

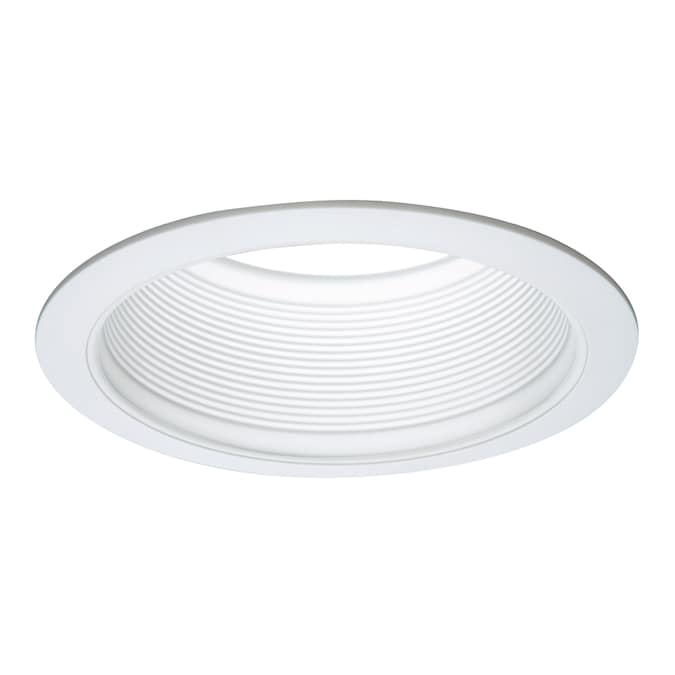

- Kit includes 6 recessed can light housings and 6 white baffle recessed trims
- Air-tite, prevents airflow between attic and living areas; Insulation contact (IC) rated, recessed housing can touch and be covered with insulation
- Wet location approved for safe use when used with select recessed lights
- Compatible with a wide variety of 6 in recessed lights but is best with HALO 426, 420, 353, 310, 301, 172, 78, 71, 70 and 30 series models
- Compatible with a wide variety of 6 in LED retrofit recessed light trims but is best with HALO quality RL, RA, SLD, LT, SMD and ML series models
- Socket plug provides protection against paint over spray

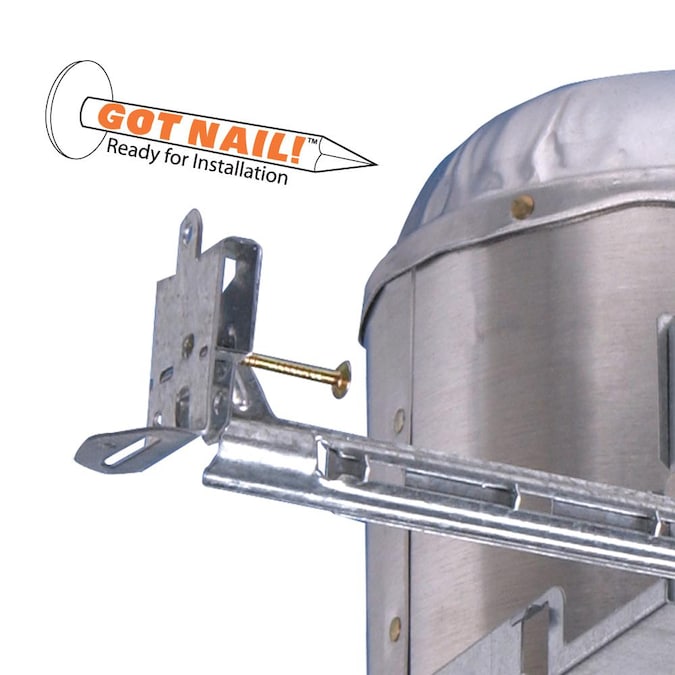

- Got Nail!™ bar hangers for easy installation; pre-installed nail easily installs in regular lumber, engineered lumber and laminated beams

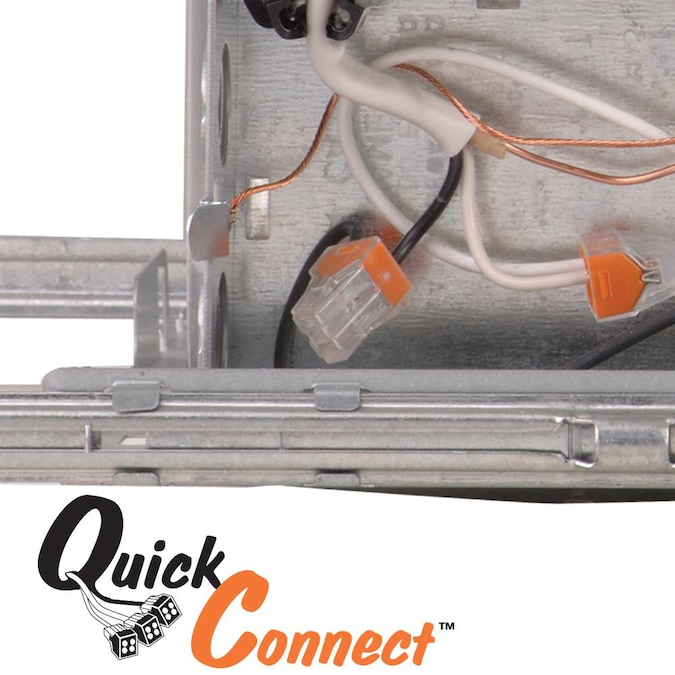

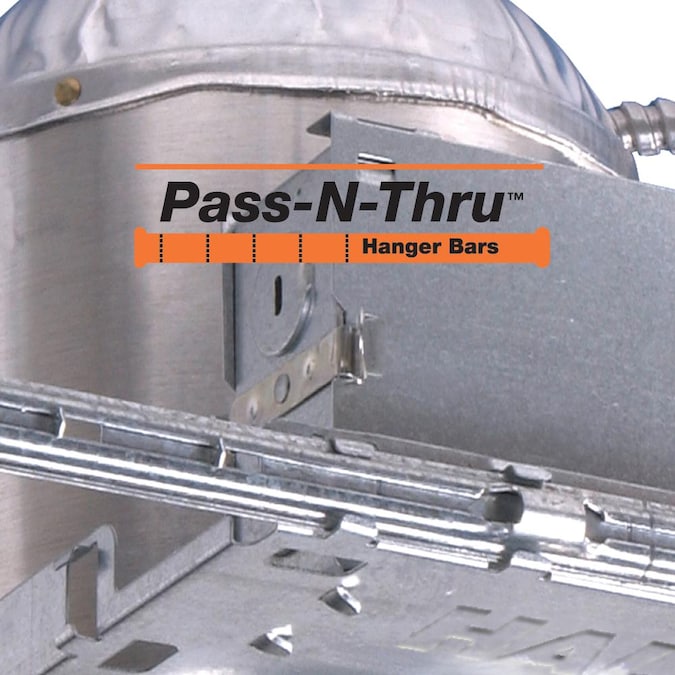

- Pass-N-Thru™ tool-less shortening of bar hangers; Slide-N-Side™ wire traps; 3 Quick Connect™ connectors eliminate the need for separate wire nuts
- Built-in thermal protector provides protection against misuse of insulation materials and improper/over lamping

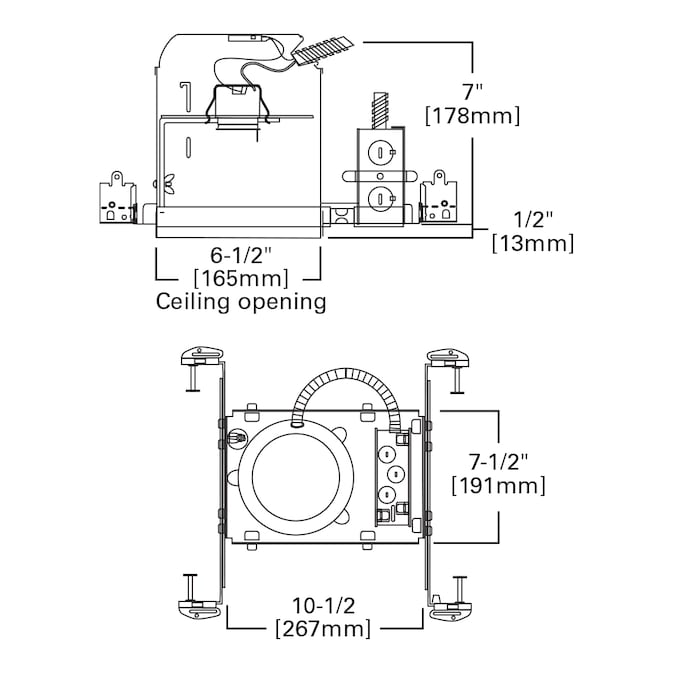

Dimensions
- Actual Diameter (Inches): 6.5
- Common Diameter (Inches): 6
- Depth-Adjustable Socket: Yes
- Minimum Depth Required (Inches): 7
Features
- Airtight Seal: Yes
- Light Bulb Base Type: Medium base (E-26)
- Maximum Bulb Wattage: 75
- Number of Bulbs Required: 6
- Package Quantity: 6
- Project Type: New construction
- Recommended Light Bulb Shape: PAR30
- Specialty Type: LED
- Warranty: 1-year limited
Compatibility
- IC-Compatible: Airtight IC
Certifications
- CA Residents: Prop 65 Warning(s): No
- ENERGY STAR Certified: No
- Safety Listing: cULus safety listing
- Title 24 Compliant: No
Miscellaneous
- UNSPSC: 39111500
