The GE PowerMark Gold 200 Amp 32-space 40-circuit main breaker indoor circuit breaker panel contractor value kit is pre-packaged with a selection of circuit breakers. The unit has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs and standard circuit breakers.
- The contractor value kit includes a 200 AMP indoor main breaker circuit breaker panel and 3 THQP120 20 Amp single-pole circuit breakers and 1 THQP230 30 Amp double-pole half inch circuit breaker
- The circuit breaker panel includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability
- The one-piece interior removes and re-installs easily
- Main breaker is factory installed

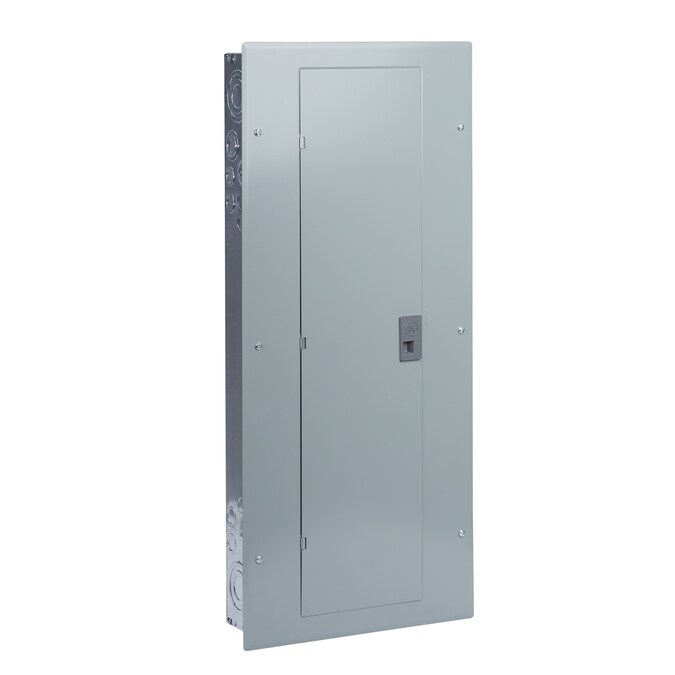

- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire
- Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
- The warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first
General
- Manufacturer Color/Finish: Gray
- Series Name: PowerMark Gold
- Type: Main breaker
Dimensions

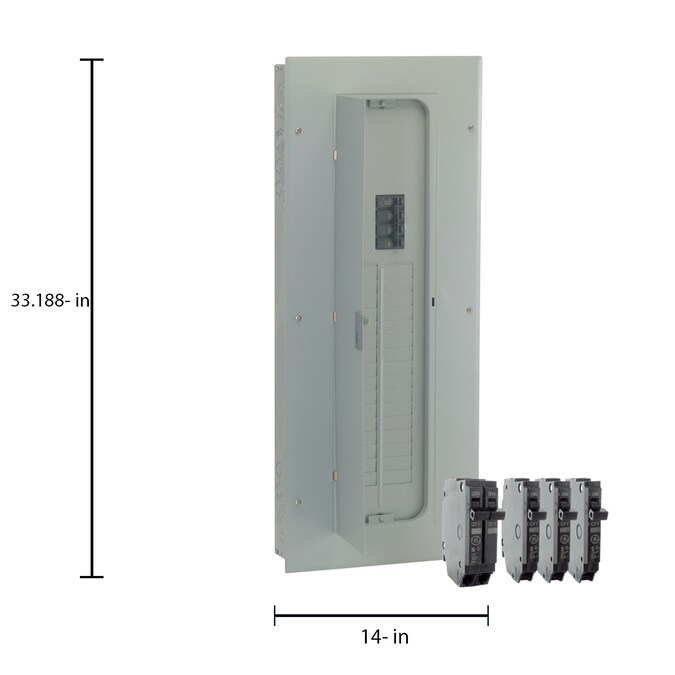

- Depth (Inches): 3.75
- Height (Inches): 33.188
- Width (Inches): 14
Features
- Amperage: 200
- Buss Bar Construction: Copper
- Circuits: 40
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Combination
- Number of Spaces: 32
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: Yes
- Value Pack Contents: Kit includes 200A indoor main breaker load center and 3 THQP120 20 Amp single-pole circuit breakers and 1 THQP230 30 amp double-pole circuit breaker
Compatibility
- Brand/Model Compatibility: Accepts Q-Line THQL standard, GFCI and AFCI circuit breakers, including GE’s exclusive 1/2-in THQPs
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
