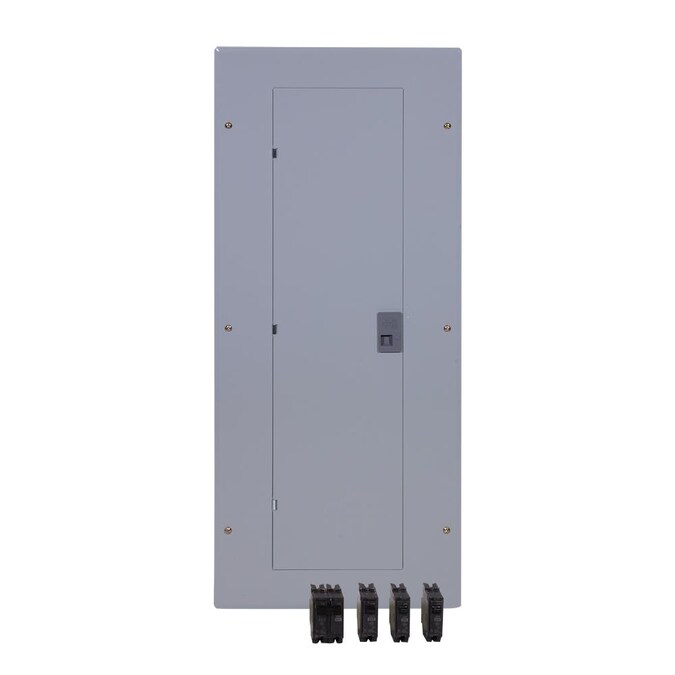

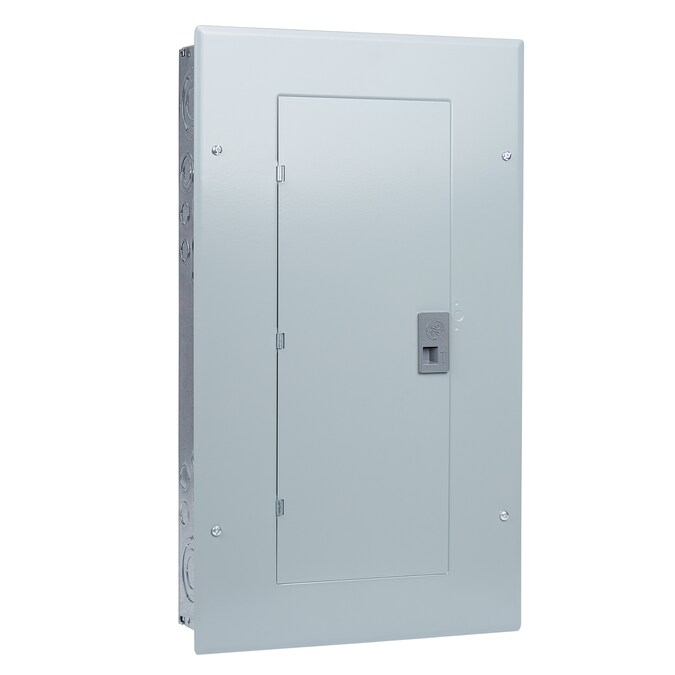

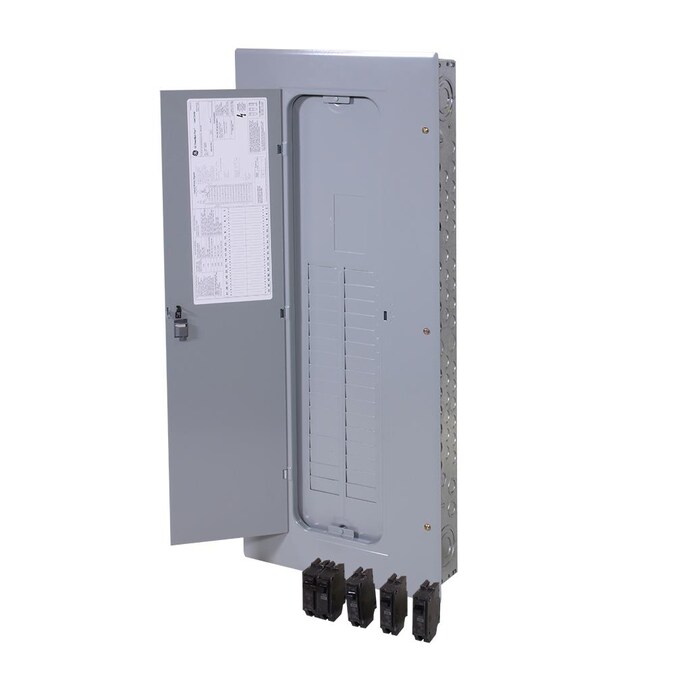

This GE value kit includes four 20 Amp single pole THQL 1 in. circuit breakers. The 125 Amp indoor circuit breaker panel includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface or flush front. Top or bottom feed. GE load centers are UL Listed and ANSI certified.
- Indoor NEMA 1 enclosure
- Main lugs are factory installed; convertible to main breaker
- Includes equipment ground kit and four 20 Amp breakers

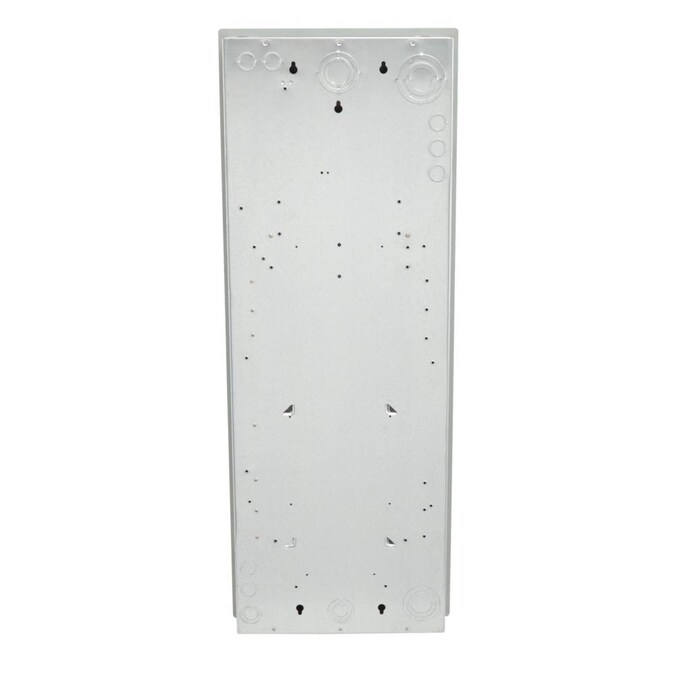

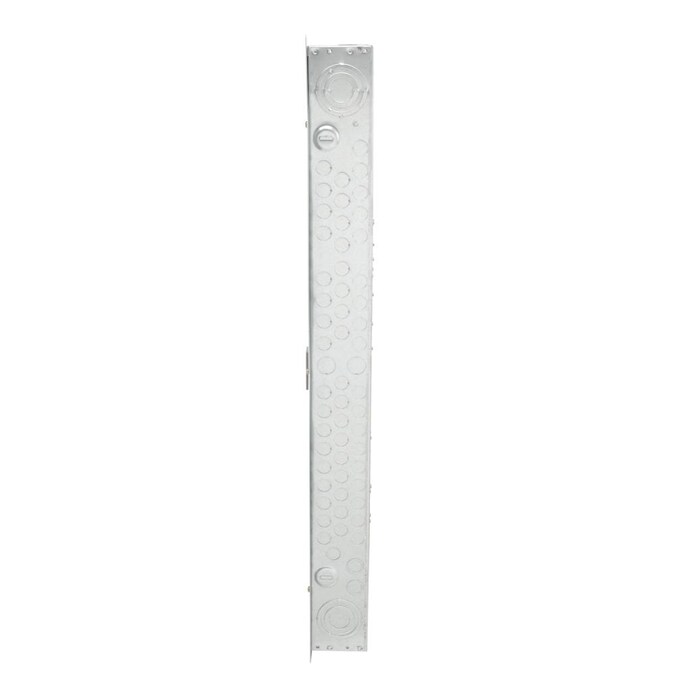

- Rust-resistant galvanized box
- Highly conductive copper buss bar

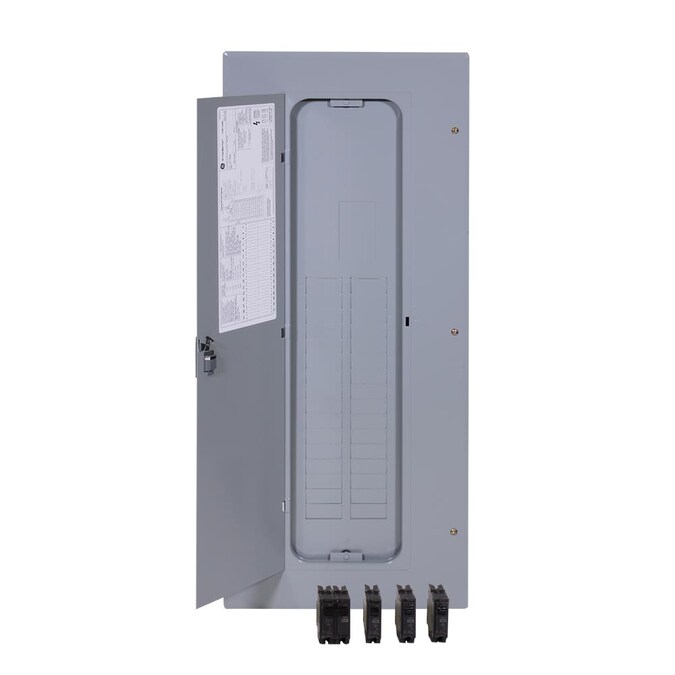

- Full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers

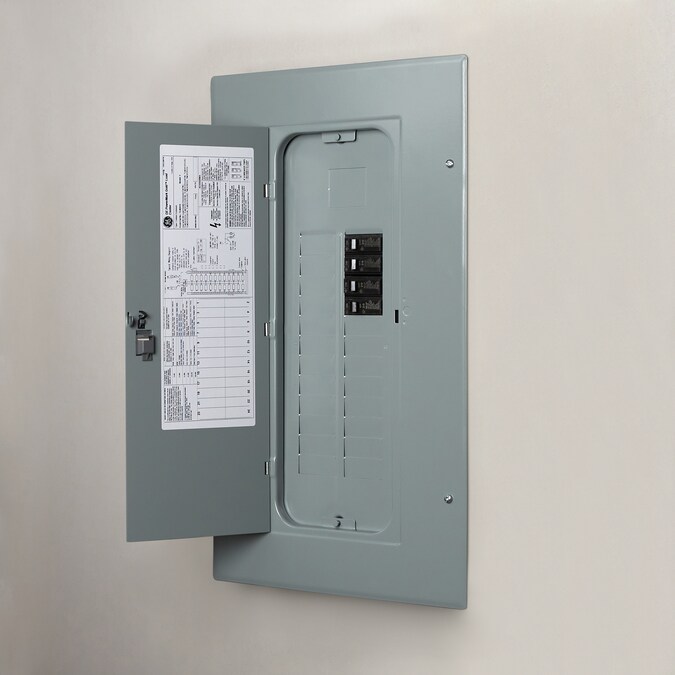

- Indoor fronts for surface or flush installation
- 100% rated split neutral on each side
General
- Manufacturer Color/Finish: Gray
- Series Name: PowerMark Gold
- Type: Convertible main lug

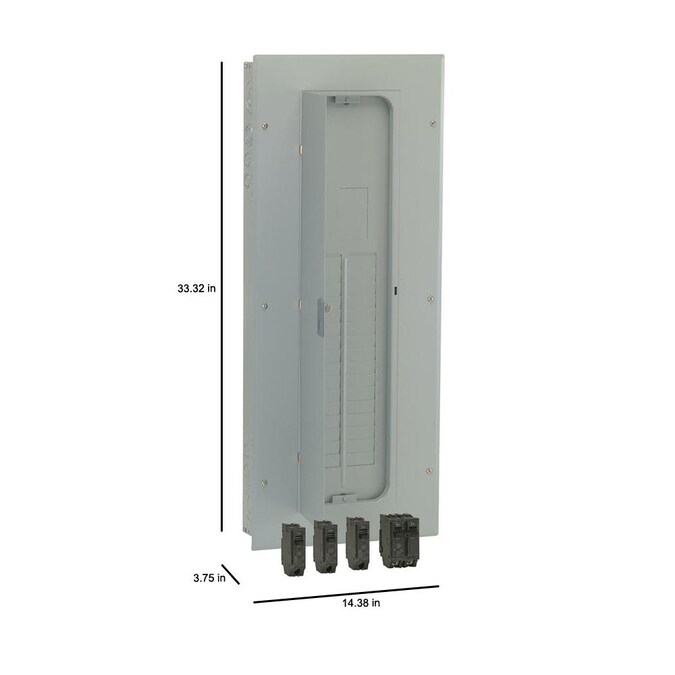

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 24.688
- Width (Inches): 14
Features
- Amperage: 125
- Buss Bar Construction: Copper
- Circuits: 24
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: Yes
- Mounting Type: Combination
- Number of Spaces: 24
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: Yes

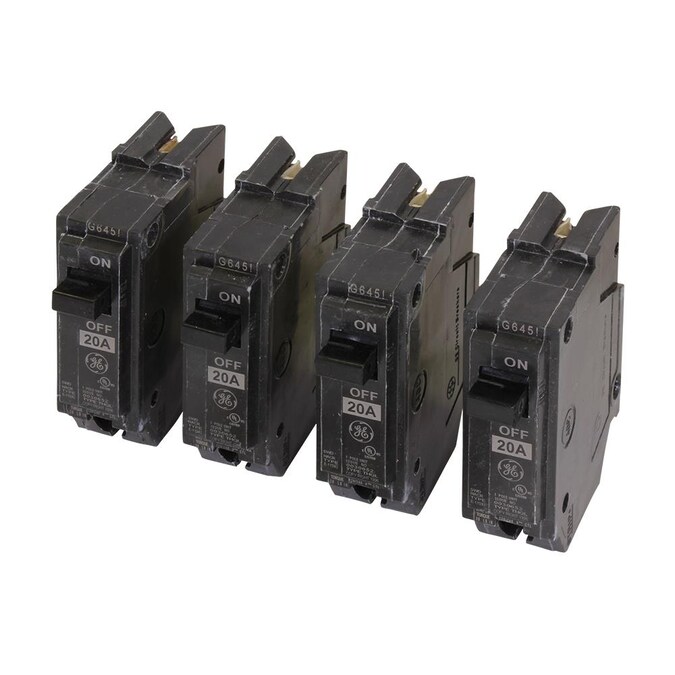

- Value Pack Contents: Value kit includes 4 THQL1120 single-pole 20 Amp circuit breakers and one 24-hole ground bar kit
Compatibility
- Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
Warranty
- Warranty: 1-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
