This value kit includes 3 20 Amp Single-Pole THQL 1 in. Circuit Breakers and a Ground Bar. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.

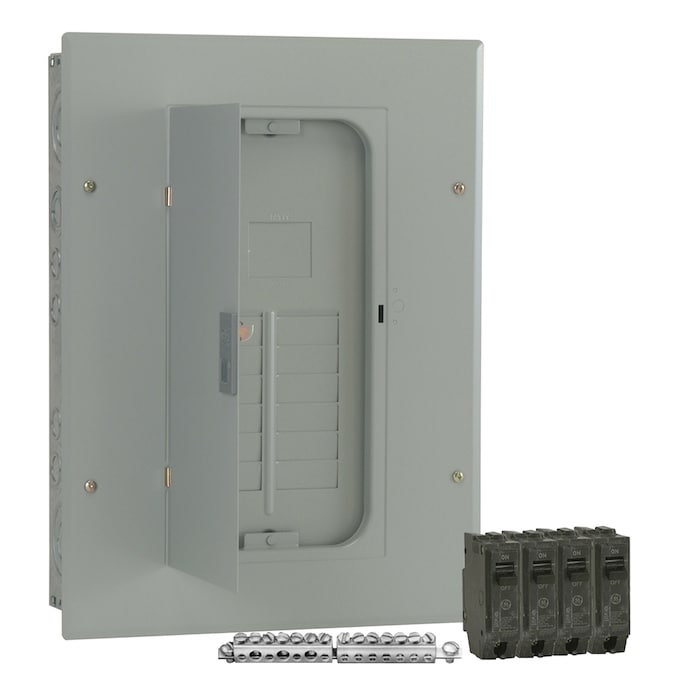

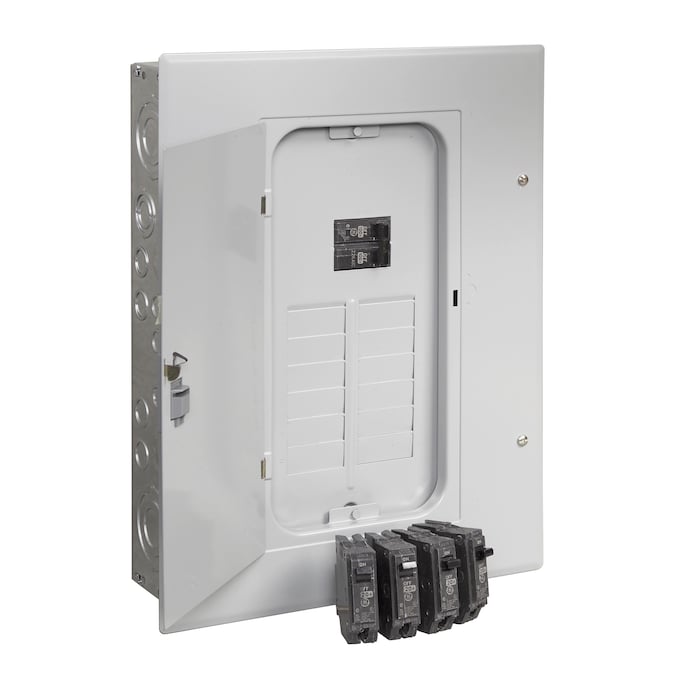

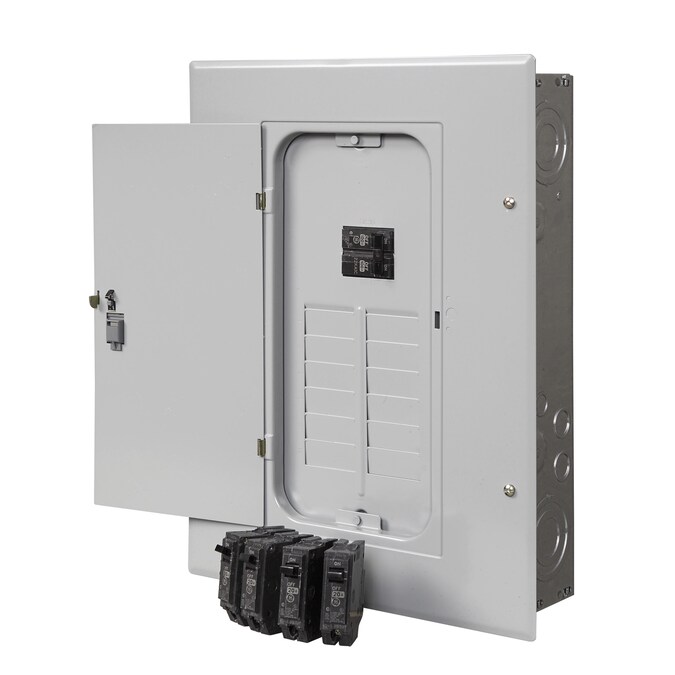

- Value kit includes a PowerMark Gold 100 Amp main breaker indoor circuit breaker panel, 4 20 Amp single pole THQL 1 in circuit breakers and 1 equipment ground kit
- Main breaker is factory installed
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire
- Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
- Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
- Meets UL and ANSI safety requirements
- The warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first
General
- Manufacturer Color/Finish: Gray
- Series Name: PowerMark Gold
- Type: Main breaker
Dimensions
- Depth (Inches): 3.375
- Height (Inches): 16
- Width (Inches): 14
Features
- Amperage: 100
- Buss Bar Construction: Copper
- Circuits: 12
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: Yes
- Mounting Type: Combination
- Number of Spaces: 22
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: Yes
- Value Pack Contents: GE PowerMark Gold TM1210CCU 100 Amp main breaker indoor load center, 4 20 Amp single pole THQL 1 in. circuit breakers and 1 equipment ground kit
Compatibility
- Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
Warranty
- Warranty: 1-year
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
