The GE 100 Amp 20-Space 20-Circuit Main Breaker Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.

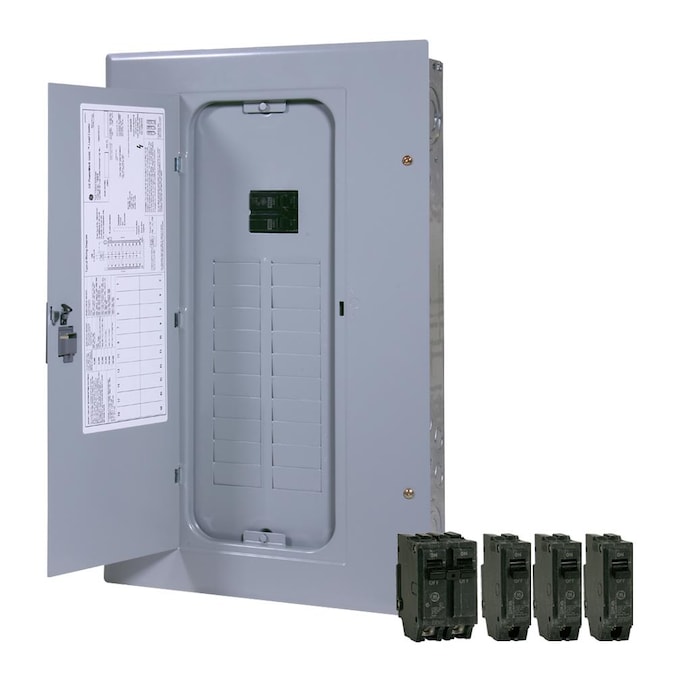

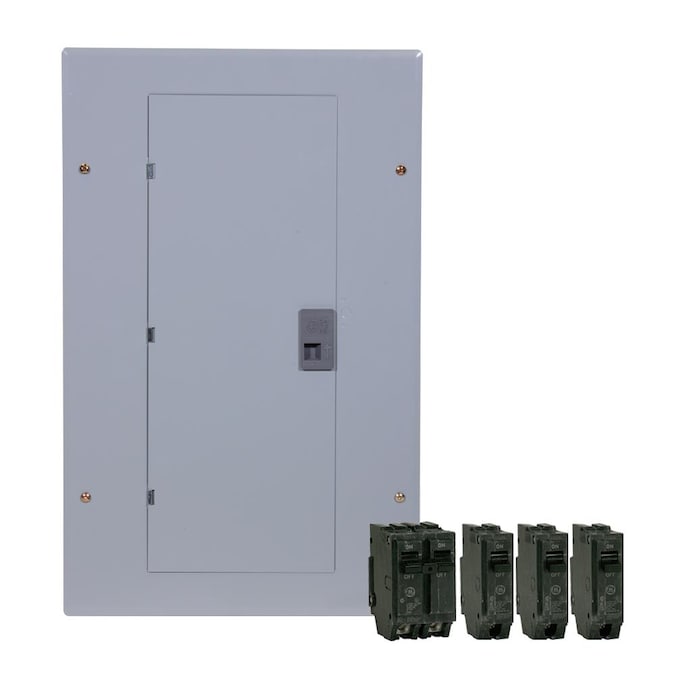

- Value kit includes a PowerMark Gold 100 Amp 20-space 20-circuit indoor main breaker circuit breaker panel, 3 20 Amp single pole and 1 30 Amp double pole 1 in circuit breakers
- Main breaker is factory installed
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire
- Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
- Compatible with GE THQL, GFCI and AFCI circuit breakers
- Meets UL and ANSI safety requirements
General
- Manufacturer Color/Finish: Gray
- Series Name: PowerMark Gold
- Type: Main breaker
Dimensions
- Depth (Inches): 3.75
- Height (Inches): 23.13
- Width (Inches): 14.38
Features
- Amperage: 100
- Buss Bar Construction: Copper
- Circuits: 20
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Surface
- Number of Spaces: 20
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (120/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: Yes
- Value Pack Contents: GE PowerMark Gold 100 Amp main breaker indoor circuit breaker panel, 3 20 Amp single pole and 1 30 Amp double pole 1 in. circuit breakers
- Warranty: 1-year
Compatibility
- Brand/Model Compatibility: Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
