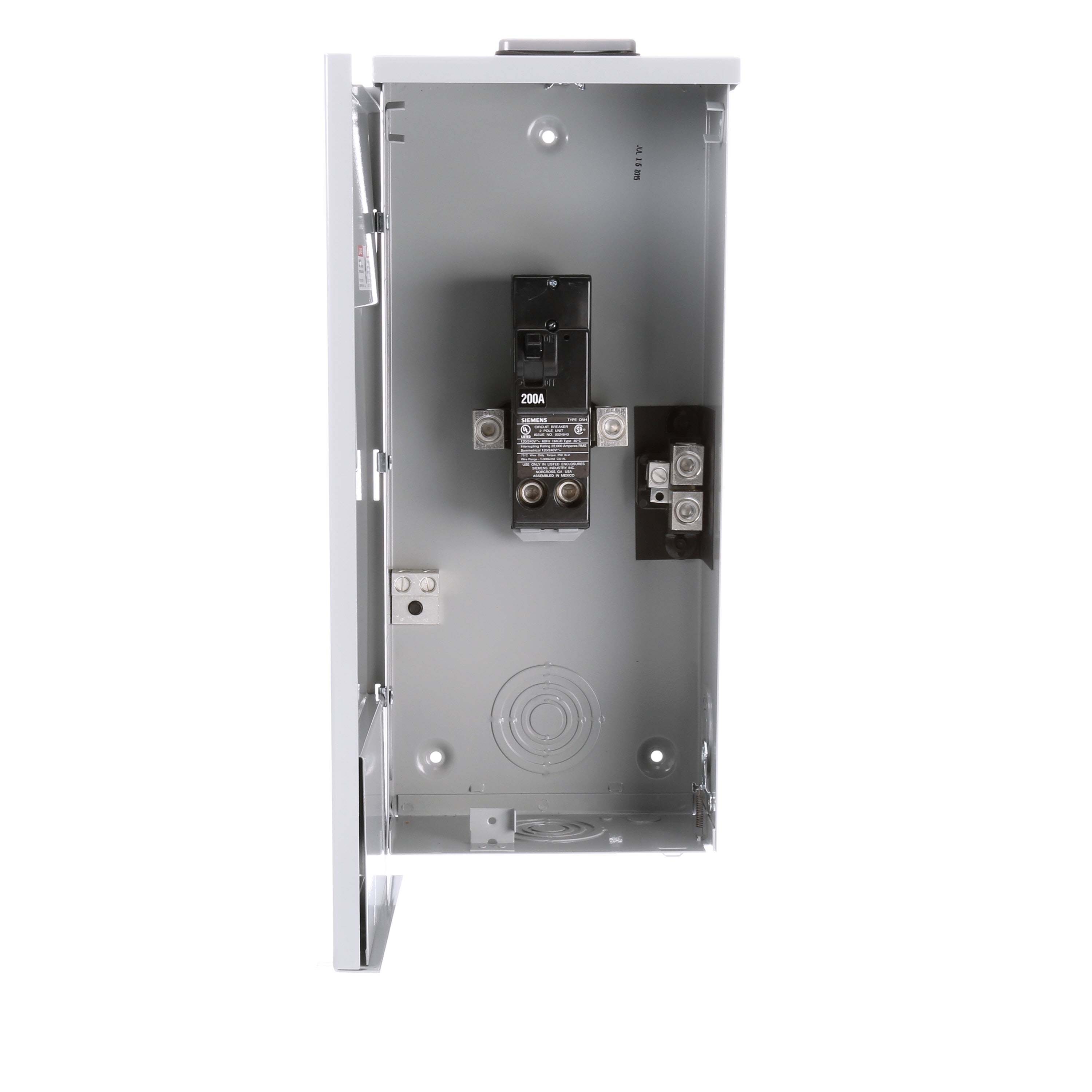

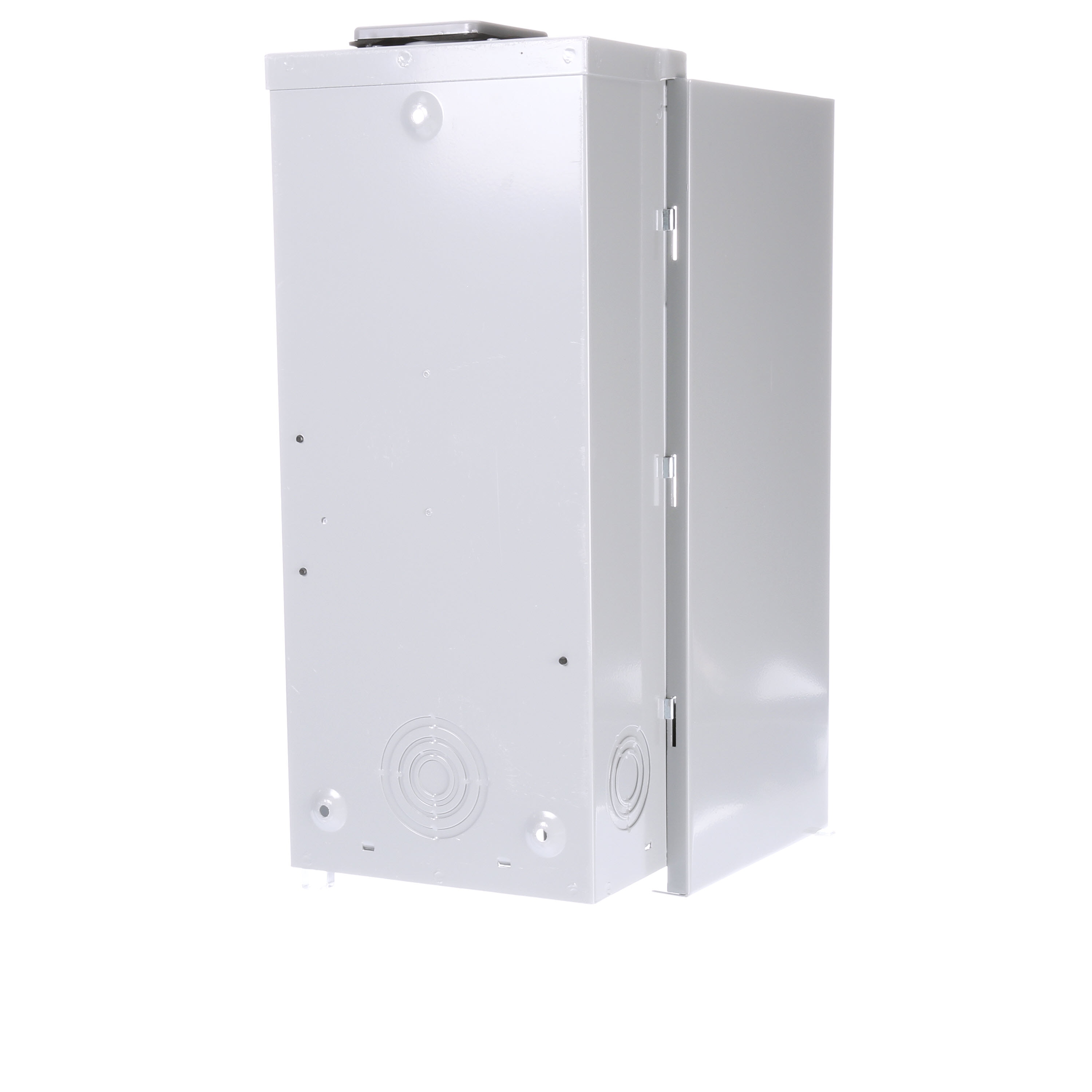

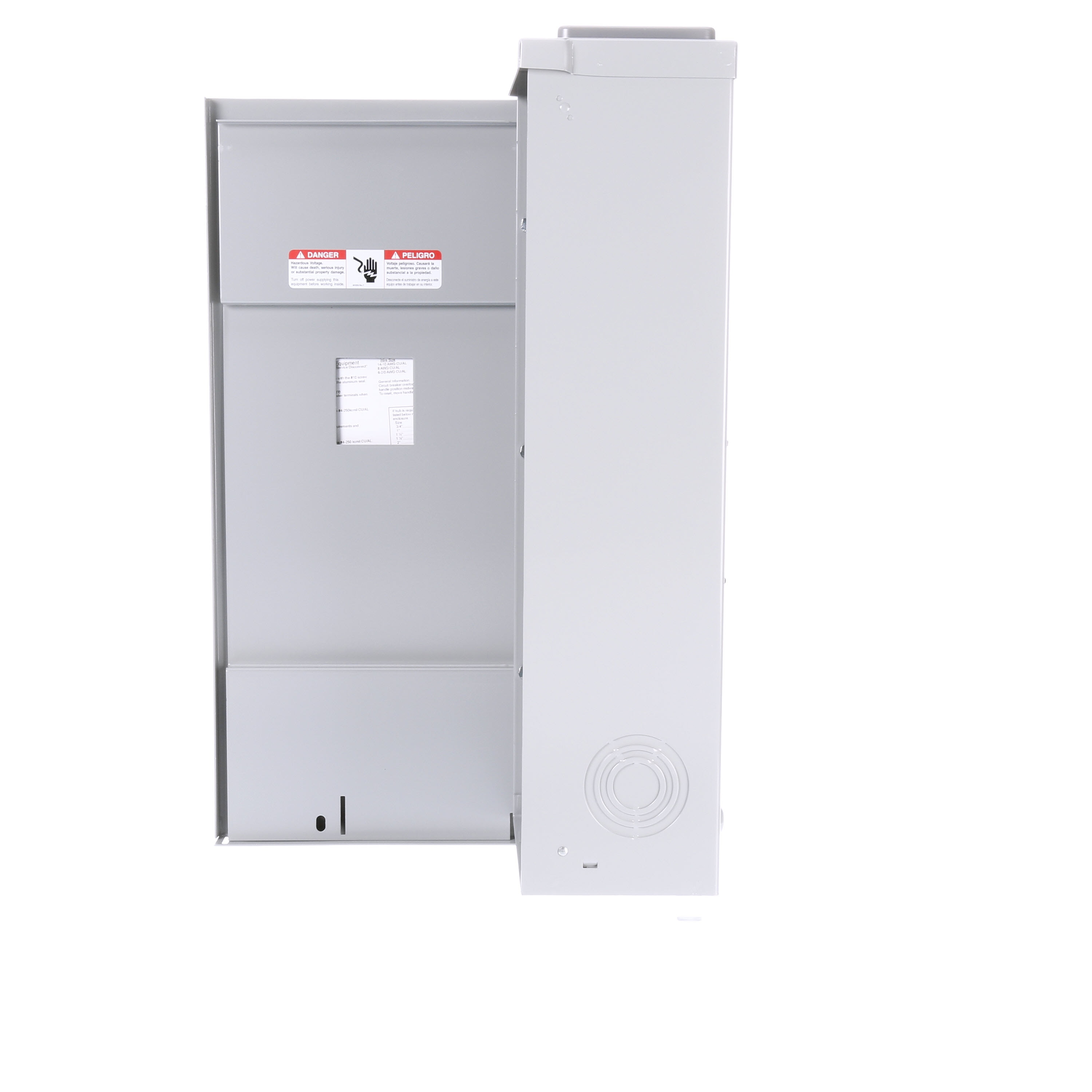

This 2-Space 2-Circuit type EQ Load Center features copper bus bars for increased conductivity. Includes a factory installed 200 Amp main breaker for overload and short-circuit protection. For use in outdoor applications.
Manufacturer Color/Finish: Gray
Series Name: EQ
Type: Main breaker
Depth (Inches): 5
Height (Inches): 19.8
Width (Inches): 8.7
Amperage: 200
Buss Bar Construction: Copper
Circuits: 2
Cover Included: Yes
Feed-Through Lugs: Yes
Ground Bar Installed: No
Mounting Type: Surface
Number of Spaces: 2
Orientation: Over/Under
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Sub-panel
Use Location: Outdoor
Value Pack: No
Voltage: 120
Brand/Model Compatibility: Siemens
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 10-year
UNSPSC: 39121100
