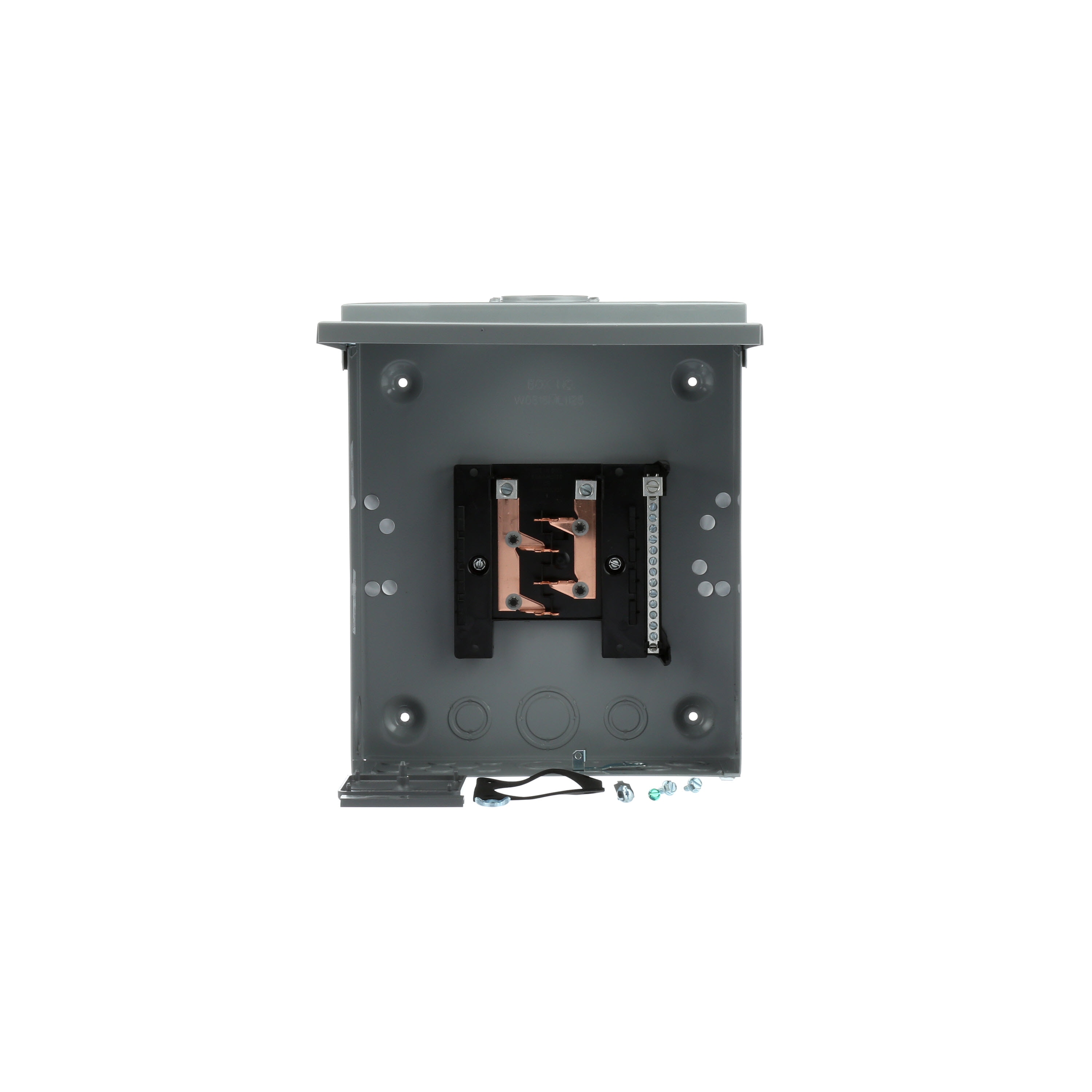

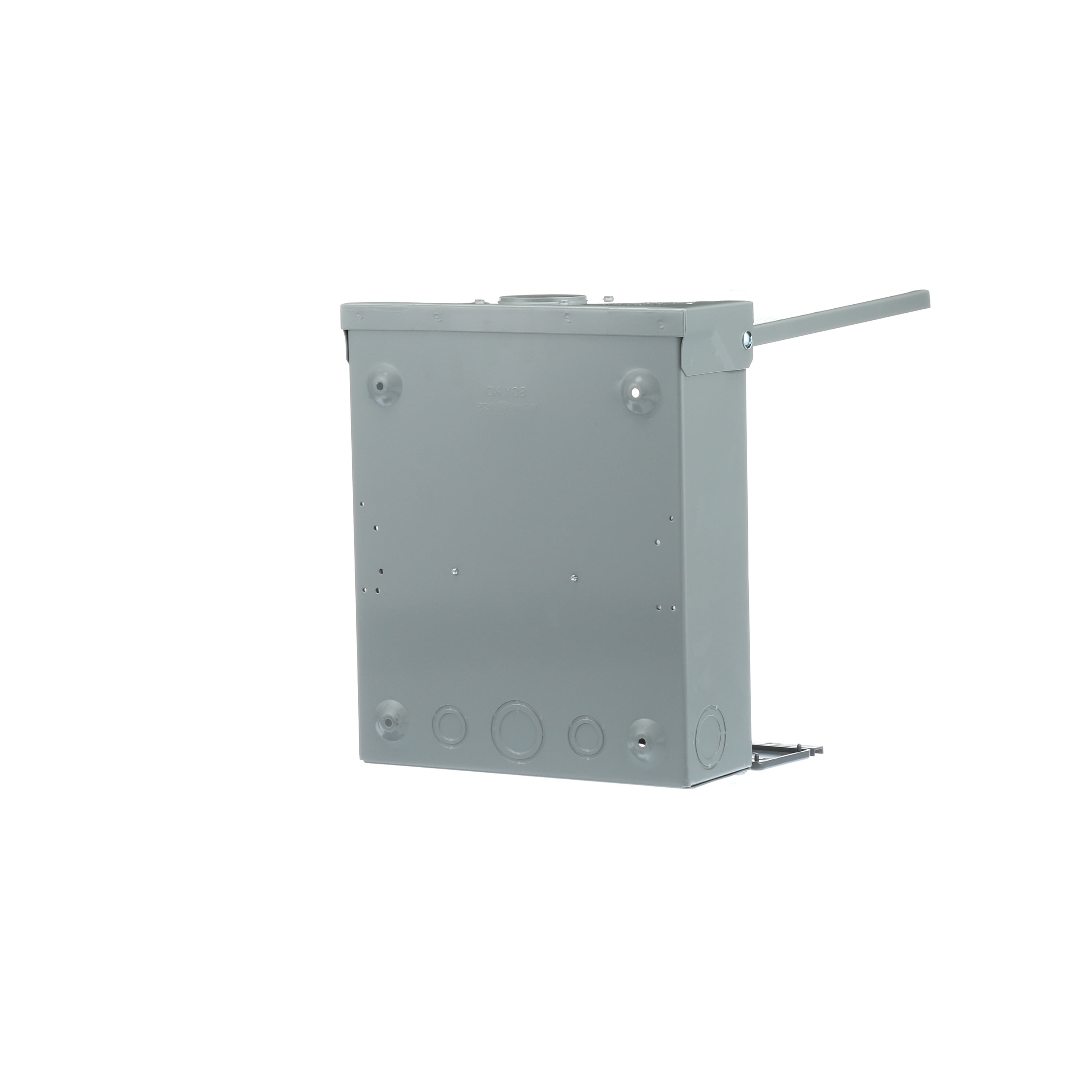

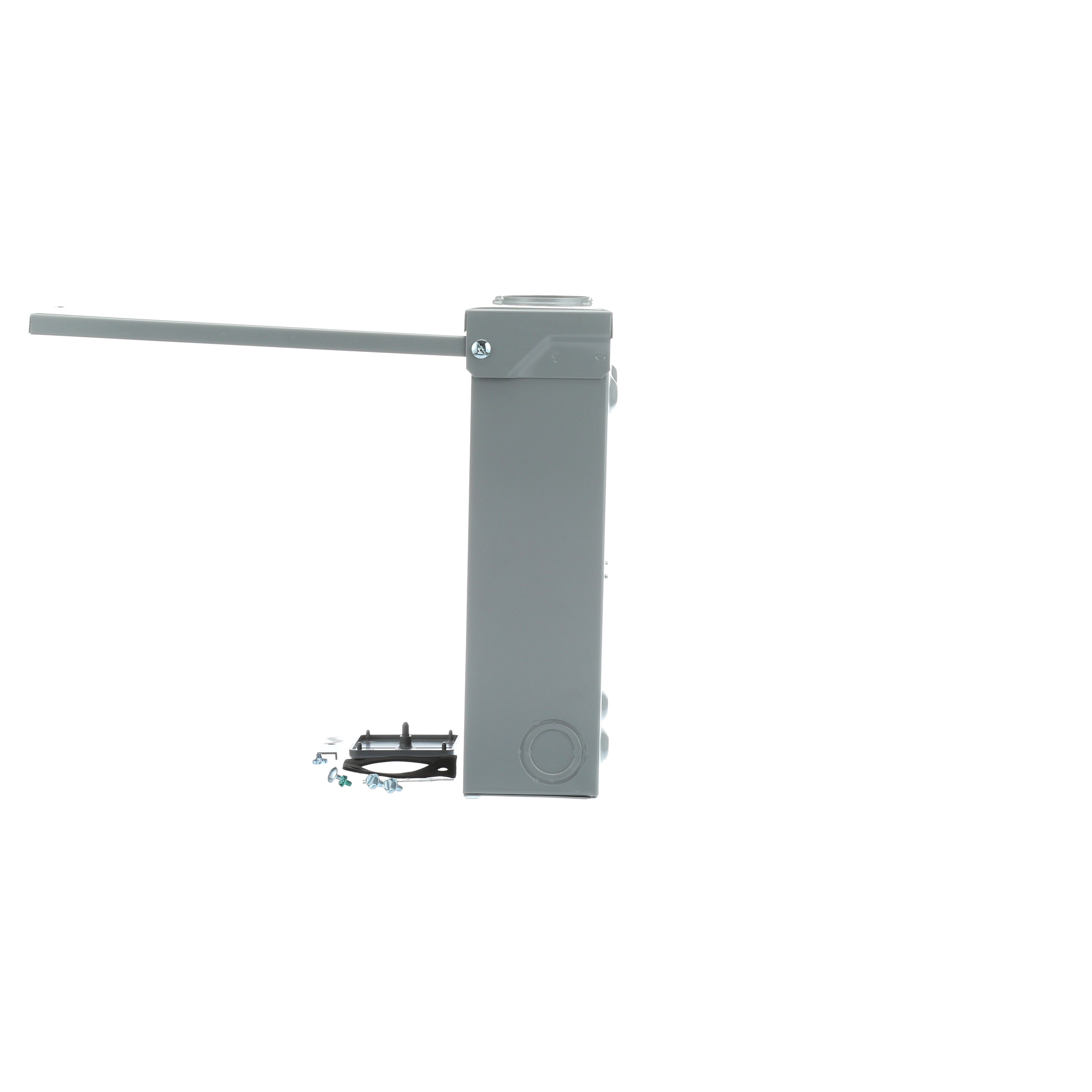

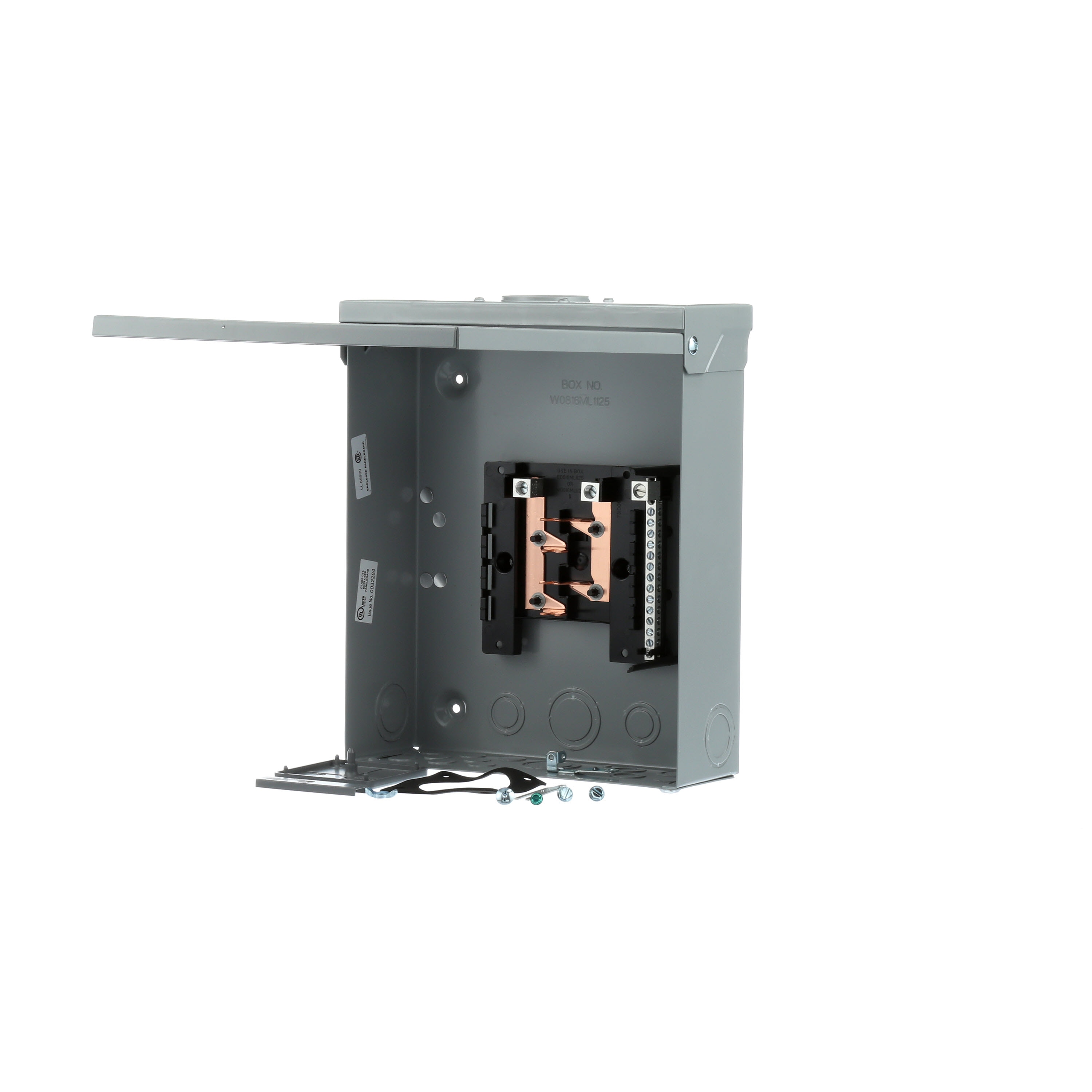

The Siemens EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center is NEMA 3R rated for outdoor use and has a hinged door that can be removed by backing-out 1 screw. The load center features a 1-piece copper buss bar that offers excellent conductivity and is ideal for use where the environment can become severe, such as on farms and near coastal areas. Suitable for use as service equipment when a main breaker (125 Amp maximum) is back-fed in a branch position and used with main breaker retainer clip.
Manufacturer Color/Finish: Gray
Series Name: EQ
Type: Main lug

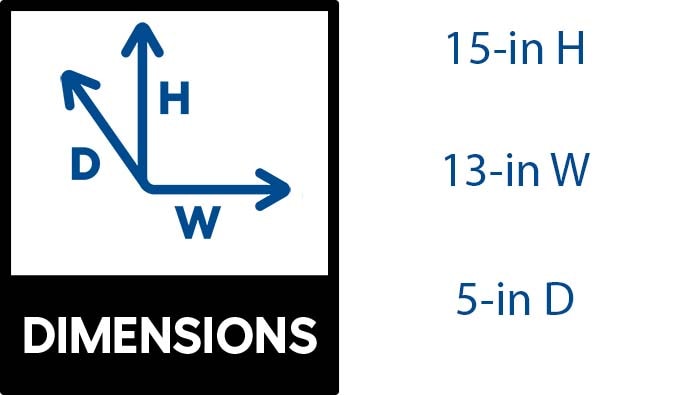

Depth (Inches): 4.1
Height (Inches): 14.7
Width (Inches): 12.1
Amperage: 125
Buss Bar Construction: Copper
Circuits: 16
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: No
Mounting Type: Surface
Number of Spaces: 8
Orientation: Over/Under
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Sub-panel
Use Location: Outdoor
Value Pack: No
Voltage: 120
Brand/Model Compatibility: Siemens
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 10-year
UNSPSC: 39121100
