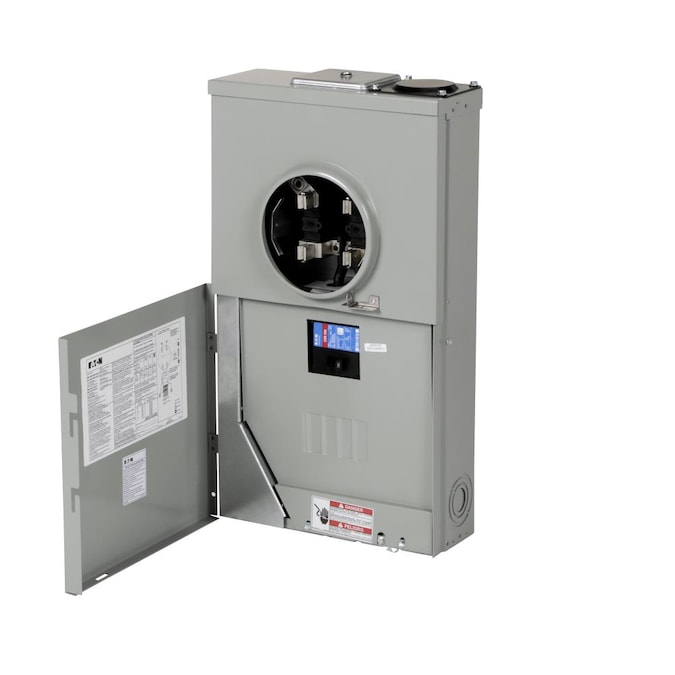

Eaton’s meter breakers combine a single meter socket and a main circuit breaker and/or loadcenter into one enclosure. Certain utilities will specify a meter breaker instead of a meter socket and loadcenter. The meter breaker is used where electricity enters a home or dwelling. The utility attaches a meter in the socket to measure power consumption. The loadcenter portion is used to distribute the power throughout the home using various circuits. Eaton offers a variety of designs to meet local utility specifications. UL listed.
- This is a Non-EUSERC meter breaker panel
- Single meter socket and loadcenter
- Surface mount/cover included
- Overhead/underground service
- This panel has 4 spaces and 8 circuits
- Steel backpan for reliable breaker mounting
- Contains commercial grade circuit breaker, CSR2200
General
- Manufacturer Color/Finish: Gray
- Series Name: Type BR
- Type: Main breaker meter combo
Dimensions
- Depth (Inches): 4.94
- Height (Inches): 25.5
- Width (Inches): 14.44
Features
- Amperage: 200
- Buss Bar Construction: Aluminum
- Circuits: 8
- Cover Included: Yes
- Feed-Through Lugs: Yes
- Ground Bar Installed: No
- Mounting Type: Surface
- Number of Spaces: 4
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (124/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Outdoor
- Value Pack: No
- Value Pack Contents: N/A
- Warranty: 10-year limited
Compatibility
- Brand/Model Compatibility: Fits Most
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
