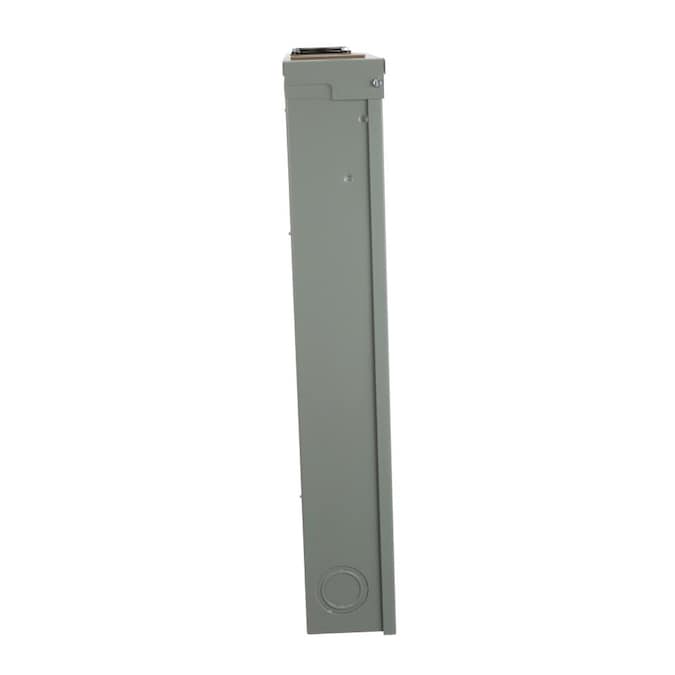

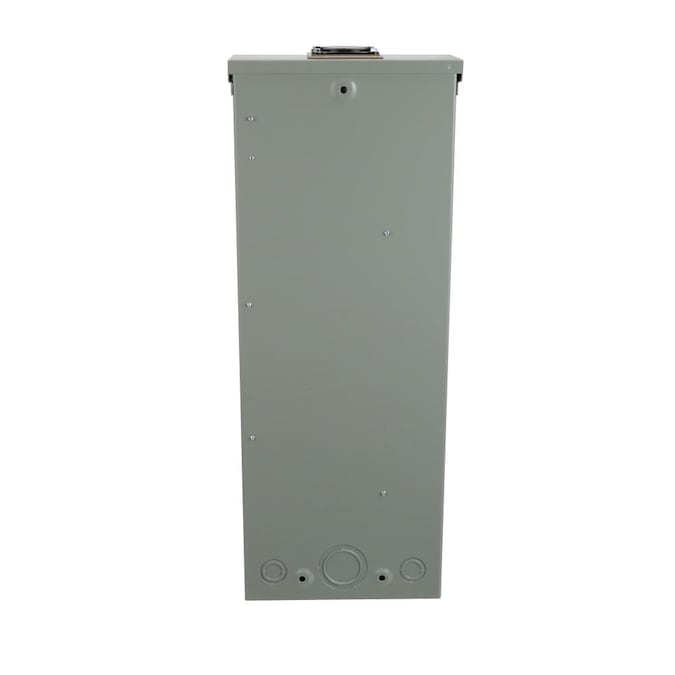

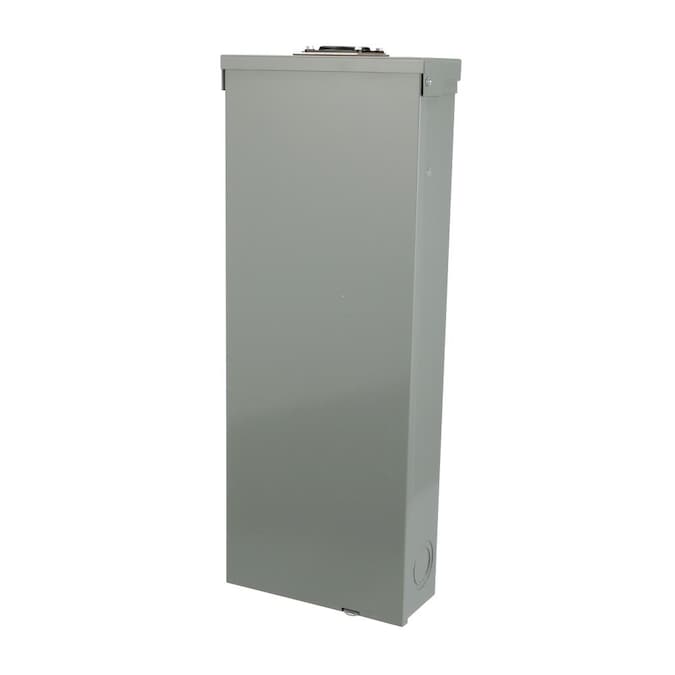

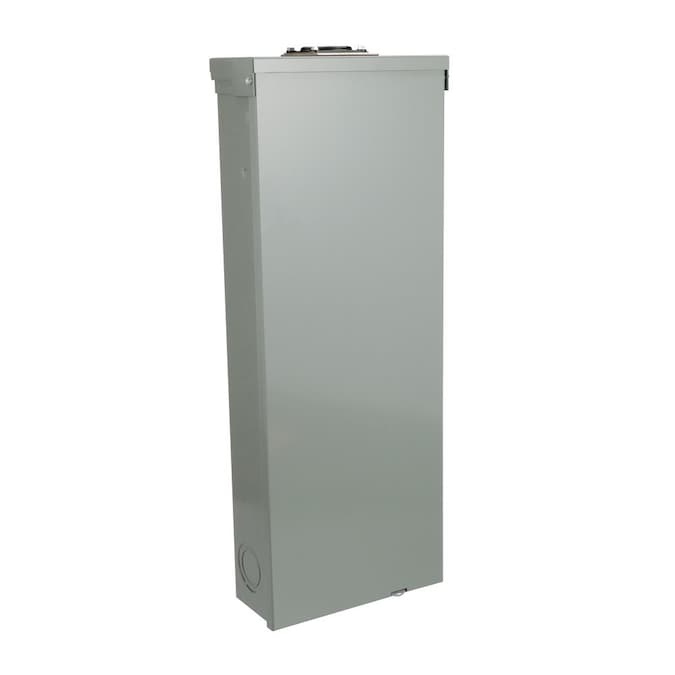

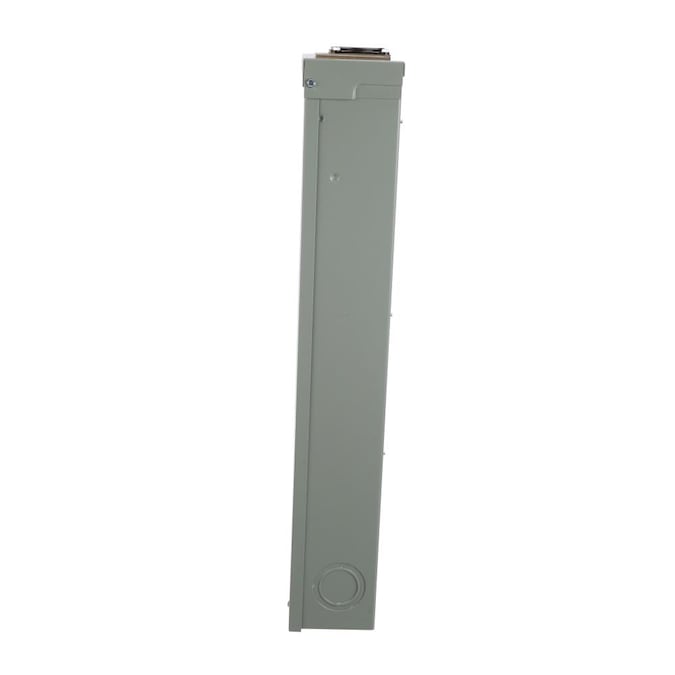

Eaton Type BR 200-Amp 4-Spaces 8-Circuit Outdoor Main Breaker Load Center

• Eaton Type BR 200 Amp panels feature commercial grade main breaker for superior protection
• Neutral is bonded—suitable for service entrance only—cannot be converted for sub-feed application
• Includes through-feed lugs for both phase and neutral conductors
• Supplied with adapter plate to use DS group1 hubs (sold separately), if a 2.50 In. hub is needed, remove adapter and use ARP00007CH25 hub (sold separately)
• Steel backpan provides solid and reliable breaker mounting and single piece design for stability and durability
• Panel has single keyhole mounting at the top and bottom for easier mounting and leveling
• Includes drywall marking on enclosure to help line up the loadcenter properly when flush mounting between studs
• Accepts Eaton Type BR circuit breakers (standard, tandem, quad, and electronic)
• Full line of accessories available including: whole house surge protectors, mechanical interlock kits, ground bars, filler plates, etc

General

• Manufacturer Color/Finish: Gray
• Series Name: Type BR
• Type: Main breaker

Dimensions

• Depth (Inches): 4.75
• Height (Inches): 27
• Width (Inches): 10.5

Features

• Amperage: 200
• Buss Bar Construction: Aluminum
• Circuits: 8
• Cover Included: Yes
• Feed-Through Lugs: Yes
• Ground Bar Installed: Yes
• Mounting Type: Flush
• Number of Spaces: 4
• Orientation: Over/Under
• Paintable: Yes
• Phase Type: Single phase (120/240)
• Plug-On Neutral: No
• Usage: Service entrance
• Use Location: Outdoor
• Value Pack: No
• Value Pack Contents: N/A
• Warranty: 10-year limited

Compatibility

• Brand/Model Compatibility: Fits Most

Certifications

• CA Residents: Prop 65 Warning(s): No
• Safety Listing: UL safety listing

Miscellaneous

• UNSPSC: 39121100
