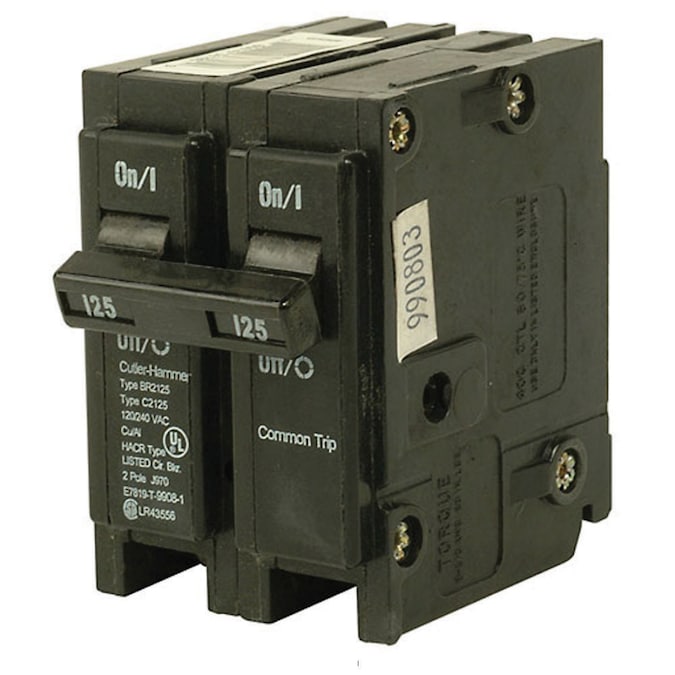

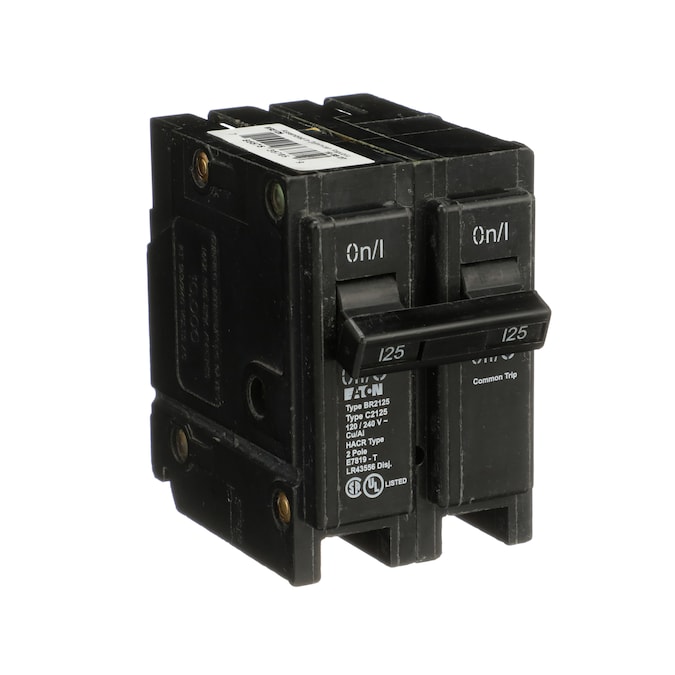

Eaton’s residential BR Circuit Breakers are used in load centers, panelboards, or similar devices. They are made for a wide range of applications and include: BR 1″ circuit breakers and accessories for BR-style load centers.
- For use in Eaton Type BR load centers and meter breaker panels
- UL approved replacement for Bryant, Westinghouse and Challenger panels
- Breaker trips to the center position, if tripped, turn OFF then back ON to reset
- Requires (2) 1-in spaces
- Interrupt rating is 10 kAIC
- BR 2 pole circuit breakers carry listing for HACR applications
- Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, and surge protection breakers
General
- Series Name: Type BR
- Type: Standard trip
Dimensions
- Power Capacity: 125-amp
- Width Measurement: 2-in
Features
- Circuit Breaker Voltage: 240
- Ground Fault Protection: No self test
- Interrupting Amp Listing (Amps): 10000
- Number of Poles: 2
- Phase: Single phase (120/240)
- Plug-On Neutral: No
- Surge Protection: No
Warranty
- Warranty: Limited lifetime
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121600
