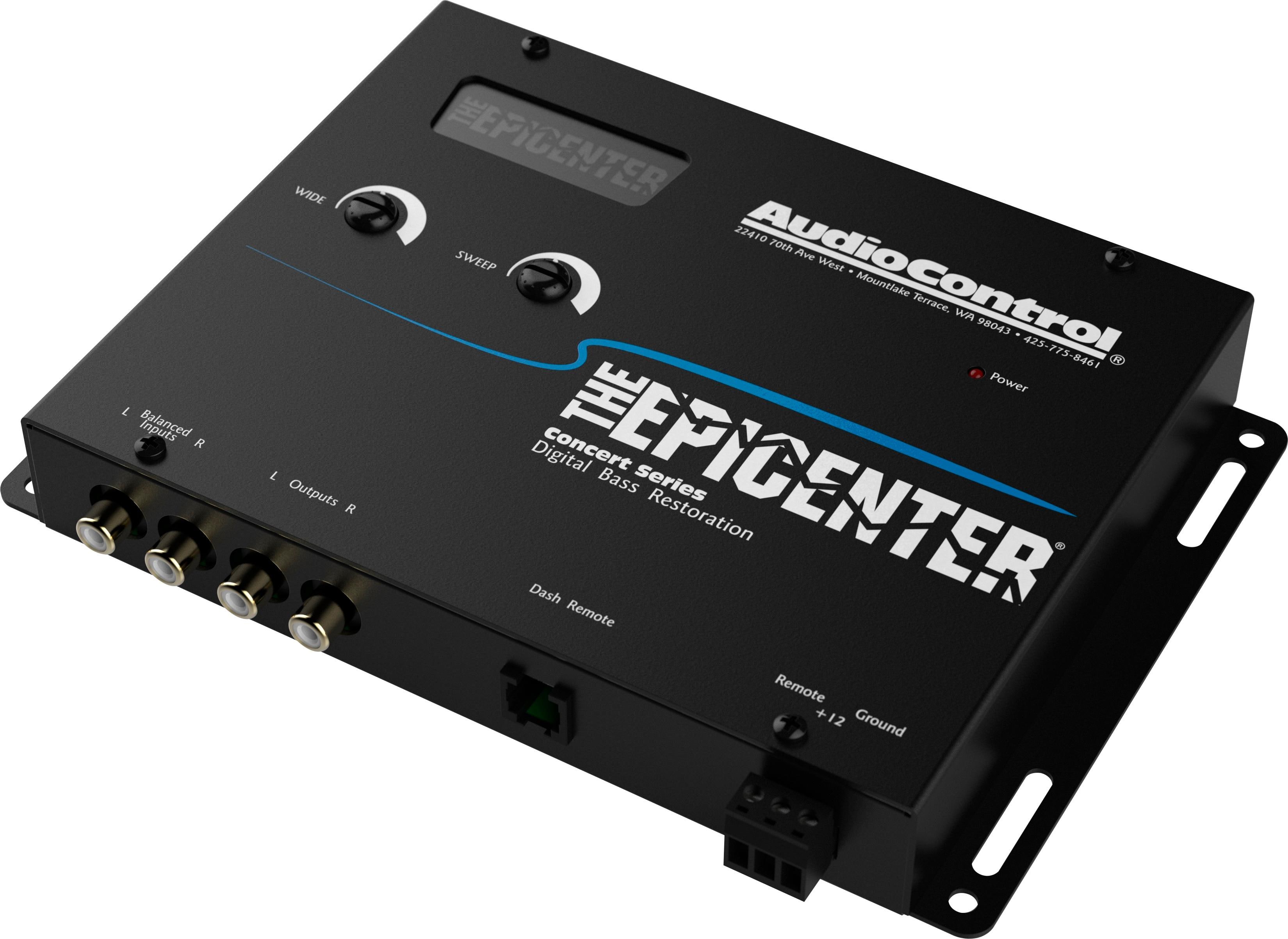

Increase bass response from your vehicle’s audio system with The Epicenter Concert Series Digital Bass Restoration Processor by AudioControl. The Epicenter contains patented bass maximization circuity that analyzes the incoming audio signal from your source unit, recreates missing bass tones, and transmits this low-frequency information back into the signal path to increase bass response. This digital bass restoration processor also features parametric bass control and a subsonic filter for fine tuning.
Compatible with most vehicles’ aftermarket audio systems
Provides bass enhancement for OEM source units with line-level outputs.
Bass maximizer circuitry with LED indicator
Allows the Epicenter to drop down a few octaves to reproduce the “missing” bass notes and indicates when the bass maximizer circuitry is activated.
2-channel processor
Features one set of RCA line-level preamp inputs and one set of RCA line-level preamp outputs for integration with your existing audio system.
Selectable balanced and unbalanced inputs
Rejects noise from source signal components.
15V RMS maximum power input @ 10k ohms
For high-quality sound.
13.5V RMS peak output voltage @ 150 ohms
For efficient operation.
Programmable frequency match (PFM) subsonic filter
Eliminates speaker damage and wasted amplifier power.
ParaBASS controls
Allows you to choose a center frequency (“sweep”) and contour the filter shape around it (“width”).
Selectable ground isolation
Choose from common, ISO (default), or 200 ohms.
Dash mount control
The included ACR-1 remote allows you to adjust bass level without leaving your seat.
5-year warranty
To protect against defects in materials and workmanship.
Specifications
Key Specs
- Color: Black
- Number of Channels: 2
- Surround Sound Supported: Not Applicable
- Audio Only Inputs: 1 x Phono
- Audio/Video Inputs: No audio/video inputs
- Network Connector(s): No network connectors
General
- Brand: AudioControl
- Model Number: THE EPICENTER
- Product Name: The Epicenter Concert Series Digital Bass Restoration Processor
Audio
- Equalizer: Yes
- High/Low Pass Filters: None
Inputs
- Video Only Inputs: No video only inputs
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 0
Outputs
- Video Only Outputs: No video only outputs
- Audio/Video Outputs: No audio/video outputs
- Number of HDMI Outputs (Total): 0
Features
- Remote Control Included: Yes
- Effect Type(s): Octave, EQ
Dimensions
- Product Height: 1.2 inches
- Product Width: 8 inches
- Product Depth: 5.5 inches
- Product Weight: 1.8 pounds
Warranty
- Warranty – Parts: 5 years
- Warranty – Labor: 5 years
Specifications
- UPC: 855814005860
