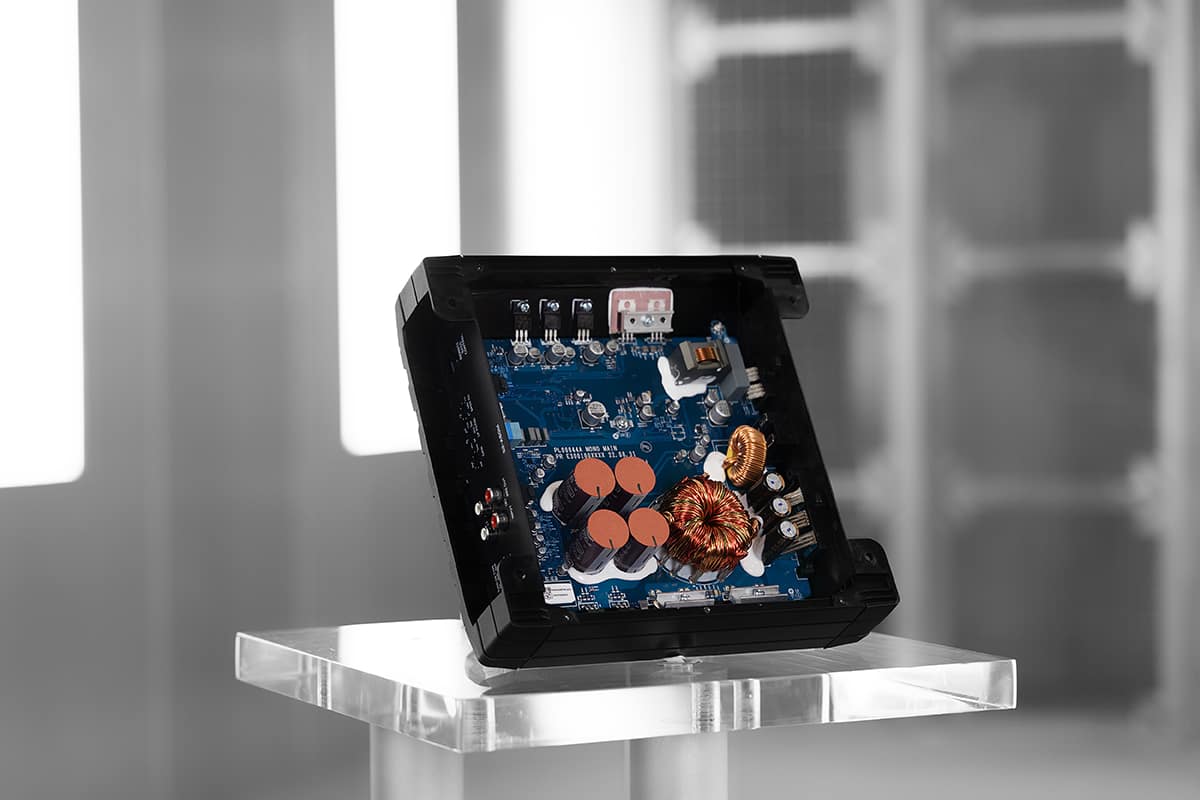

Pump up the audio in your ride with this Alpine Next-Generation S-Series mono power amplifier. Delivering 330W at 4 ohms, or 600W at 2 ohms, this amplifier is powerful enough for speakers and subwoofers. Its small footprint fits almost anywhere in your car. This Alpine mono power amplifier has improved heat sink and shutdown circuit designs to eliminate thermal shutdowns.
Robust power output
330 watts RMS x1 at 4 ohms, 600 watts RMS x1 at 2 ohms, 600 watts RMS x1 @ 1 ohm
Variable low-pass filter, bass boost & subsonic filter
Ensure flexible operation to get just the right bass tone
4 ohms impedance
Conducts power evenly to keep the speaker at an appropriate level.
Preamp- and speaker-level inputs
Allows installation in almost any vehicle, even one with a factory radio
Class D circuitry
Ensures reliable power handling and it is small enough to fit in almost any location
Flexible application
Selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times
Easy control access
Sound controls are now located on the side panes for easier acccess to gain and crossover controls
Optional remote
RUX-KNOB.2 wired remote available for rear channels
Specifications
Key Specs
- Color: Black
- Continuous Watts x Channel @ Ohms: 330w x 1 @ 4 ohms
- Maximum Watts x Channel @ Ohms: 600 watts RMS x1 @ 2 or 1 ohms
- Amplifier Class: D
- Number Of Channels: 1
- Bass Boost: Variable
- Low-Pass Crossover: Variable
- Speaker-Level Inputs: Yes
General
- Brand: Alpine
- Model Number: S2-A60M
- Product Name: S-Series Class D Mono Amplifier with Variable Crossovers
Audio Power
- Total Power Handling RMS: 330 watts
- Watts Per Channel RMS: 600 watts
- Total Power Handling Maximum: 600 watts
- Watts Per Channel Maximum: 600 watts
Audio
- Minimum Frequency Response: 10 hertz
- Maximum Frequency Response: 40 kilohertz
- Signal-to-Noise Ratio (SNR): 85 decibels
Features
- Remote Control Included: No
Output
- Preamp Outputs: Yes
Dimensions
- Product Height: 2.25 inches
- Product Width: 8.7 inches
- Product Depth: 8.25 inches
- Product Weight: 4.8125 pounds
Specifications
- UPC: 793276085160
