“Enjoy efficient, reliable hot water in 1 to 2 person households by installing this A. O. Smith Signature 100 Series 28-gallon water heater. Our unique low-profile design with side water connections is ideally suited for installations with space constraints. This lowboy water heater is designed to last, with dual copper 4500-watt heating elements, a protective anode rod and a ceramic fused tank shield made to reduce corrosion and provide ultimate tank protection. It also features a self-cleaning dip tube that reduces sediment build-up and extends the overall life of the water heater. This added protection plus a 6-year limited warranty give you extra peace of mind. Want to save money on your energy bills? This energy-efficient water heater operates at a 0.90 Uniform Energy Factor (UEF), which can reduce your energy consumption compared to less efficient models. Call 1-877-GOLowes to get this water heater installed same day.”
- Delivers the ideal amount of hot water for households with 1 to 2 people when sized appropriately
- Features two copper 4,500-watt heating elements that provide a first hour delivery of 47 gallons
- Operates at a 0.90 Uniform Energy Factor for maximum energy-efficiency and cost savings

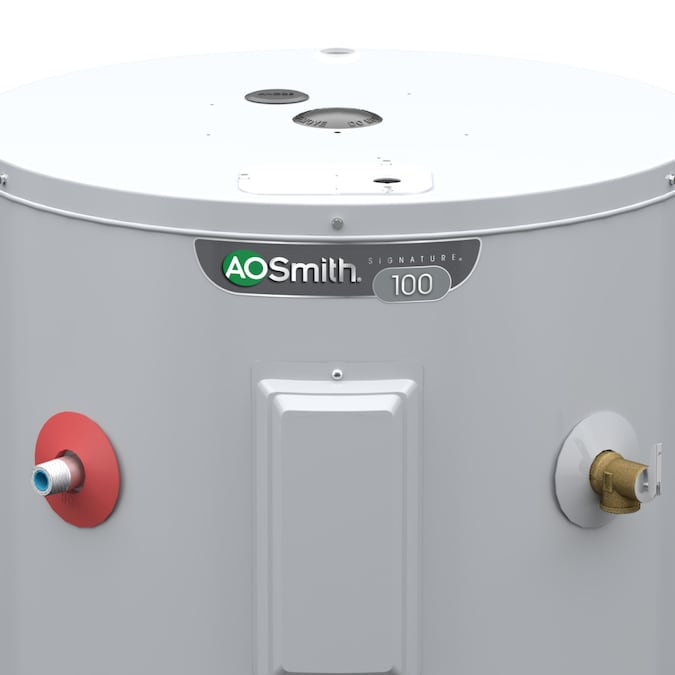

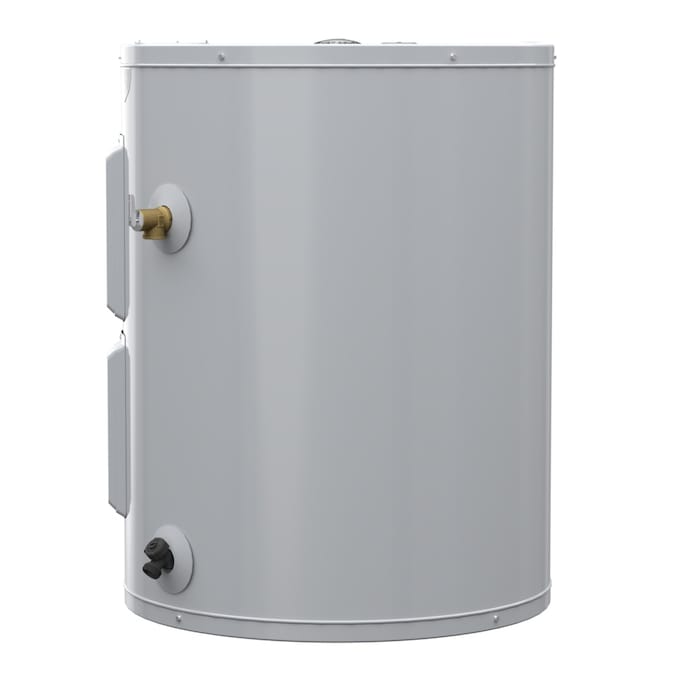

- Low-profile 32-in high x 23-in diameter design with side water connections allows for easy installation under counters or vanities and inside cabinets
- Provides superior tank protection and extends water heater life with premium heating elements, anode rod and fused ceramic tank shield
- Reduces heat loss with non-CFC polyurethane foam insulation and factory-installed heat trap nipples for maximum efficiency and energy savings
- Features easy temperature control with adjustable thermostat you can set higher or lower for dishwashers and laundry machines

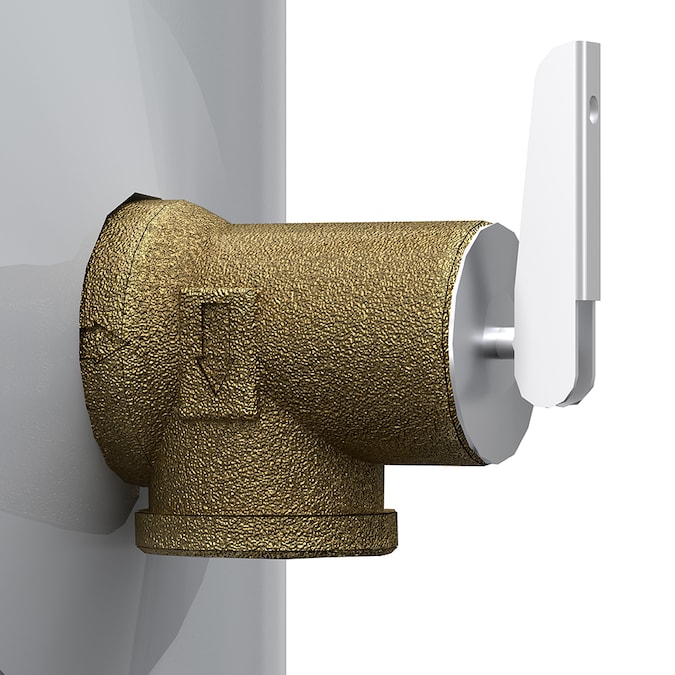

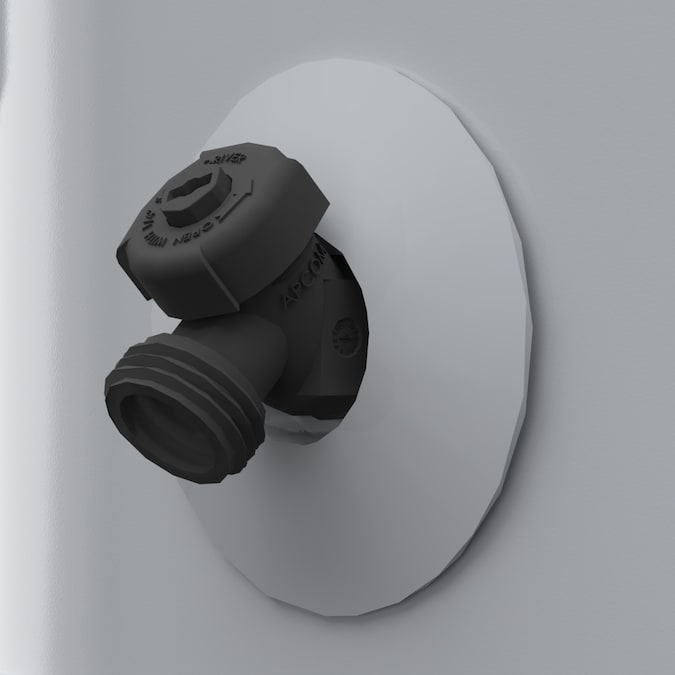

- Factory-installed temperature and pressure relief valve and tamper-proof drain valve ensures safe operation
- Provides peace of mind with a 6-year limited tank and parts guarantee and a 1-year limited labor warranty
General
- Series Name: Signature 100
- Type: Tank
Dimensions
- Depth (Inches): 22
- Diameter (Inches): 22
- Family Size: 2
- Height (Inches): 30
- Insulation Thickness (Inches): 2
- Nominal Capacity (Gallons): 28
- Rated Storage Capacity: 26-Gallon
- Water Connection Size: 3/4-in
- Weight (lbs.): 101
- Width (Inches): 22
Features
- Annual Fuel Utilization Efficiency % (Percentage): 0
- Foam Insulation: Yes
- For Use with Mobile Homes: No
- For Use with RVs: No
- GPH Recovery at 90 Degrees F (Gallons): 20.7
- Grade: Residential
- Grid Capable: No
- Hybrid Heat Pump Technology: No
- Point of Use: No
- Power Source: Electric
- Super High Efficiency: No
- Temperature and Pressure Relief Valve: Yes
- Uniform Energy Factor: 0.90
- Use Location: Indoor
- Voltage (Volts): 240
- Warranty: 6-year limited
- Water Connection Location: Side
- Water Heater Style: Lowboy
Compatibility
- Bluetooth Compatibility: No
- Smart Compatible: No
- Wi-Fi Compatibility: No
- Works with Amazon Alexa: No
- Works with Android: No
- Works with Apple HomeKit: No
- Works with iOS: No
- Works with SmartThings: No
- Works with the Google Assistant: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- ENERGY STAR Certified: No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 40101800
