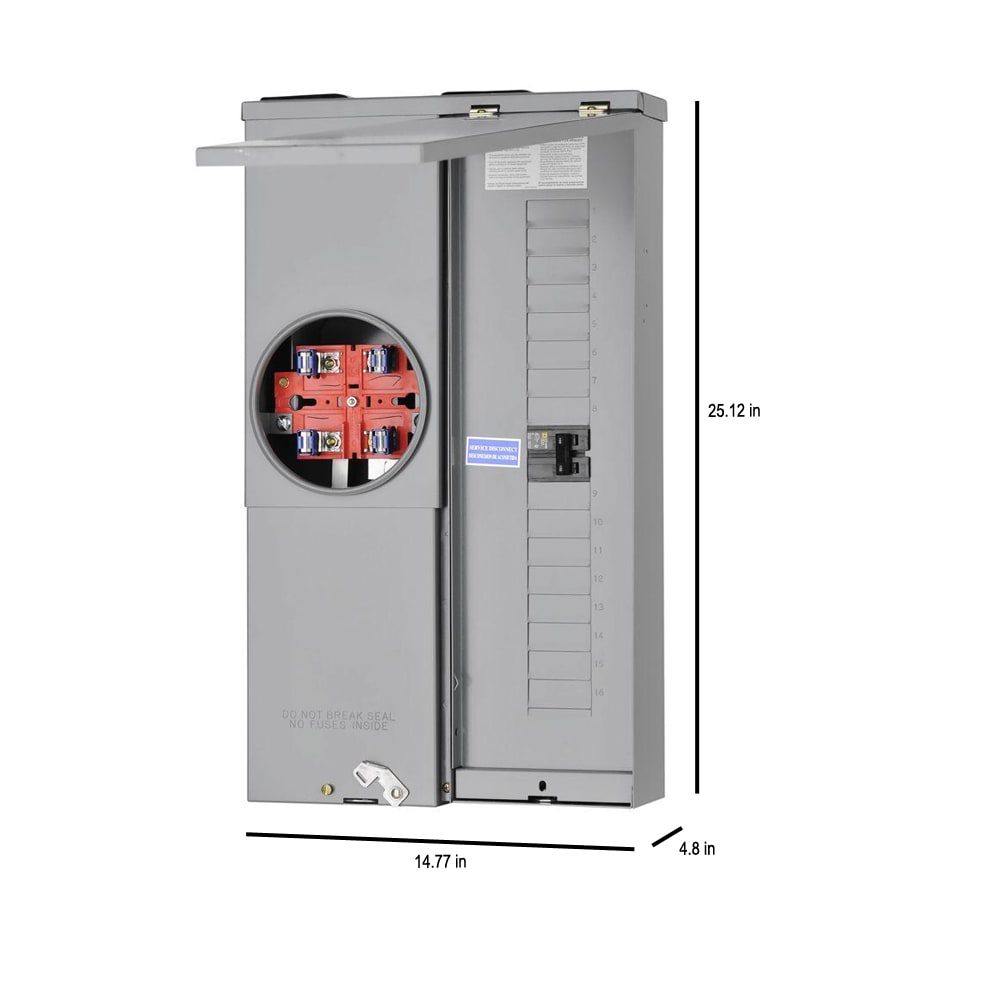

100 -Amp 16 -Spaces 24 -Circuit Outdoor Main breaker meter combo Load Center

$136.74

In stock

SKU: MV-LW-1018101 Category:
Description

The Square D 100 Amp 16-Space 24-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ring-type meter cover with a single-phase, 4-jaw meter socket. It is suitable for overhead or underground service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.

Manufacturer Color/Finish: Gray

Type: Main breaker meter combo

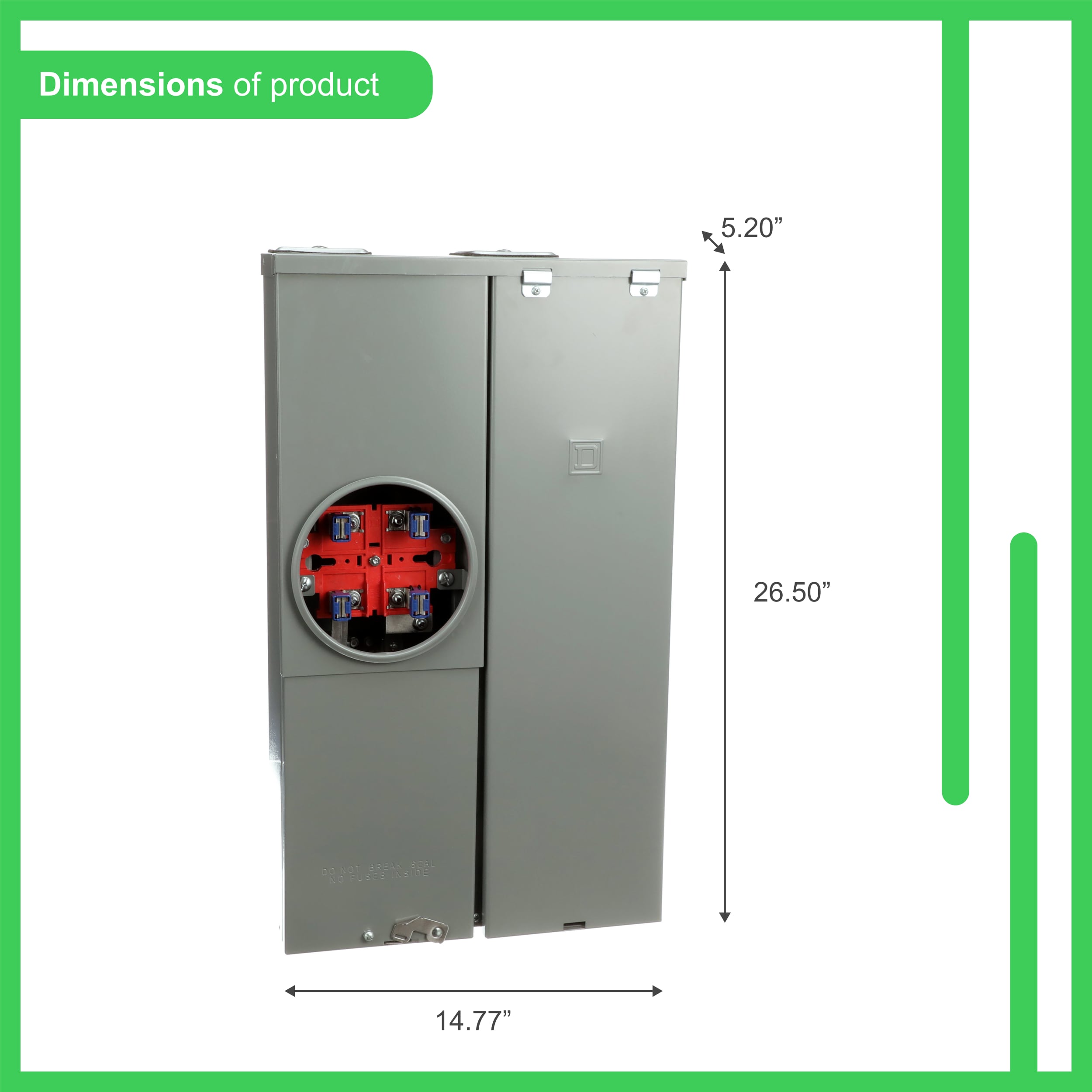

Depth (Inches): 6.1

Height (Inches): 26.6

Width (Inches): 15.5

Amperage: 100

Buss Bar Construction: Aluminum

Circuits: 24

Cover Included: Yes

Feed-Through Lugs: No

Ground Bar Installed: No

Mounting Type: Surface

Number of Spaces: 16

Orientation: Over/Under

Paintable: No

Phase Type: Single phase (120/240)

Plug-On Neutral: No

Usage: Service entrance

Use Location: Outdoor

Value Pack: No

Brand/Model Compatibility: Square D Homeline Brand Only

CA Residents: Prop 65 Warning(s): Yes

Safety Listing: UL safety listing

Warranty: 18-month limited

UNSPSC: 39121100

Additional information
Brand

Square D
