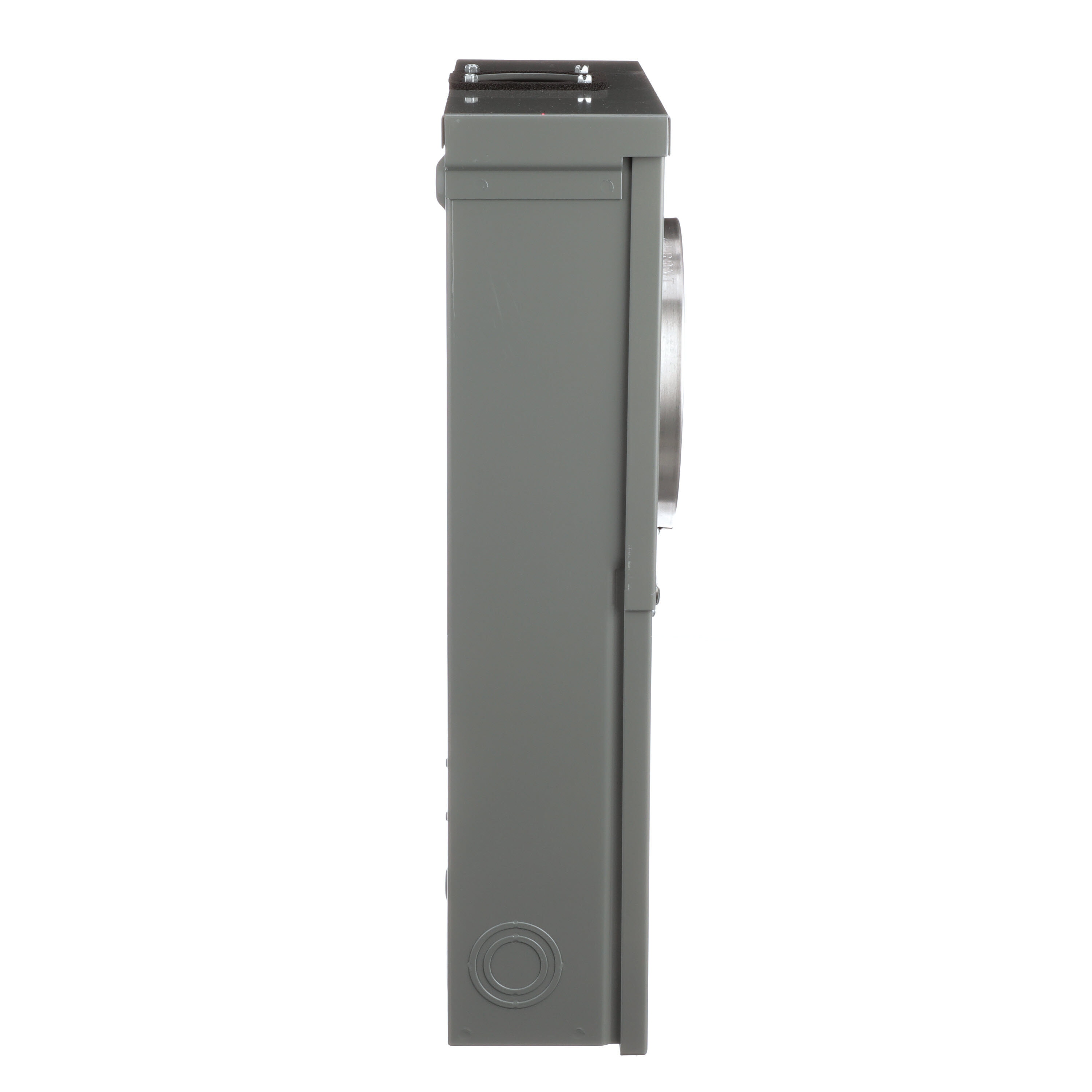

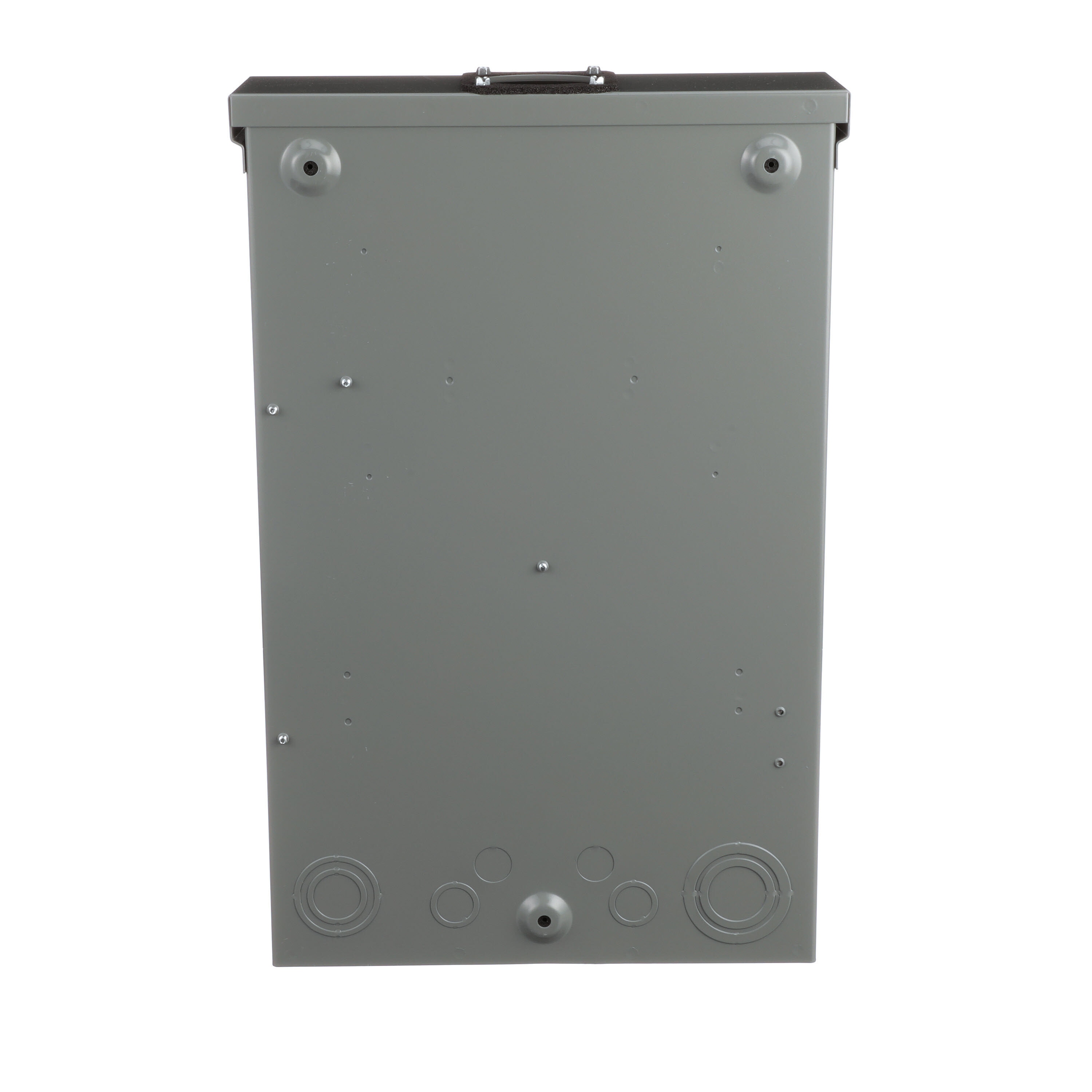

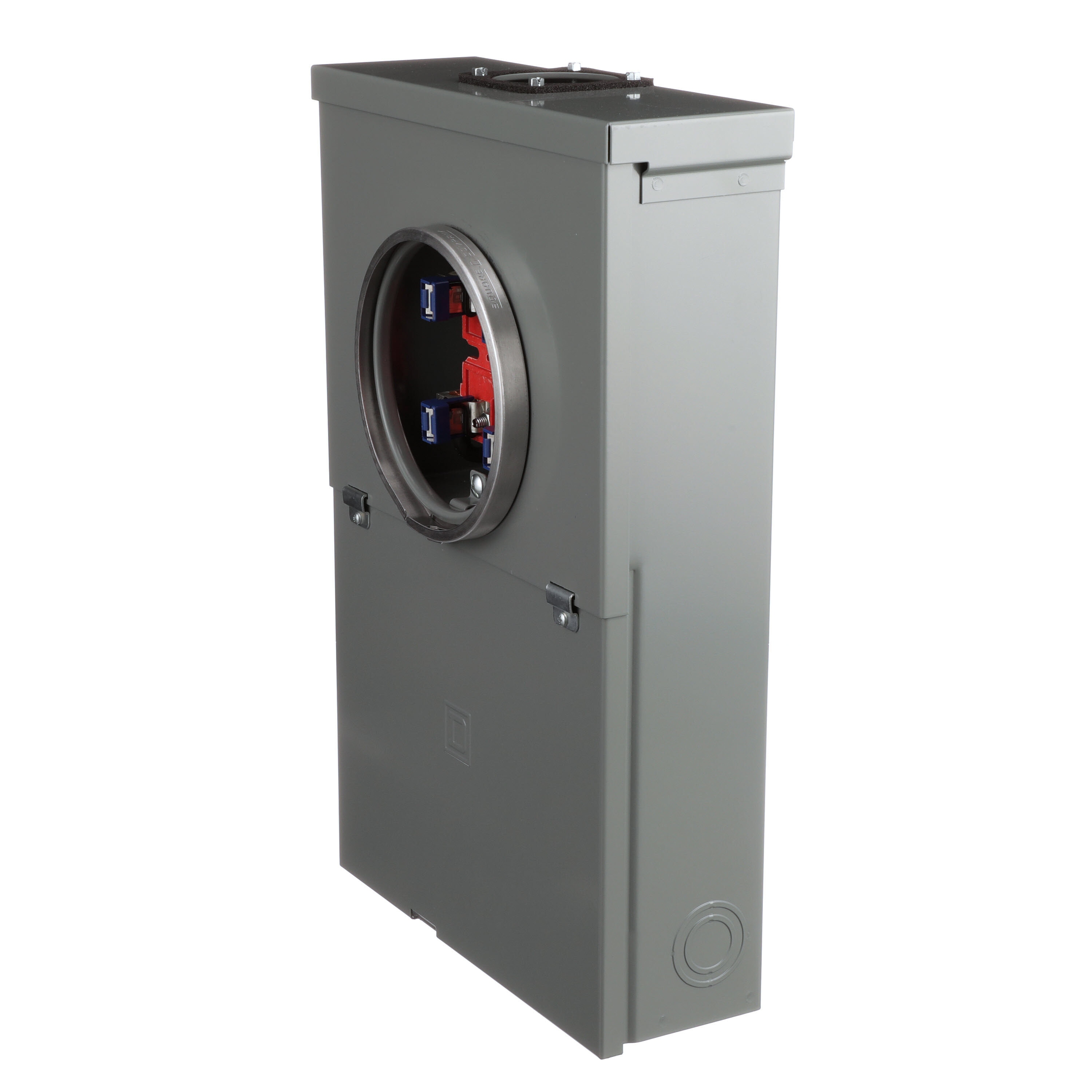

The Square D 100 Amp 10-Space 20-Circuit Outdoor Combination meter Socket and Main Breaker Load Center, Model SO1020M100S, is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ring-type meter cover with a single-phase, 4-jaw meter socket. It is suitable for only overhead service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers, except Plug-On Neutral breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline CSEDs are engineered for fast installation and wire savings.
Manufacturer Color/Finish: Gray
Type: Main breaker meter combo

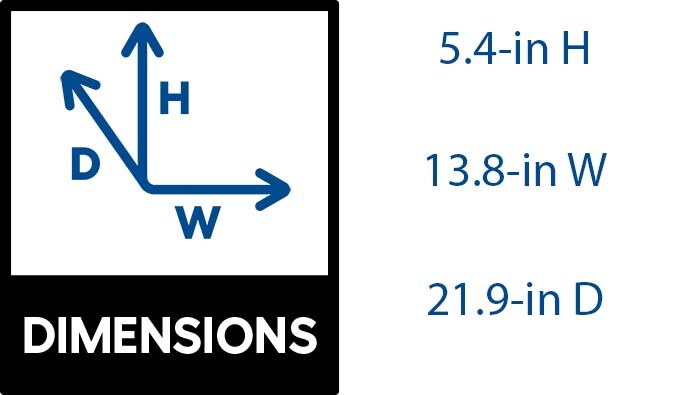

Depth (Inches): 21.9
Height (Inches): 5.4
Width (Inches): 13.8
Amperage: 100
Buss Bar Construction: Aluminum
Circuits: 20
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: No
Mounting Type: Surface
Number of Spaces: 10
Orientation: Over/Under
Paintable: No
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Service entrance
Use Location: Outdoor
Value Pack: Yes
Value Pack Contents: 1 – SO1020M100S 100A 10 Space/20 Circuit Max All-In-One Overhead Service Feed and Integral Ring-Type Meter Socket, 3 – HOM120 Homeline 20A Single-Pole Circuit Breakers, 1 – HOMT2020 Homeline 20A Single-Pole Tandem Circuit Breaker
Brand/Model Compatibility: Square D Homeline Brand Only
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: UL safety listing
Warranty: 18-month limited
UNSPSC: 39121100
