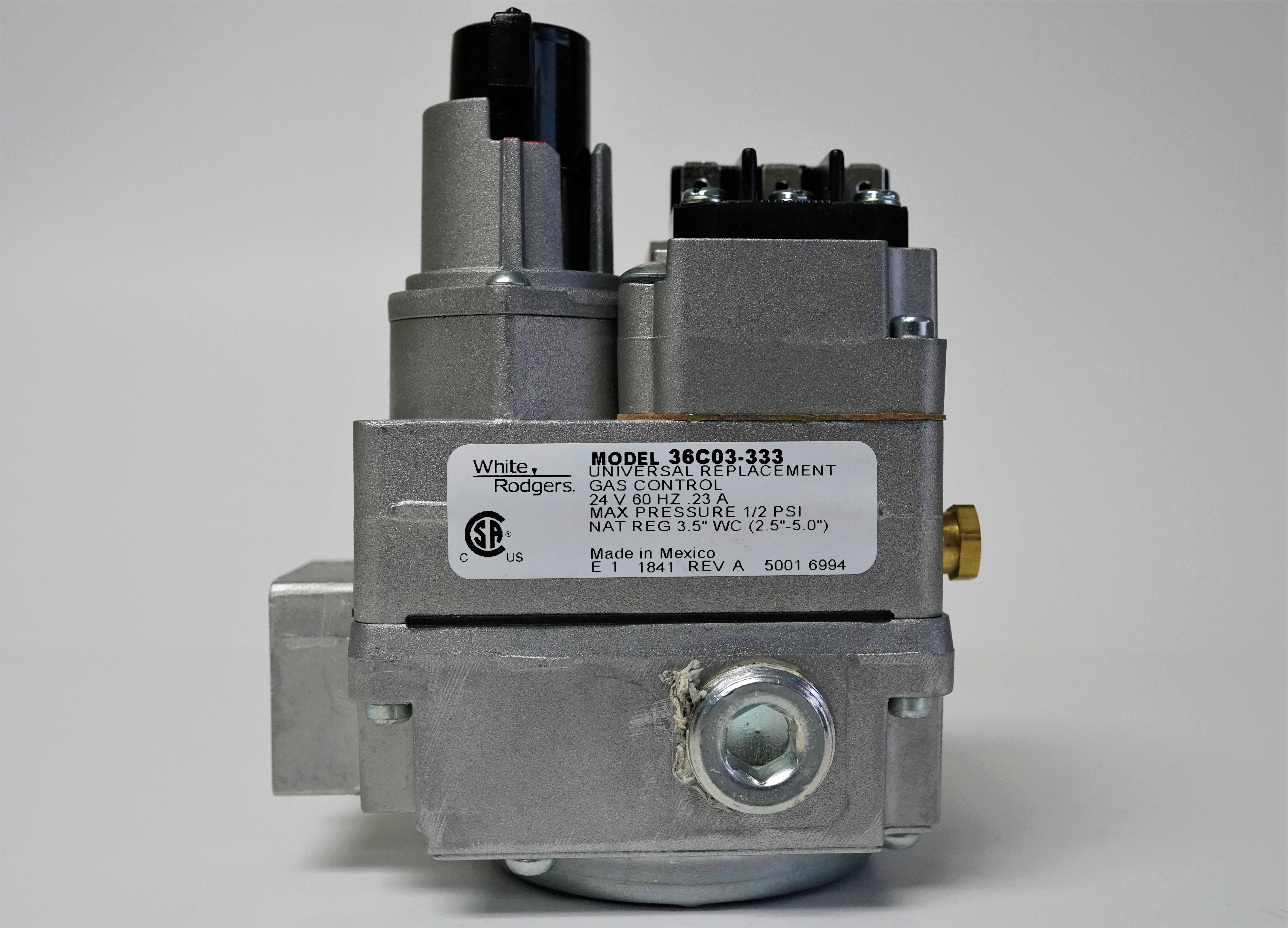

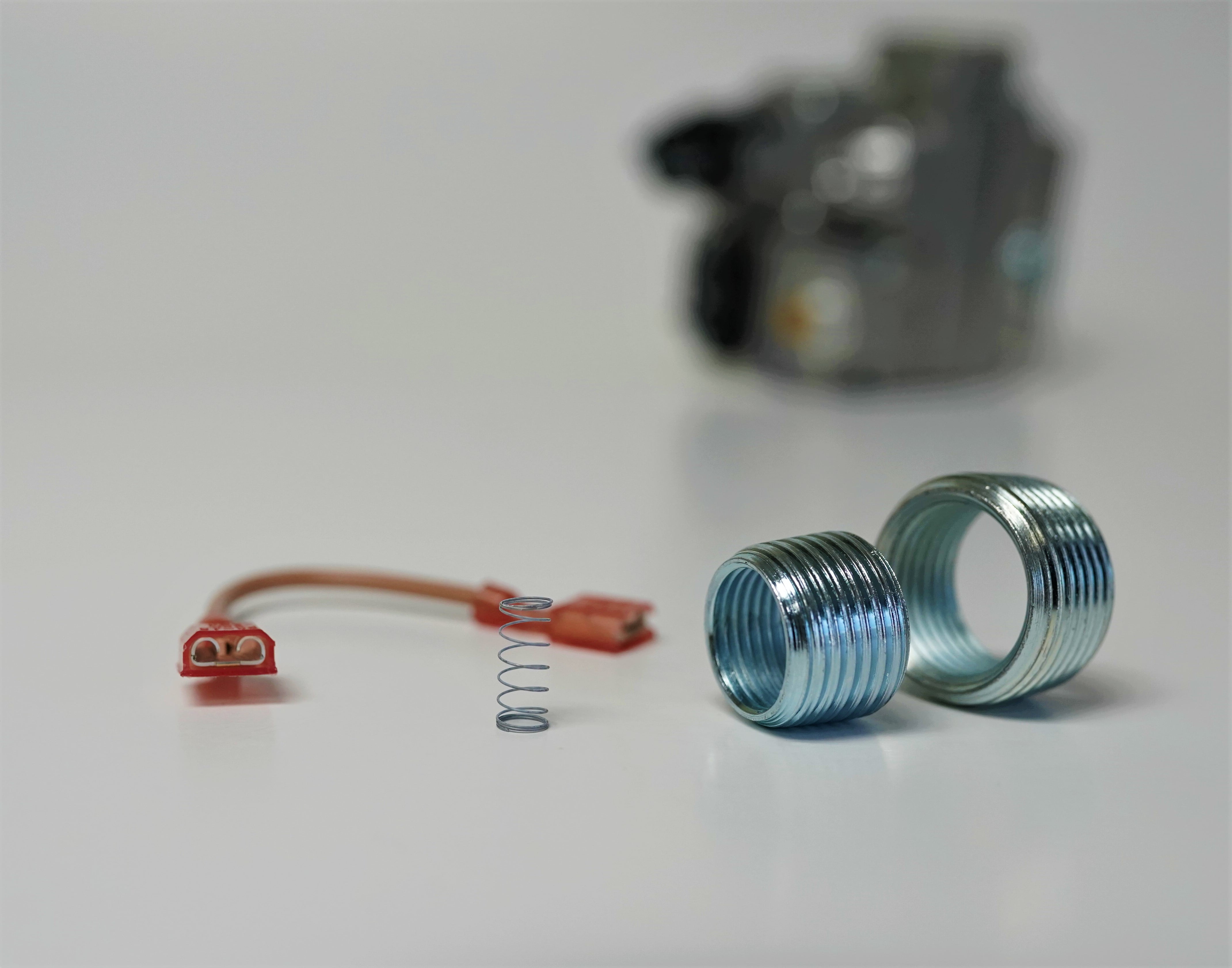

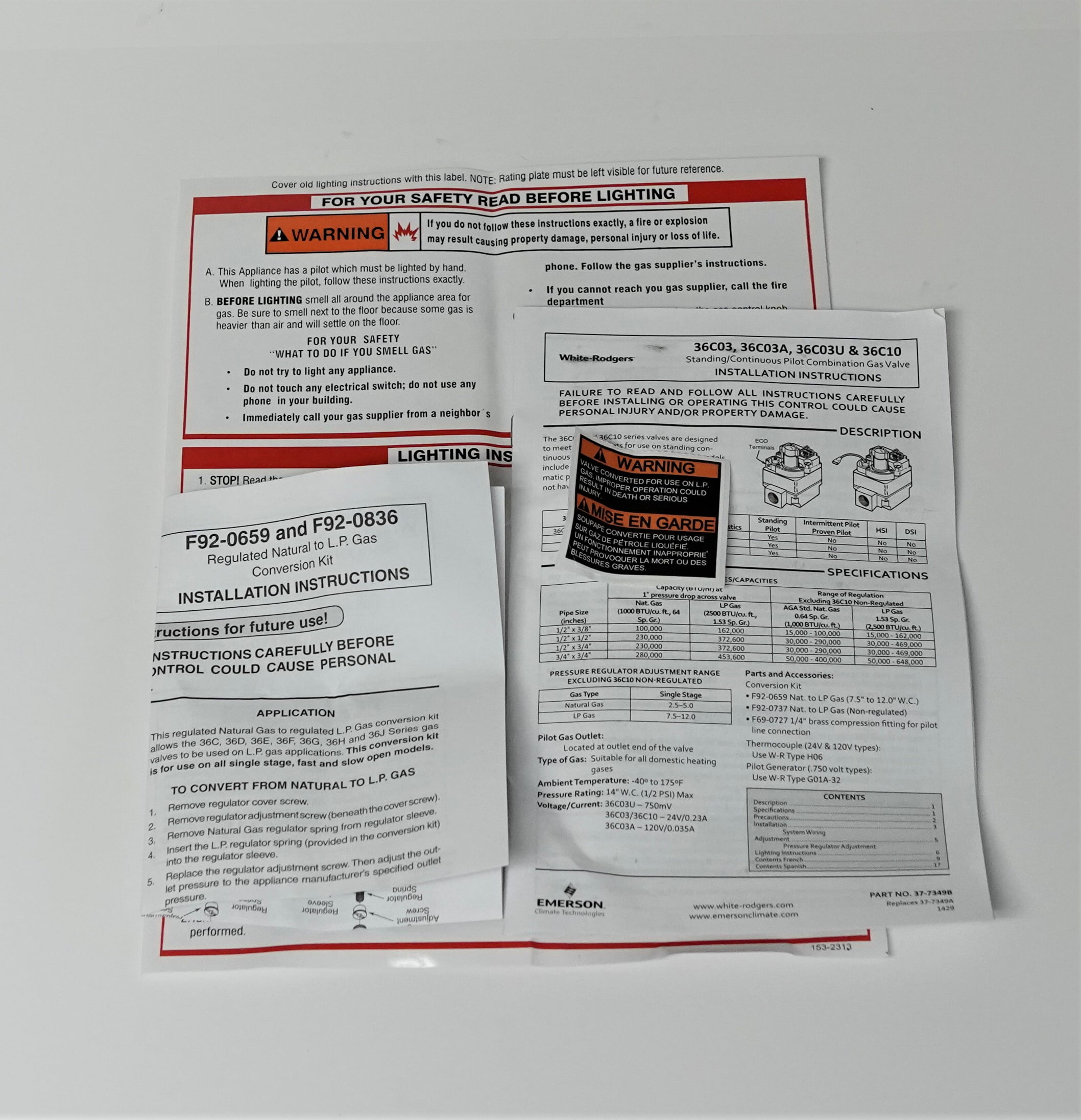

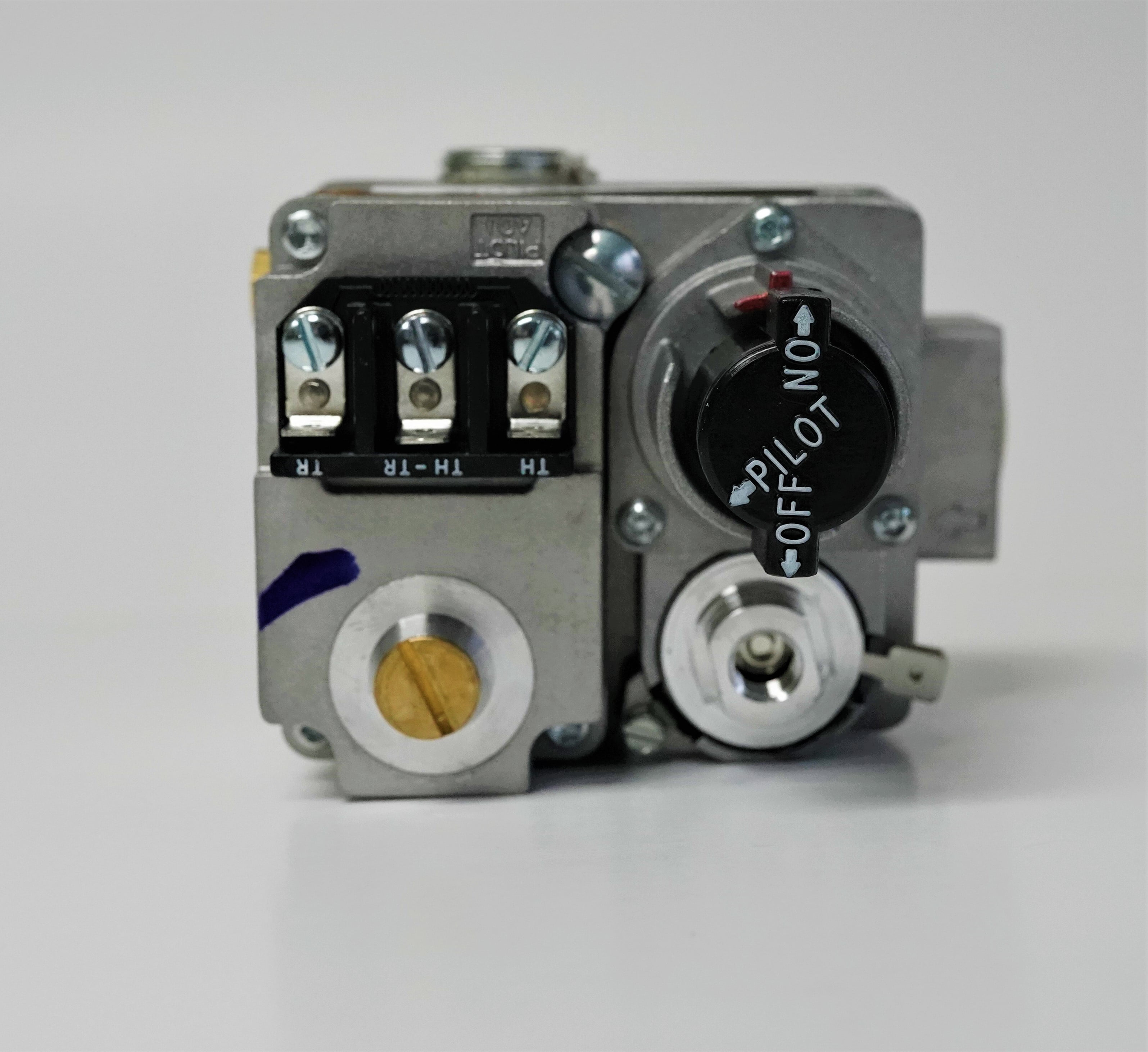

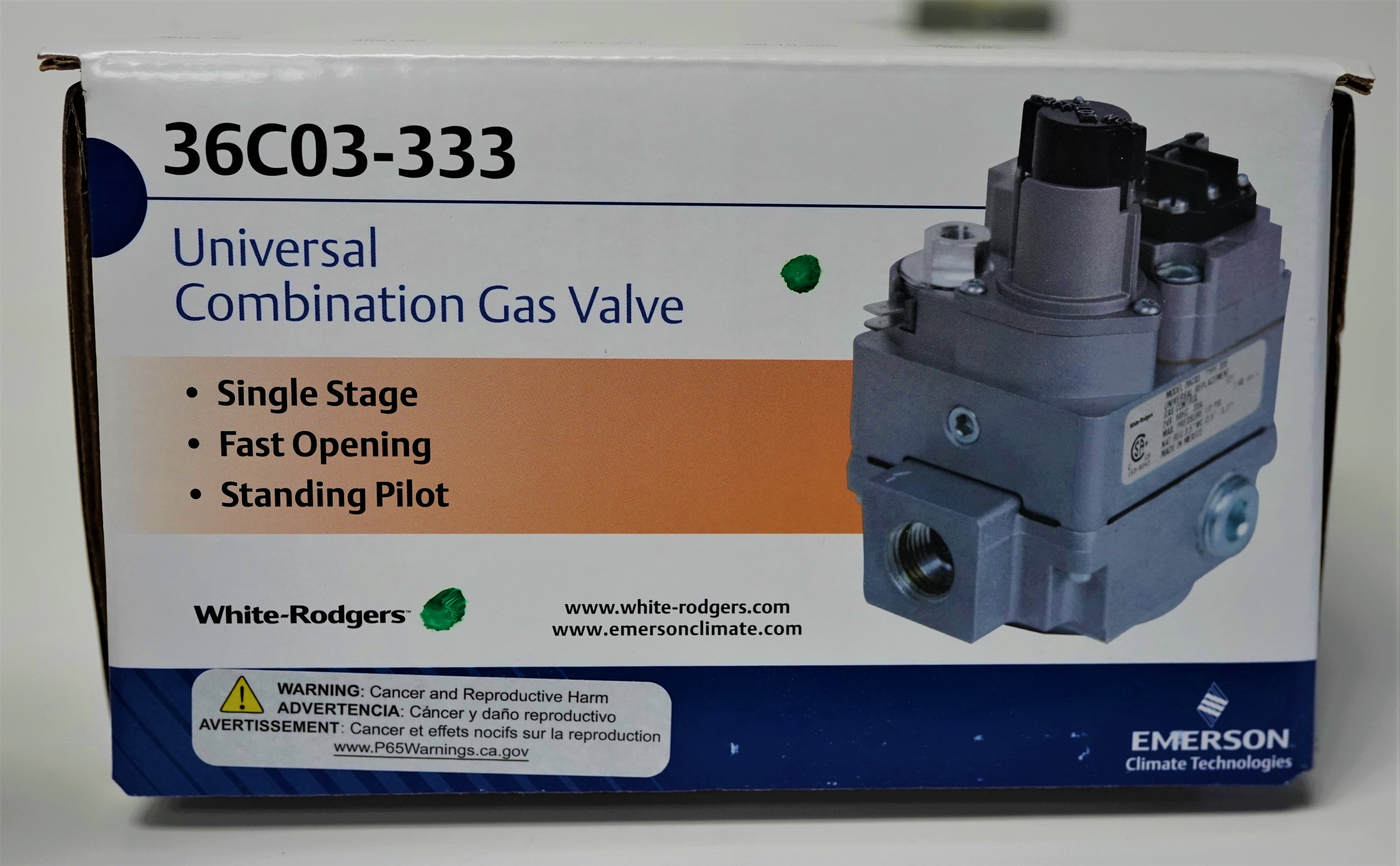

Universal standing pilot gas valve, 24 VAC, straight thru, 1/2″ x 3/4″ NPT, two reducer bushings 3/4″ to 1/2″ and 1/2″ to 3/8″ NPT. Includes LP conversion kit, eco terminals. Can also be replaced by 36C03-333 and 36C03-433.

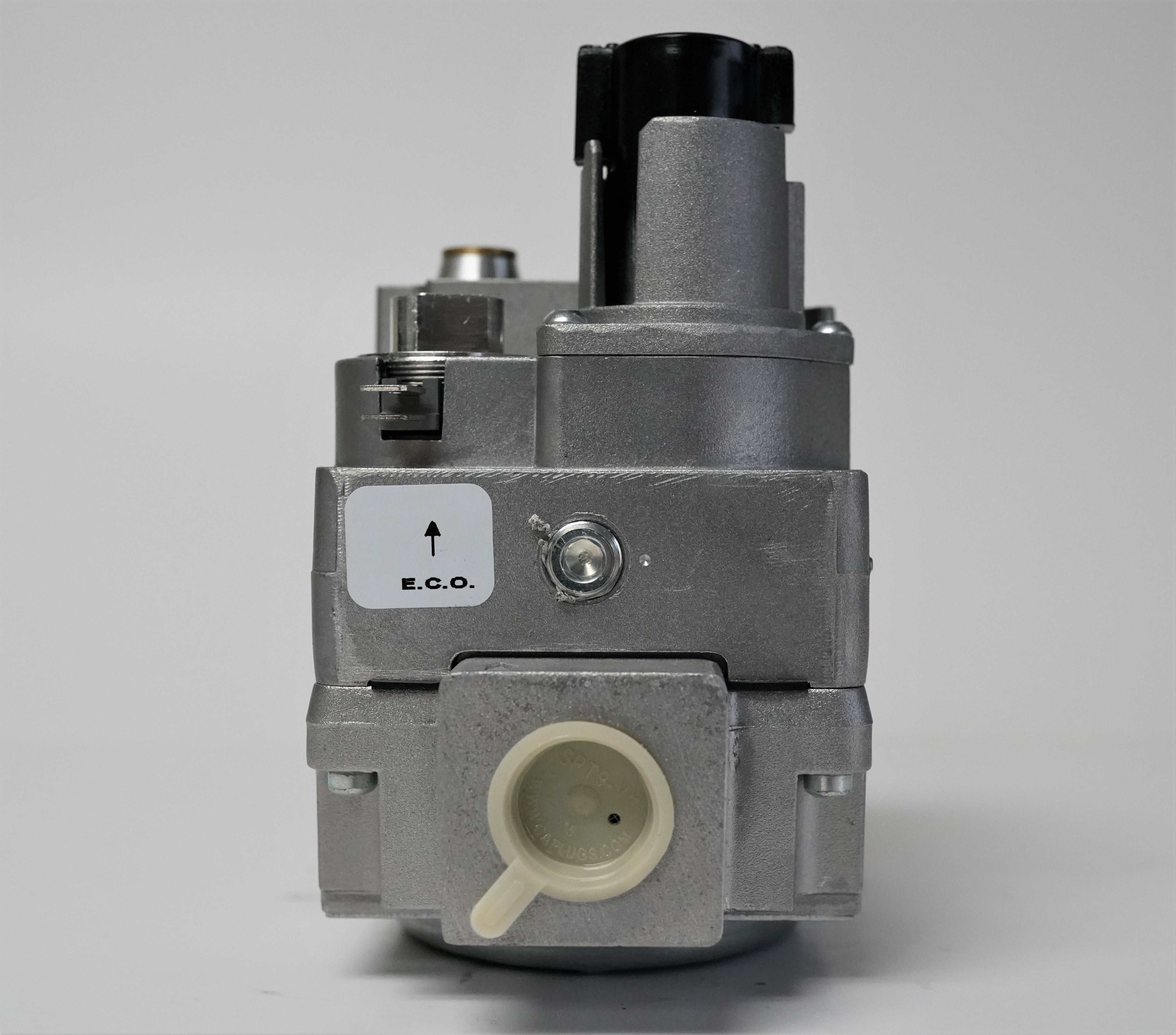

Line Interrupter styles use standard 30 mV Thermocouples Straight through design Inlet/outlet reducer bushings Mounting position upright, or 0° to 90°From upright in any direction CSA approved
