The ViewSonic PA503X price-performance projector features 4000 lumens, native XGA 1024 x 768 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503X also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours*. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503X is ideal for use in education and small business environments..
Portable design
Weighs 4.89 lbs. for easy transport to meetings, presentations and more.
DLP image technology
Offers crisp visuals.
±40° vertical keystone correction
For distortion-free images.
4000 lumens of brightness
Offer a highly visible display with clear on-screen images.
1024 x 768 XGA resolution
Provides rich, lifelike hues and precise detail.
HDMI input
Makes it easy to connect to high-definition sources.
29.9″ – 300″ viewable screen size
Allows everyone in the room to enjoy a clear view.
1.96 – 2.15:1 throw ratio range
Reproduces wide images in their correct proportions.
Manual zoom
Offers setting versatility.
190W lamp
Delivers up to 15,000 hours of lamp life in ECO mode and up to 5,000 hours of lamp life in normal mode for extended use.
Built-in 2W speakers
Provide crisp sound.
Included remote
Provides simple control from across the room.
Specifications
Key Specs
- Color: White
- Product Weight: 4.9 pounds
- Light Source: Lamp
- Resolution: 768p
- Color Brightness (IDMS): 3600 lumens
- White Brightness (ISO): 3600 lumens
- Contrast Ratio: 22000:1
- Projector Use: Business, Educational (Classroom)
- Projector Throw Type: Standard Throw
- Portability: Fixed
- Wireless Connectivity: None

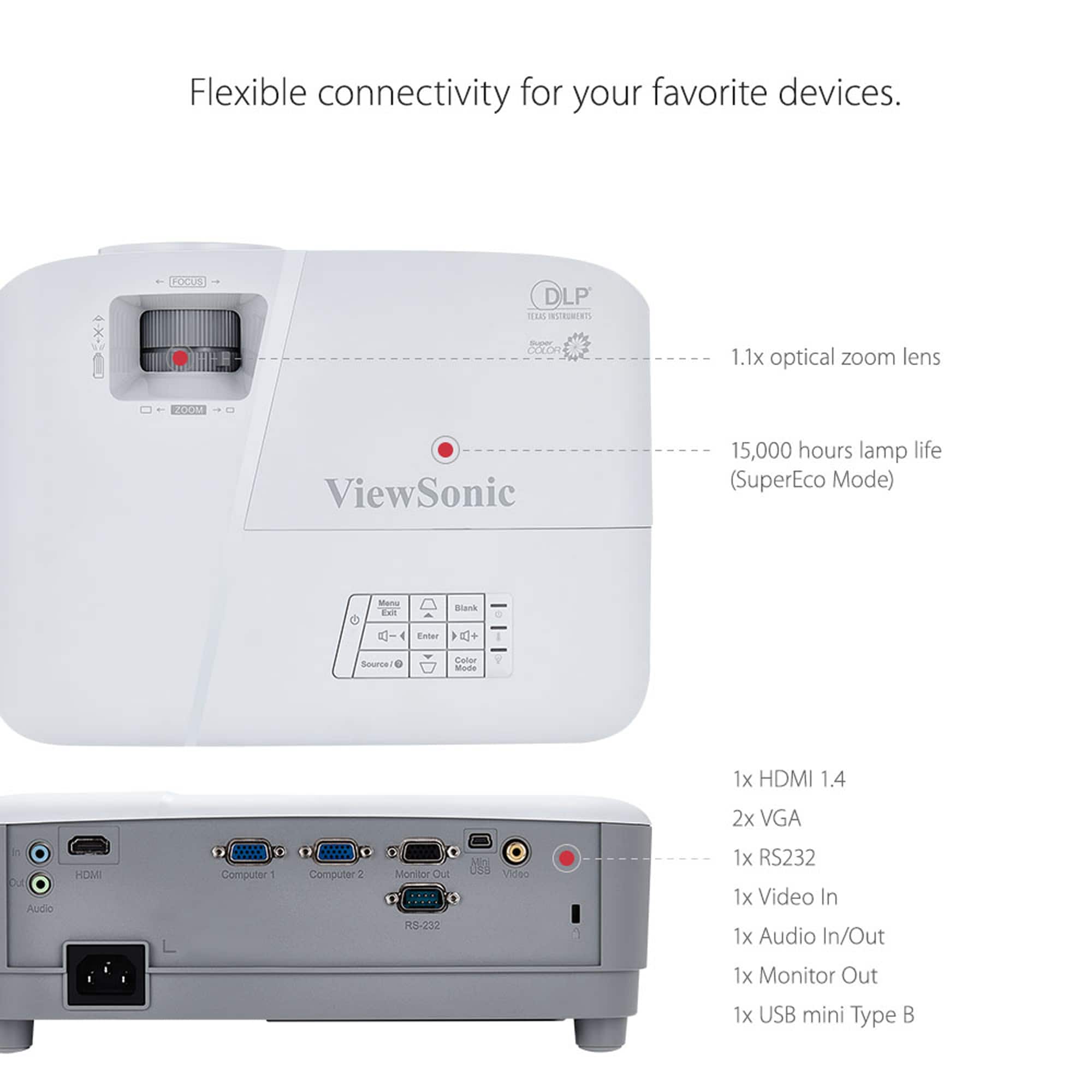

- Display Connector(s): 1 x VGA, 1 x HDMI, 1 x Composite video
- Power Source: Plug-in, Plug-in
General
- Brand: ViewSonic
- Model Number: PA503X
- Product Name: PA503X XGA DLP Projector

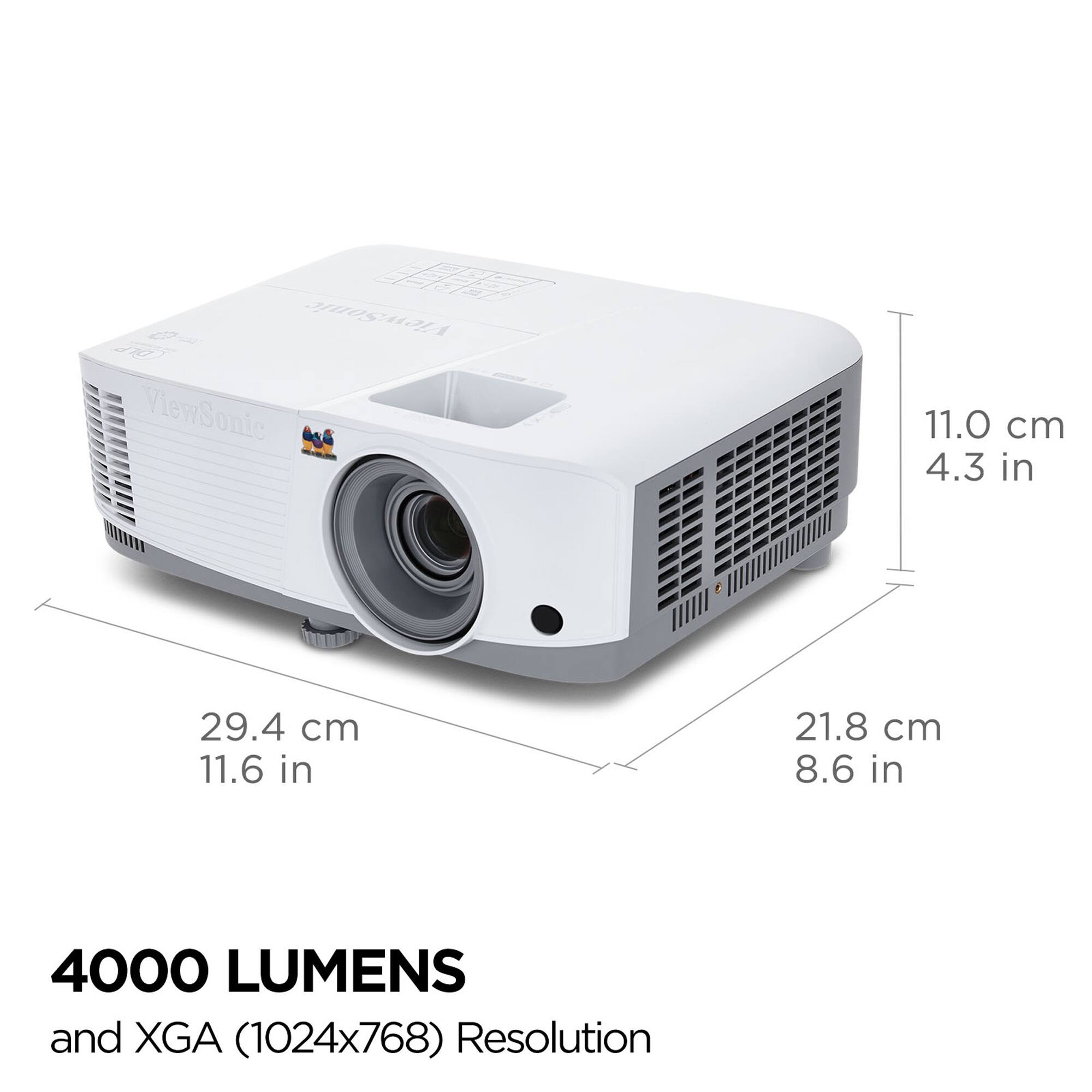

Dimensions
- Product Height: 4.3 inches
- Product Width: 11.6 inches
- Product Depth: 8.6 inches
Display
- Display Technology: DLP
- Resolution (Native): 1024 x 768
- High Dynamic Range (HDR): No
- Aspect Ratio: 4:3

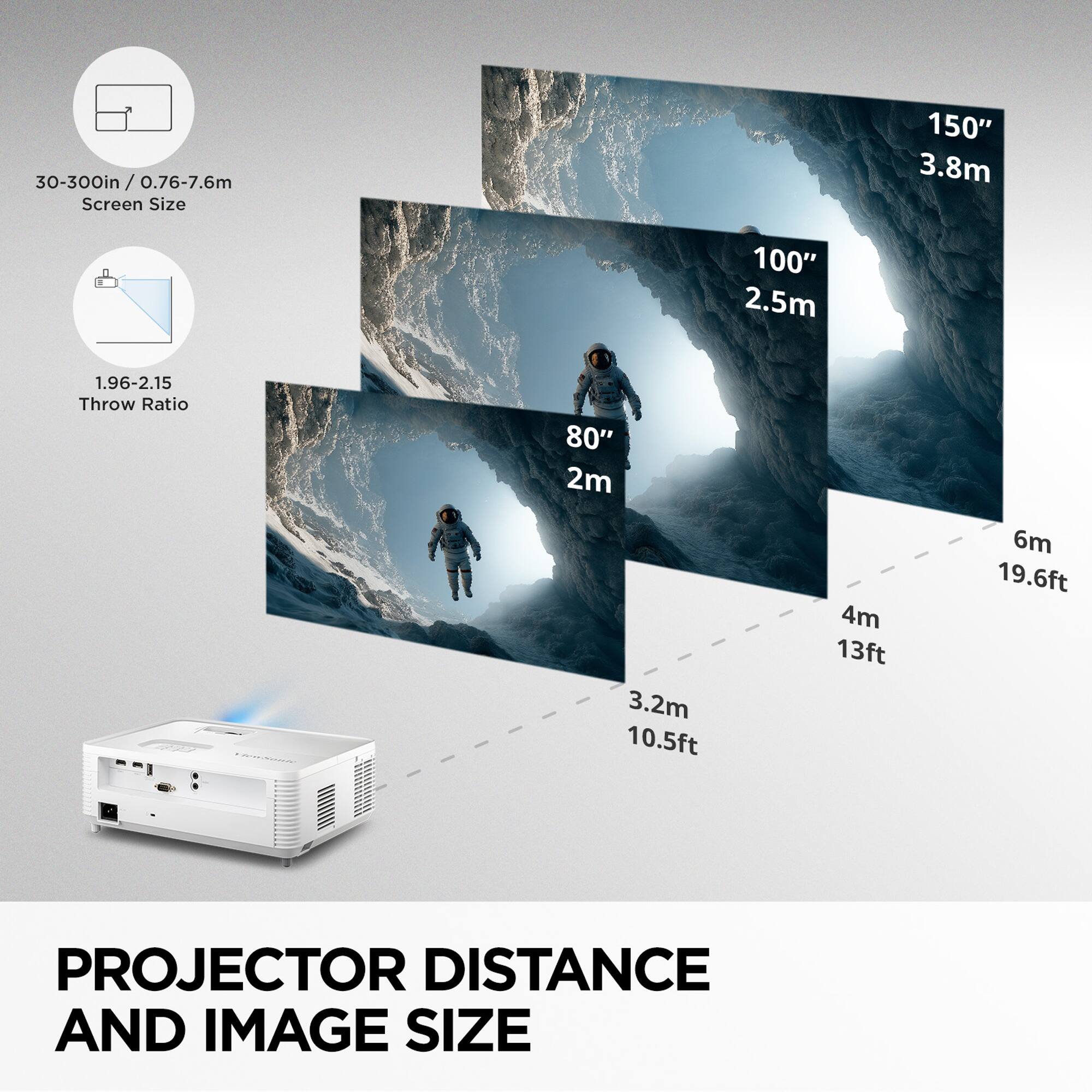

- Throw Ratio Range: 1.96 – 2.15:1
- 3D Technology: Yes
Viewing
- Minimum Viewable Screen Size: 29.9 inches
- Maximum Viewable Screen Size: 300 inches
Features
- Remote Control Included: Yes
Exposure Control
- Focus Adjustment: Manual

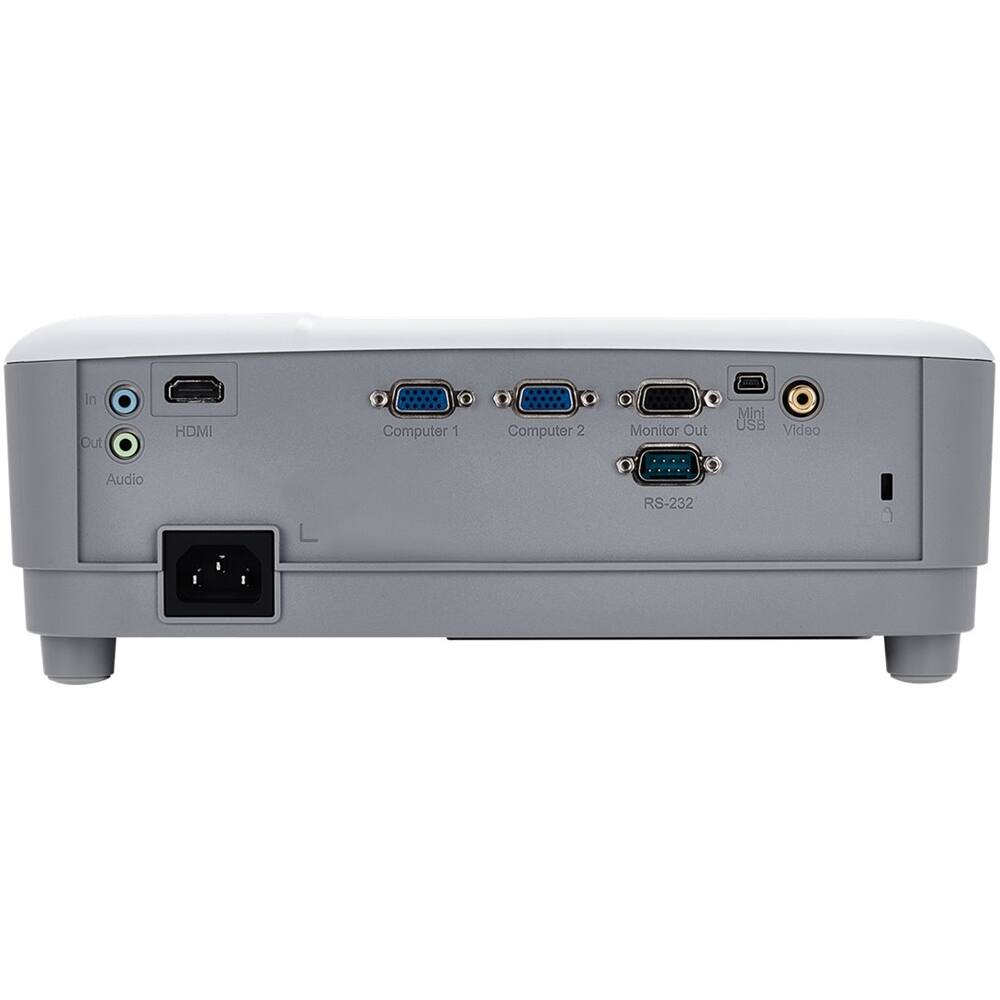

Connectivity
- Number of HDMI Inputs (Total): 1
- Network Connector(s): 1 x RS-232
- Audio Only Outputs: 1 x 3.5mm audio
Audio
- Integrated Speaker(s): Yes
- Speaker(s) Included: Yes
- Watts Per Channel: 2 watts
Compatibility
- Operating System Compatibility: Mac, Windows
Warranty
- Warranty – Parts: 3 years
- Warranty – Labor: 3 years
Specifications
- UPC: 766907905113
