PEX Heat Transfer Plates: 2 ft in Length and 100 pcs and U-shaped Design; Are you still distressed about feeling cold at home in winter; Get VEVOR’s aluminum plates to create a uniform heating system under the floor; You no longer need to worry about corrosion or any other abrasion, because the PEX tubes lay into the grooves of these plates all get all-around protection; Start warm your home up with it; Fit for 1/2 in PEX Tubes; Durable Aluminum Plates; Even Heat Distribution; Effortless to Install; Multiple Application; Package Content: 100 x Heat Transfer Plate
- Premium PEX Tube: Material: Aluminum; Length: 2ft; Amount: 100pcs; Width: 4.25 in

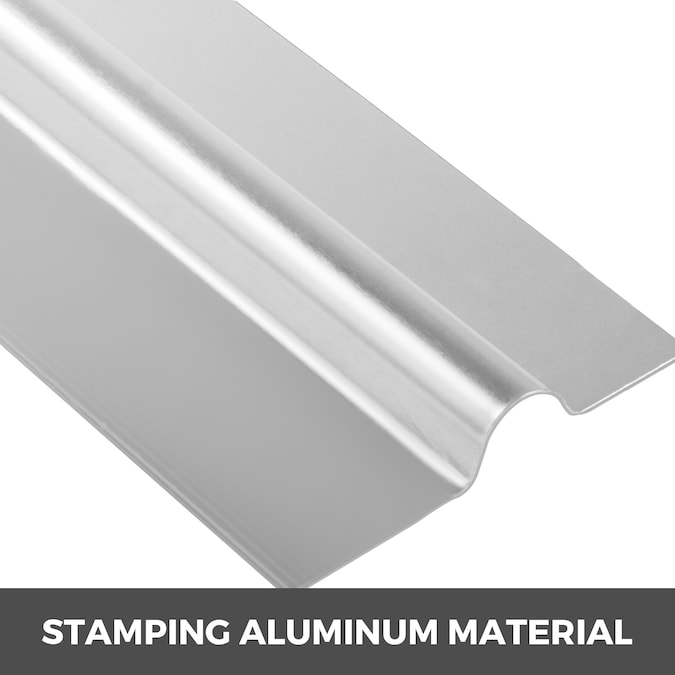

- It adopts thickened aluminum material, PEX transfer plates are designed in a unique U shape, reducing 30-40% of heat lost from gaps between plates and tubes
- VEVOR’s PEX heat transfer plates are professionally, ensure continuous heating of your room, allowing you to enjoy comfortable warm in cold winter
- Premium PEX Tube: Material: Aluminum; Length: 2ft; Amount: 100pcs; Width: 4.25 in; Excellent product to provide a superior heat transfer function for home and commercial radiant floor system
- High Compatibility: Our radiant heat transfer plates are suitable for most type of 1/2 in PEX tubing(5/8 in OD); Compatible with most brands’ PEX, PEX-AL-PEX or EVOH coated ‘Oxygen Barrier’ pipes

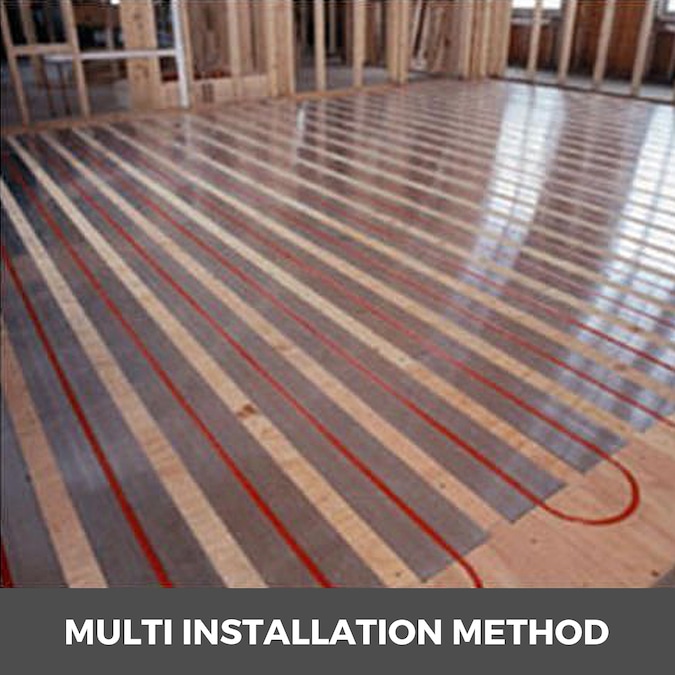

- Easy Installation: Installed in radiant system of under-floor (between joist) type, sandwich type, above sub-floor(sleeper), wall and ceiling; Cuttable design to satisfy different needs; Notice: You should leave 1-2 in spacing between plates when you set up

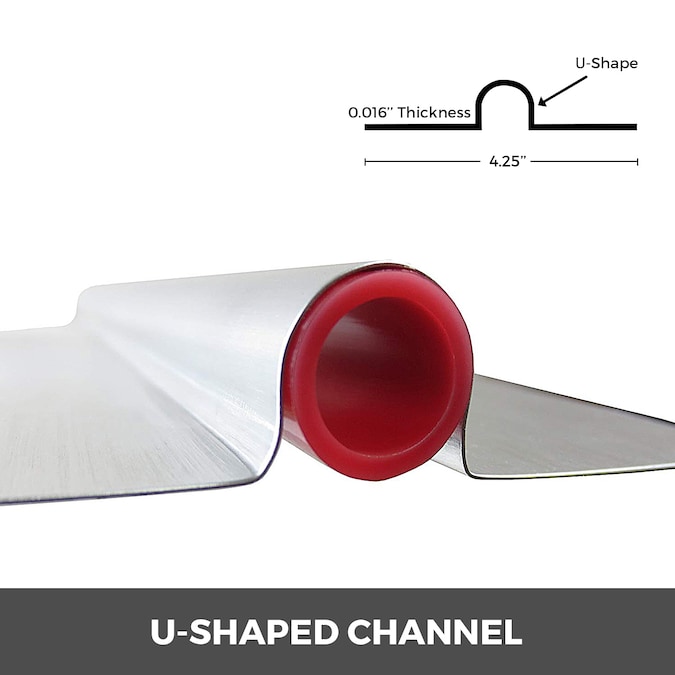

- Thickness and Note: This in floor heat plates feature 0.016 in standard thickness, can be stapled by hand or stapler; Its U-shaped design reduces thermal voids that occur from gaps between plates and tubes
- Diverse Uses: Perfect to enhance heat transfer of the system and make the needed water supply temperature lower; Power-saving PEX heat transfer plates to use at home, apartment, hotel, etc; Number of Plates = Square Footage x 1.30 / length of plates; Example: 1000 Square Footage: Area Multiply by 1.30 = 1300ft of plates; (650 plates of the 2ft version OR 325 plates of the 4 ft version)
- Specifications: Material: Aluminum; Compatibility: for 1/2 in PEX Tubes; Amount: 100 pcs; Heat Plate Length: 2 ft/ 0.6 m; Heat Plate Width: 4 in/ 10 cm
General
- Color/Finish Family: Silver
- Sub Type: PEX
- Type: PEX specialty tool
Dimensions
- Diameter (End 1): N/A
- Diameter (End 2): N/A
- Diameter (End 3): N/A
- Pipe Diameter: N/A
- Pipe Length: N/A
Features
- Code Approvals: N/A
- Common Use: Radiant heating
- Connection Type (End 1): N/A
- Connection Type (End 2): N/A
- Connection Type (End 3): N/A
- Degree of Angle: N/A
- Material: PEX
- Maximum Working Temperature (Fahrenheit): 200
- Minimum Working Temperature (Fahrenheit): 0
- Package Quantity: 100
- PEX Type: PEX-A/PEX-B/PEX-C
- Turn: N/A
- Warranty: 1-year
Certifications
- CA Residents: Prop 65 Warning(s): No
- Complies with Federal Lead Guidelines: Yes
- Safety Listing: Not safety listed
Miscellaneous
- UNSPSC: 26121600
