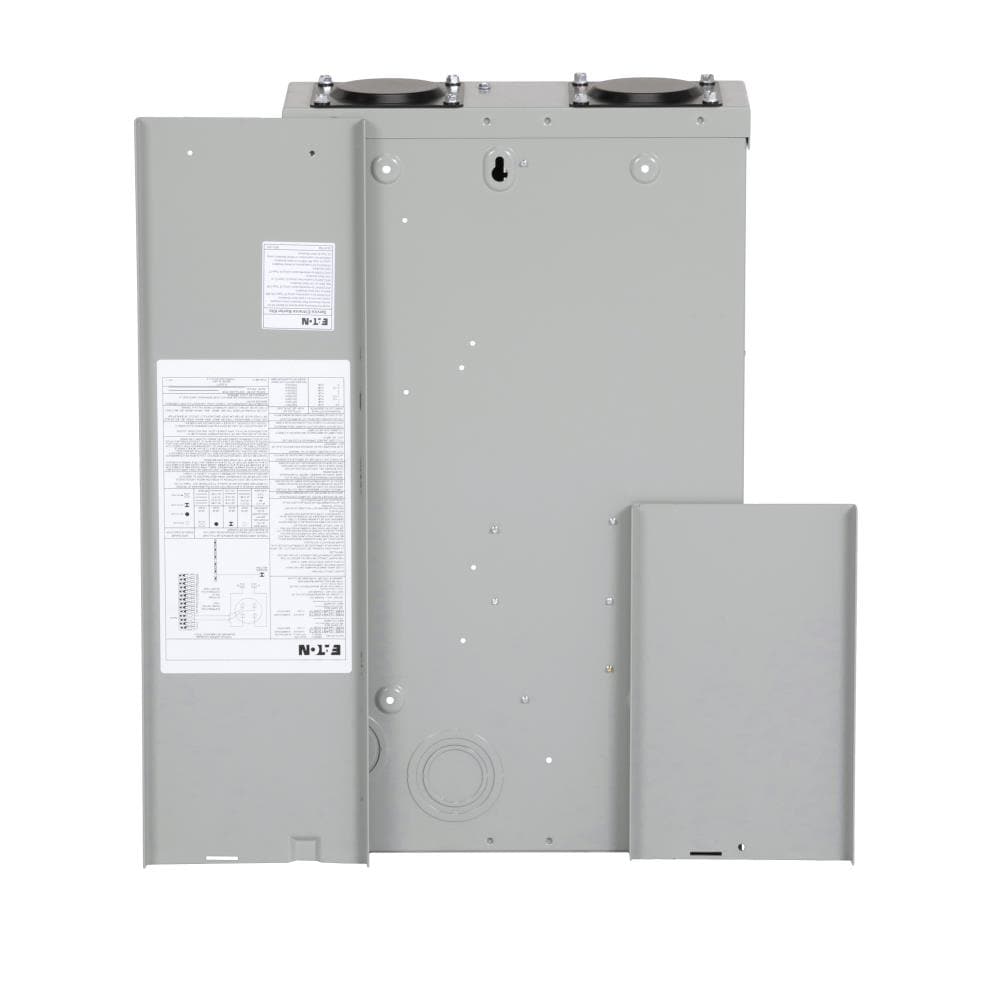

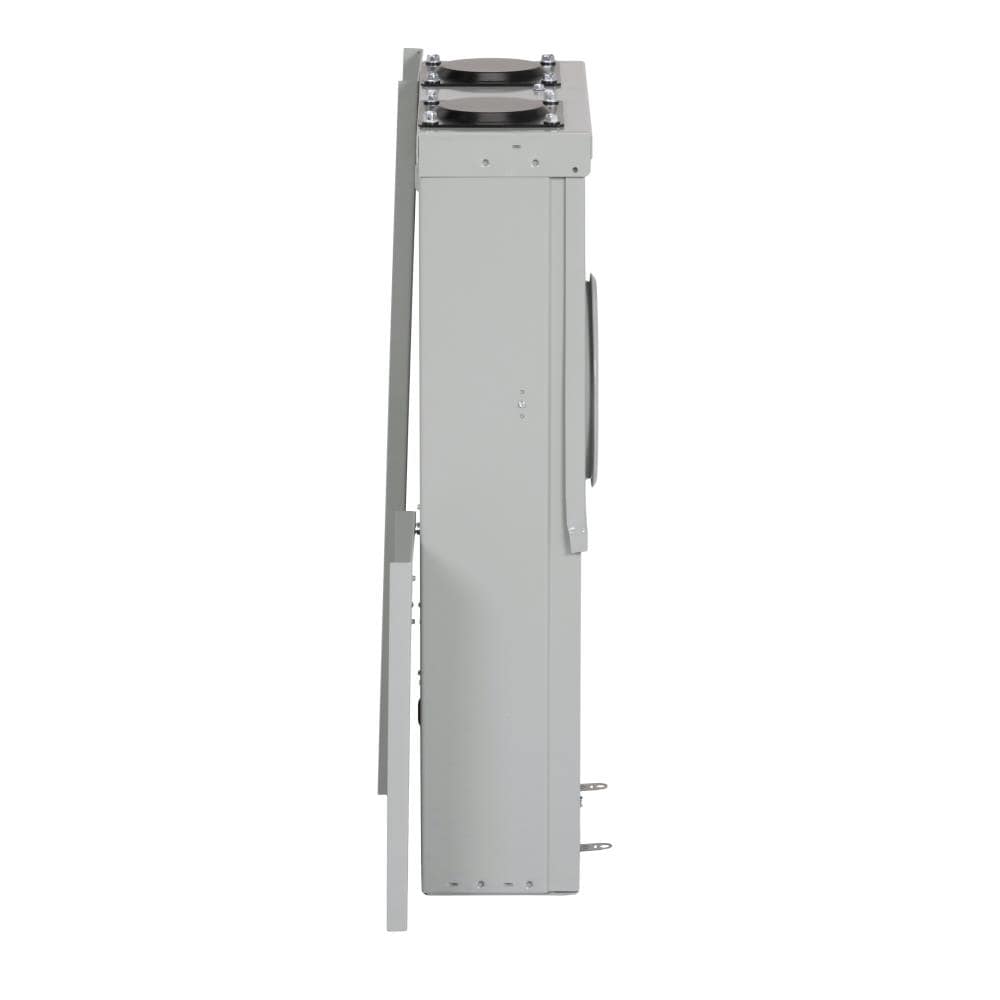

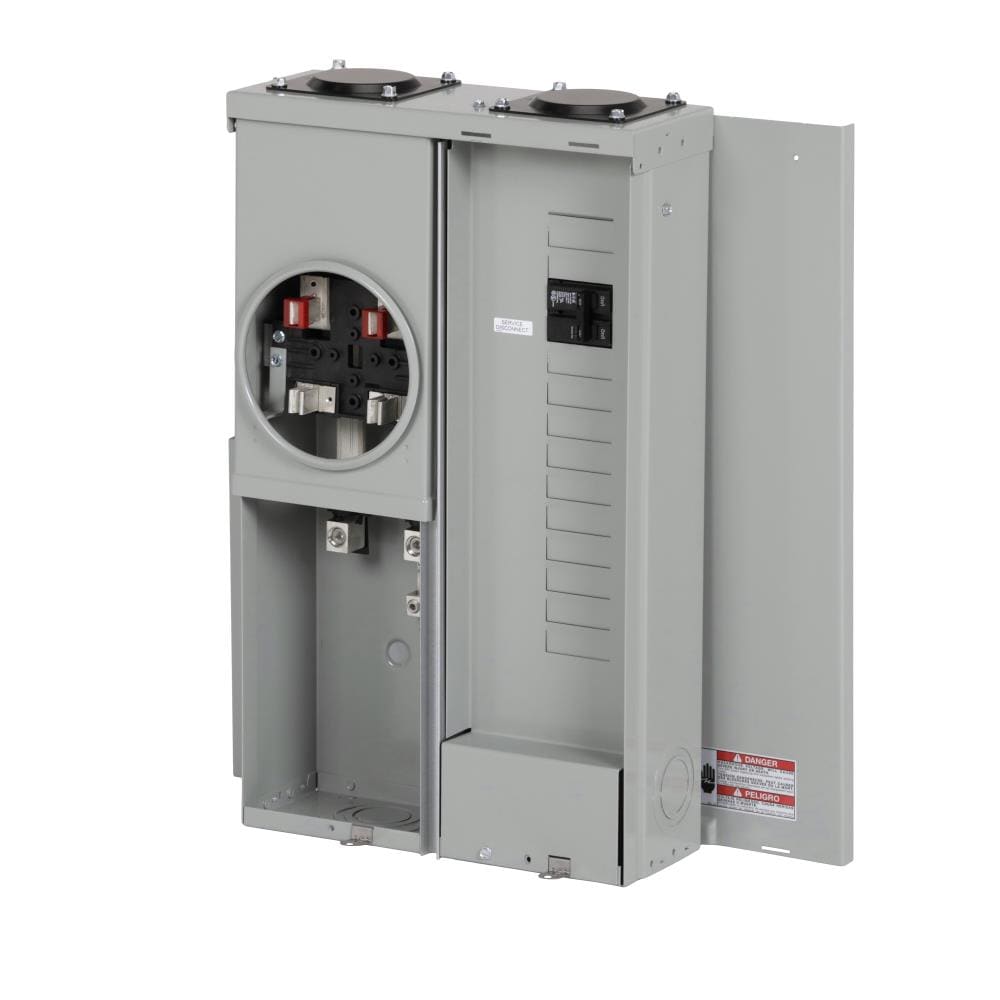

Eaton’s meter breakers combine a single meter socket and a main circuit breaker and/or loadcenter into one enclosure. Certain utilities will specify a meter breaker instead of a meter socket and loadcenter. The meter breaker is used where electricity enters a home or dwelling. The utility attaches a meter in the socket to measure power consumption. The loadcenter portion is used to distribute the power throughout the home using various circuits. Eaton offers a variety of designs to meet local utility specifications. UL listed.
Manufacturer Color/Finish: Gray
Series Name: Type BR
Type: Main breaker meter combo
Depth (Inches): 5.38
Height (Inches): 23.88
Width (Inches): 14.44
Amperage: 100
Buss Bar Construction: Aluminum
Circuits: 24
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: Yes
Mounting Type: Surface
Number of Spaces: 12
Orientation: Side-by-side
Paintable: Yes
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Service entrance
Use Location: Outdoor
Value Pack: No
Brand/Model Compatibility: Fits most
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 10-year limited
UNSPSC: 39121100
