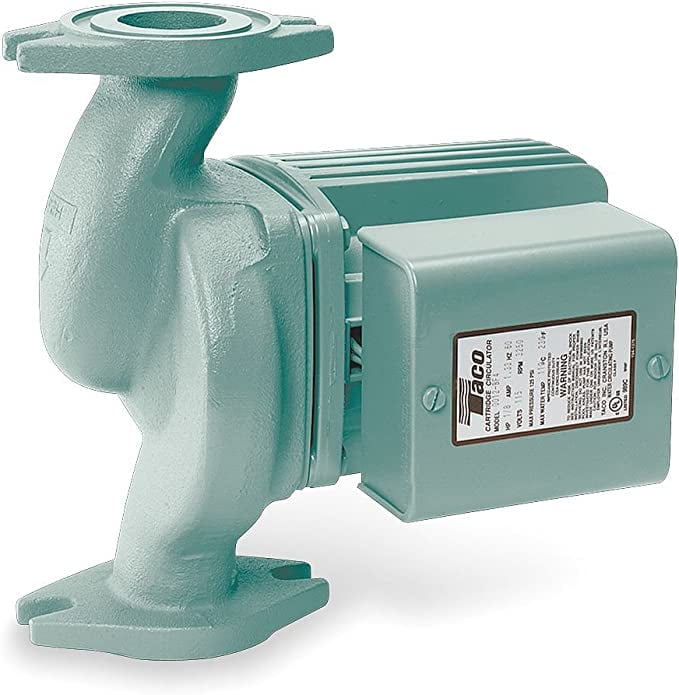

The Taco 0010 is designed for a wide range of large residential or light commercial water circulating applications. Typical uses include hydronic heating, radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and potable hot water systems. The 0010 is designed for all open-loop, fresh water systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs. Features: standard high capacity output-compact design, quiet and efficient operation, direct drive – low power consumption, unique replaceable cartridge design – field serviceable, self lubricating, no mechanical seal, unmatched reliability, maintenance free, universal flange to flange dimensions, and cast iron construction.
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged Voltage Rating: 115 V; Amperage Rating: 1.10 Hz Rating: 60; Ph: 1 RPM: 3250; HP: 1/8 Cast iron, flanged Motor Type: Permanent Split Capacitor Impedance Protected. Maximum Flow: 32 GPM. Maximum Head: 10′. Minimum Fluid Temperature: 40°F (4°C). Maximum Fluid Temperature: 230°F (110°C). Maximum Working Pressure: 150 PSI. Connection Sizes: 3/4″, 1″, 1-1/4″, and 1-1/2″ Flanged. Dimensions: 7-1/4″ x 5-5/16″ x 3-3/16″ x 3-15/16″ x 5-3/8″ x 6-3/8″.
