QO circuit breaker 60 Amp, 2 pole plug on, ground fault circuit interrupter. QWIK-GARD overload and short circuit protection. Suitable for feeding 240 VAC and 208 VAC 2 wire loads only. Does not contain load neutral connection. 10,000 Amp interrupting rating maximum. For use in QO load centers or NQOD panel boards.

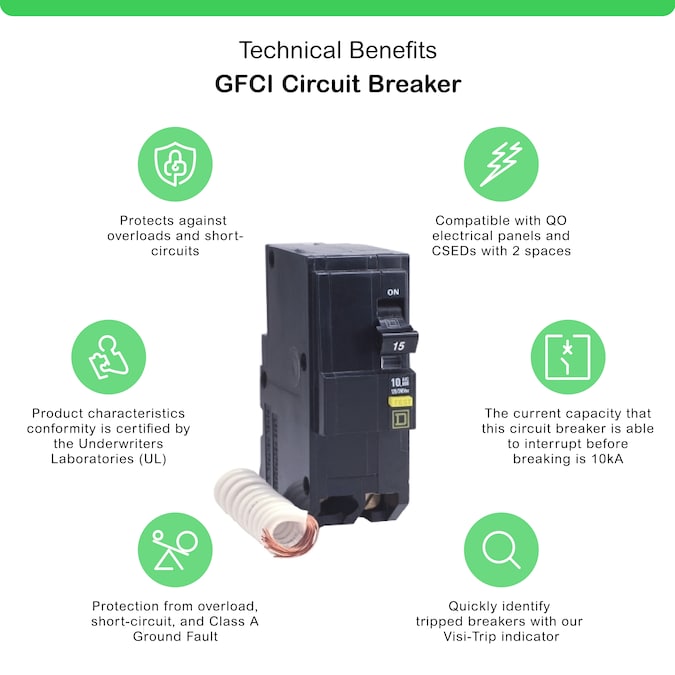

- Protection from overload, short-circuit, and Class A Ground Fault
- Protects from potential shock hazards in wet locations
- Compatible with Square D QO electrical panels, CSED with 2 spaces
- Use for protection of entire branch circuits where damp location shock hazards may exist
- Double-pole with a common trip
- Thermal-magnetic tripping mechanism
- Visi-trip indicator
- 120/240 VAC
- 10,000 AIR
General
- Series Name: QO
- Type: GFCI
Dimensions
- Power Capacity: 60-amp

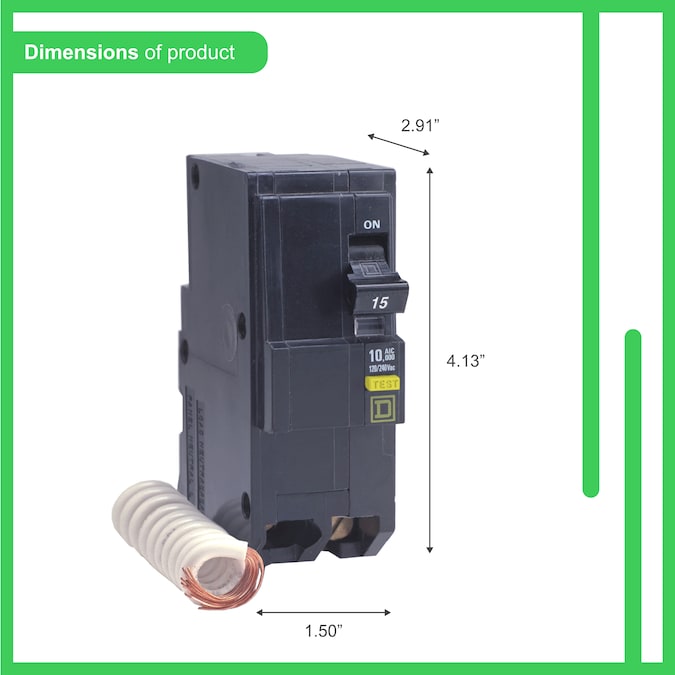

- Width Measurement: 1-1/2-in
Features
- Circuit Breaker Voltage: 120/240
- Ground Fault Protection: Self test
- Interrupting Amp Listing (Amps): 10000
- Number of Poles: 2
- Phase: Single phase (120/240)
- Plug-On Neutral: No
- Surge Protection: No
- Warranty: 1-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121600
