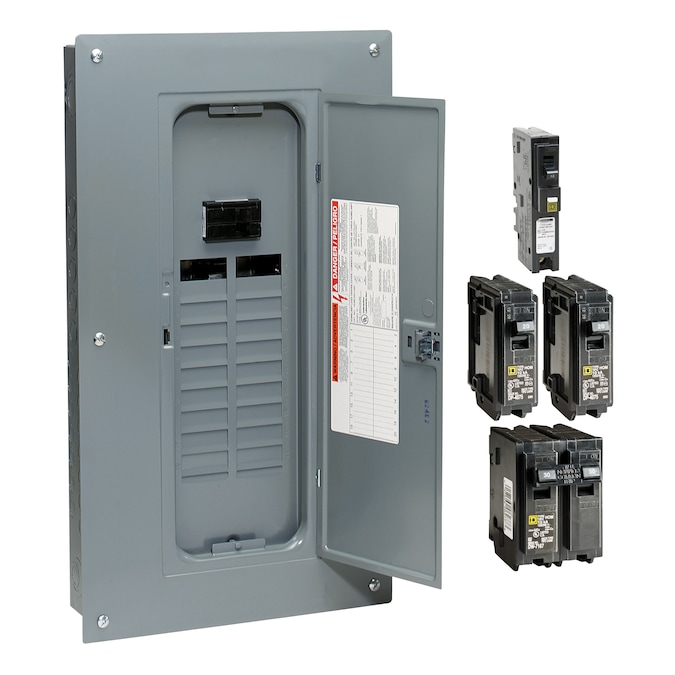

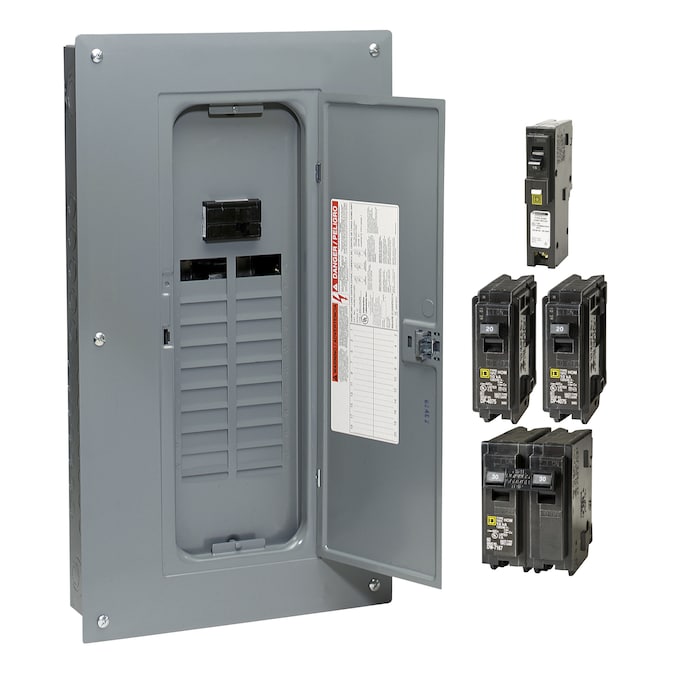

The Square D by Schneider Electric Homeline Value Pack 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Combination Arc Fault breakers and flush/surface cover included
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
General
- Manufacturer Color/Finish: Gray
- Series Name: N/A
- Type: Main breaker

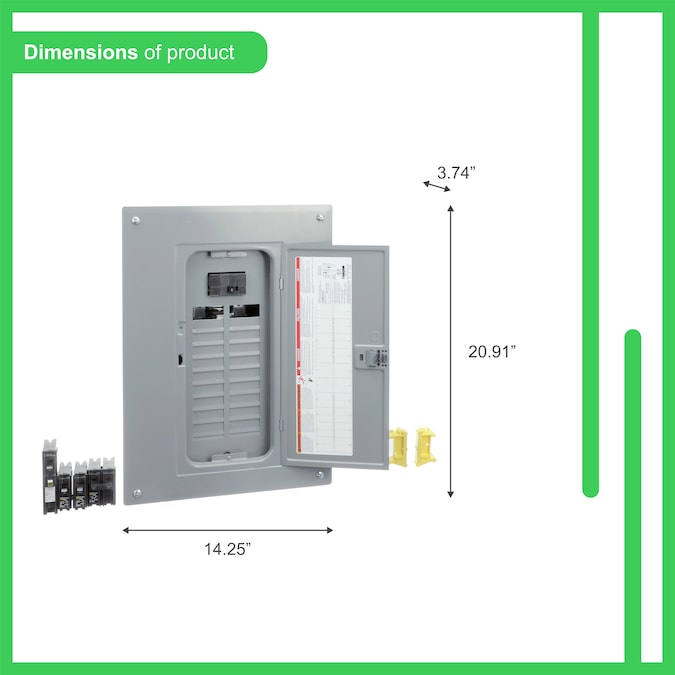

Dimensions
- Depth (Inches): 3.75
- Height (Inches): 20.92
- Width (Inches): 14.25
Features
- Amperage: 100
- Buss Bar Construction: Aluminum
- Circuits: 40
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Combination
- Number of Spaces: 20
- Orientation: Over/Under
- Paintable: No
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: Yes
- Value Pack Contents: Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breaker, (1) HOM115PCAFI Homeline 15 Amp single-pole plug-on neutral CAFI circuit breaker and a combination flush/surface indoor cover
- Warranty: 18-month limited
Compatibility
- Brand/Model Compatibility: Square D Homeline Brand Only
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
