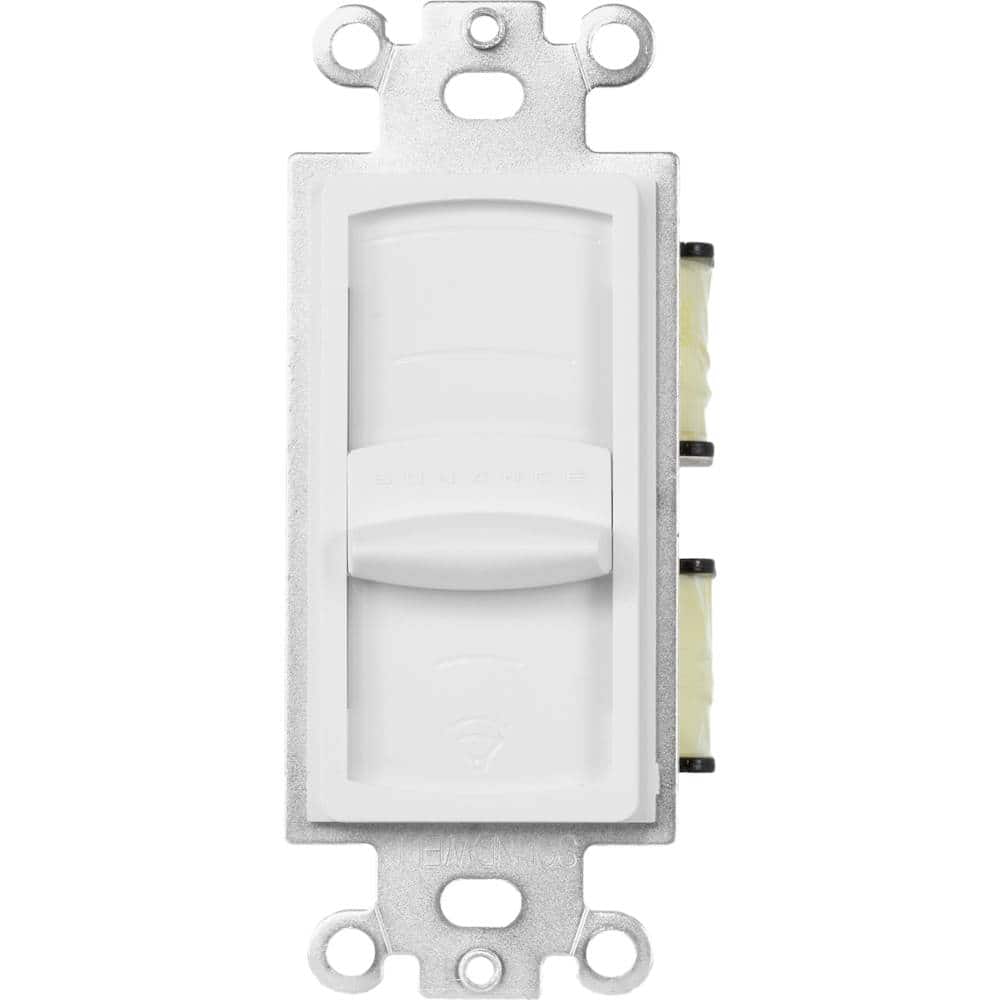

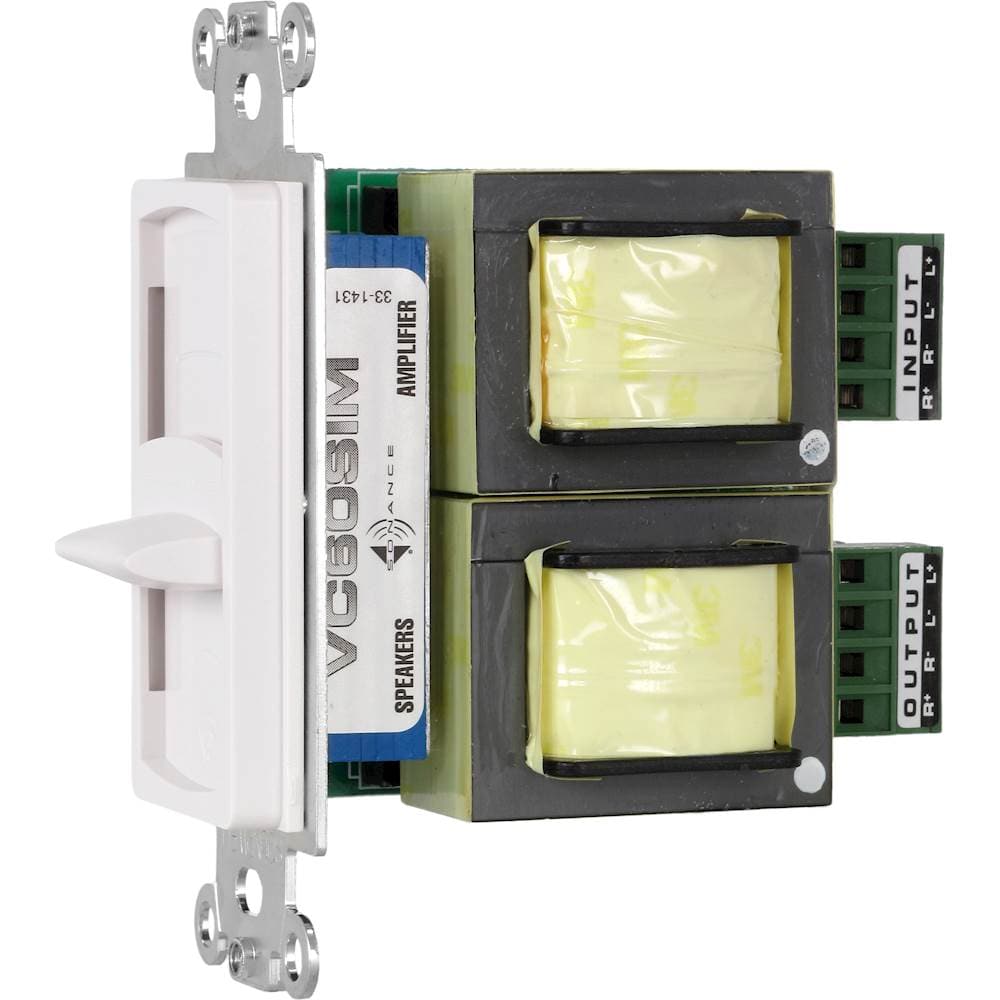

Manage sound with this Sonance impedance-matching volume control. Adjustable impedance jumpers match up to eight pairs of speakers to a single amplifier, and 12 slider-controlled positions let you set the volume at just the right level. This Sonance impedance-matching volume control has a Decora wall plate to blend into interiors.
Decora style slider volume control
Makes it easy to adjust the listening level with the silent switch action.
20Hz-20kHz frequency response
For faithful sound reproduction.
1x, 2x, 4x and 8x impedance magnification
Efficiently conducts power.
Max 60W per channel RMS power handling
For robust audio output.
12-step control
With 42 dB maximum attenuation for controlled sound.
Quick-disconnect screw terminal
Accommodates up to 14-gauge wire.
UL-listed
To comply with most local building codes.
Specifications
Key Specs
- Color: White
General
- Brand: Sonance
- Model Number: 92161
- Product Name: VC60SIM – Impedance-Matching Slider Volume Control (Each)
Features
- Control Type: Slider
- Indoor Or Outdoor Use: Indoor
Audio
- Mono/Stereo: Stereo
- Maximum Power Handling (per channel): 60 watts
Audio
- Impedance Match Setting: 1x, 2x, 4x, 8x
Dimensions
- Product Height: 4 inches
- Product Width: 1.5 inches
- Product Depth: 3 inches
- Product Weight: 2 pounds
Warranty
- Warranty – Parts: 5 years
- Warranty – Labor: 5 years
Specifications
- UPC: 041093921612
