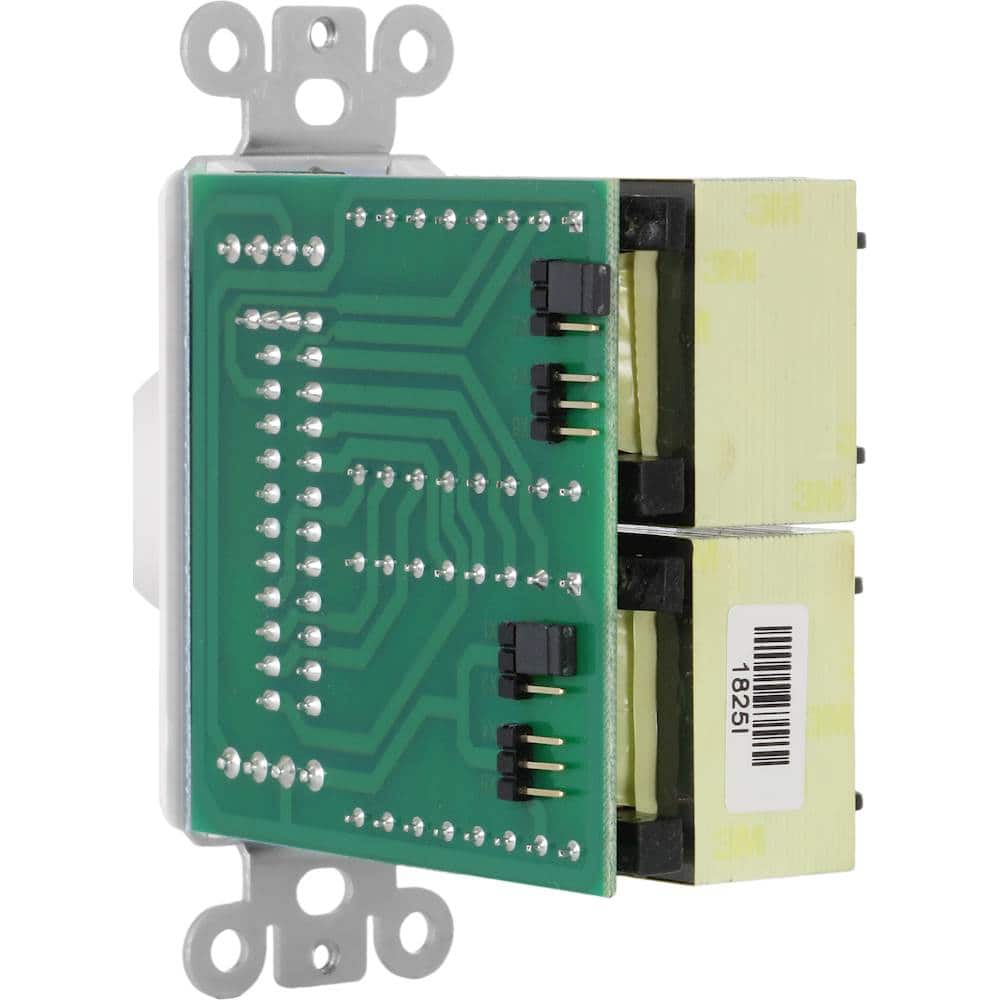

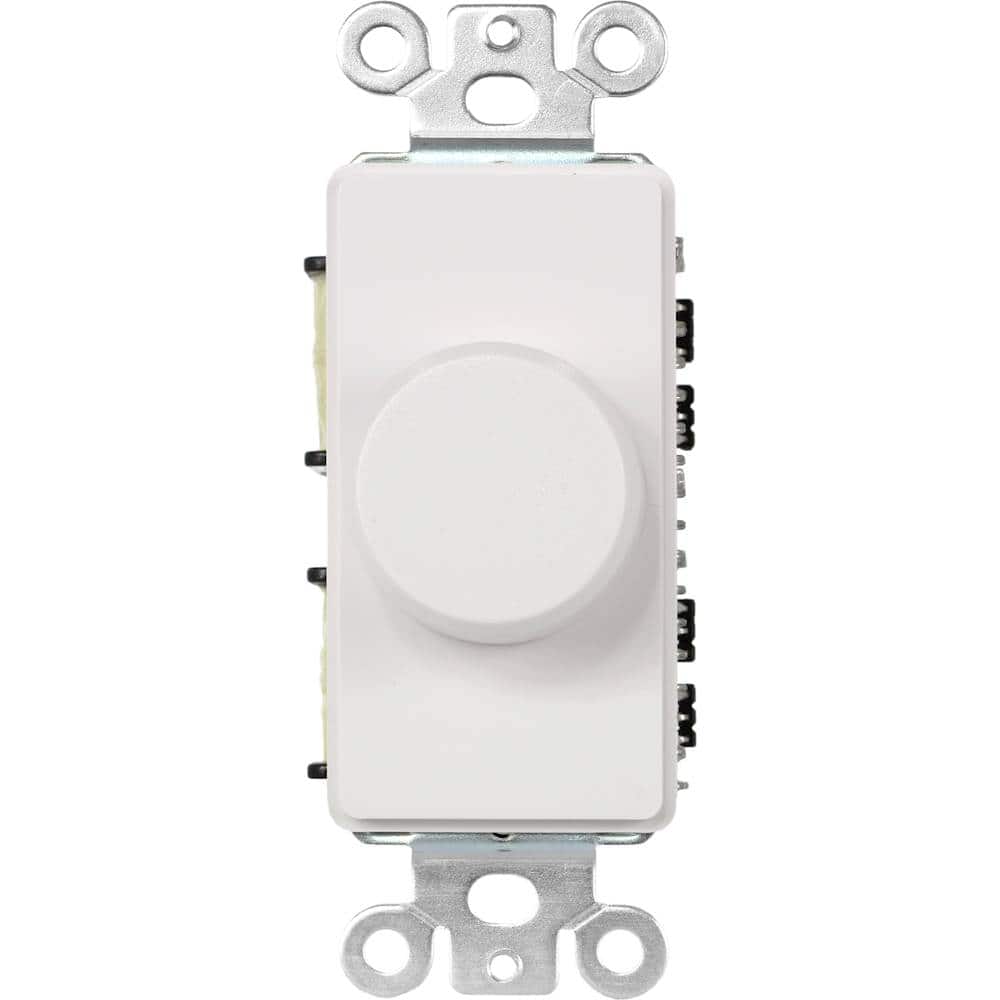

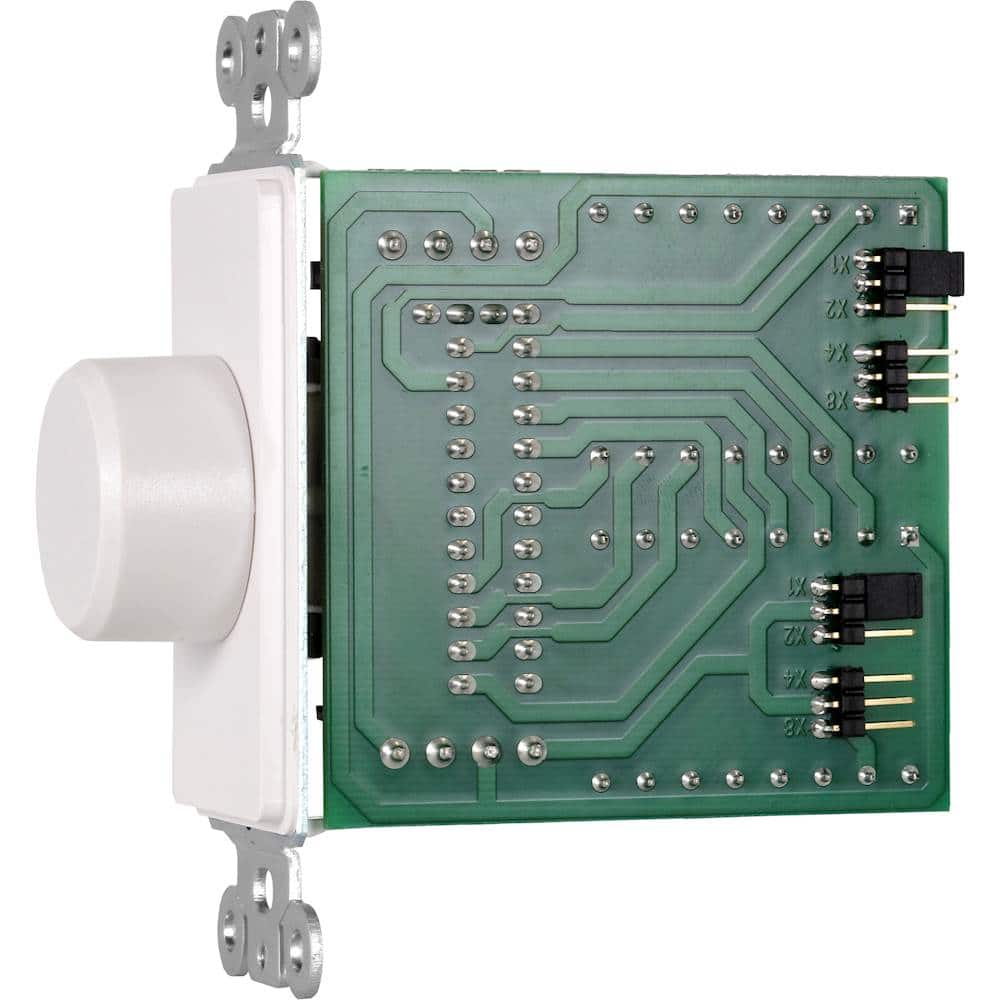

Customize your speaker setup with this Sonance impedance-matching volume control. Fully adjustable jumpers let you connect your amplifier to as many as eight sets of 8-ohm speakers, and soft-touch action gives you precision control. Each Sonance impedance-matching volume control comes with a convenient Decora wall plate to give it a finished look.
Decora style rotary volume control
Makes it easy to adjust the listening level.
20Hz-20kHz frequency response
For faithful sound reproduction.
1x, 2x, 4x and 8x impedance magnification
Efficiently conducts power.
Msx 60W per channel RMS power handling
For robust audio.
12-step control
With 42 dB maximum attenuation for controlled sound.
Quick-disconnect screw terminal
Accommodates up to 14-gauge wire.
UL-listed and CE approved
To comply with most local building codes.
Specifications
Key Specs
- Color: White
General
- Brand: Sonance
- Model Number: VC60RIM
- Product Name: VC60RIM – 60W Impedance Matching Volume Control In-wall Rotary (Each)
Features
- Control Type: Rotary
- Indoor Or Outdoor Use: Indoor
Audio
- Mono/Stereo: Stereo
- Maximum Power Handling (per channel): 60 watts
Audio
- Impedance Match Setting: 1x, 2x, 4x, 8x
Dimensions
- Product Height: 4 inches
- Product Width: 1.5 inches
- Product Depth: 3 inches
- Product Weight: 2 pounds
Warranty
- Warranty – Parts: 5 years
- Warranty – Labor: 5 years
Specifications
- UPC: 041093921582
