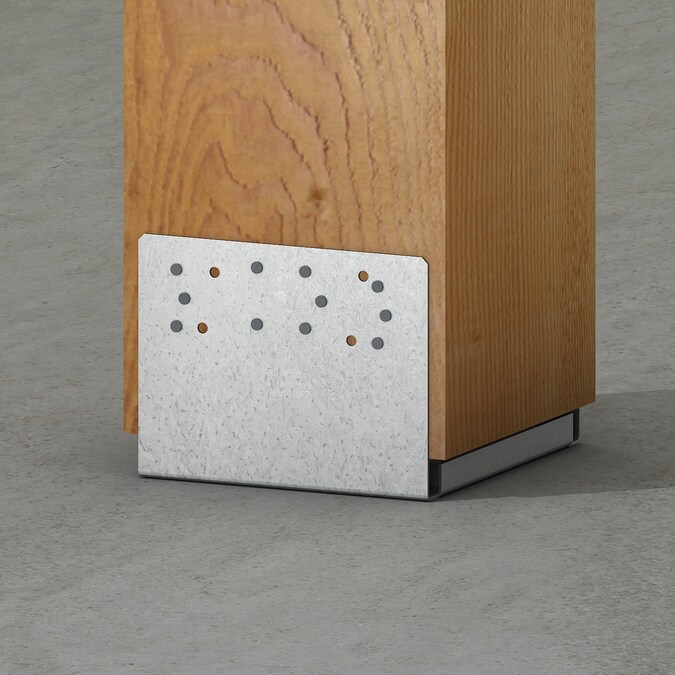

The Simpson Strong-Tie ABU is designed to attach wooden posts to existing concrete in high capacity applications. The built-in 1-in standoff of this adjustable post base helps to prevent rot at the end of the post. The ABU has a slotted anchor hole in the base for adjustability and attaches to the post with nails, Strong-Drive SD Connector screws or bolts. This versatile post base makes a cost-effective option for securing a post to the foundation, with a design built for maximum uplift performance.
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1-in standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading

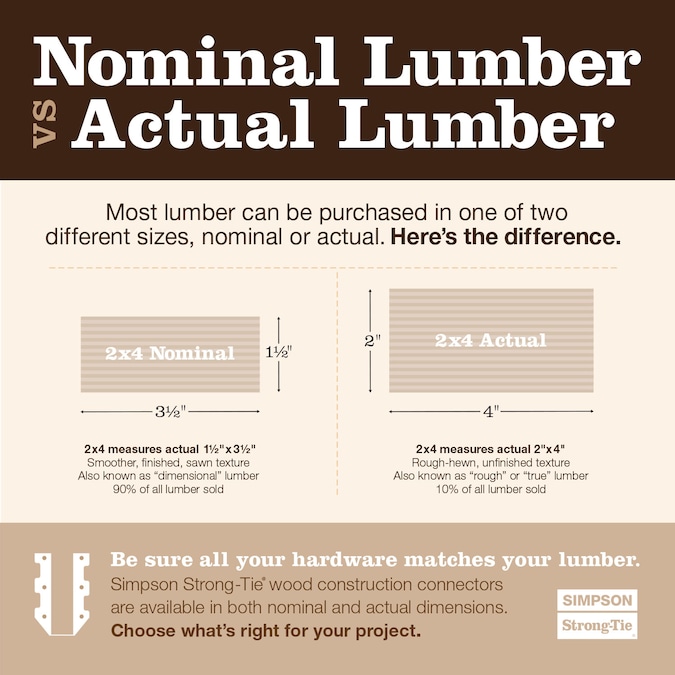

- Nominal post size: 10×10
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

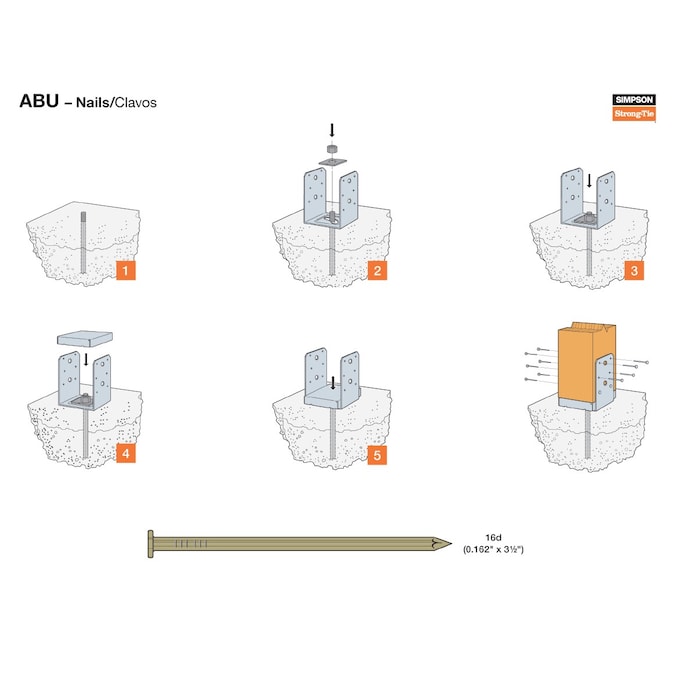

- Install with 0.162-in x 3-1/2-in nails
General
- Collection Name: N/A
- Finish: ZMAX
- Manufacturer Color/Finish: ZMAX Galvanized, G185
- Series Name: ABU
- Type: Base
Dimensions
- Actual Depth (Inches): 9.202
- Actual Weight (lbs.): 10.915
- Actual Width (Inches): 9.702
- Common Measurement (T x W): 10-in x 10-in
Features
- Contact Type Allowed: N/A
- Gauge: 14
- Material: Steel
- Materials Connected: Wood to concrete (retrofit)
- Nails Required: 16D
- Package Quantity: 1
- Stainable/Paintable: No
- Warranty: None
Certifications
- CA Residents: Prop 65 Warning(s): No
Miscellaneous
- UNSPSC: 30102900
